SKU: 1942-264

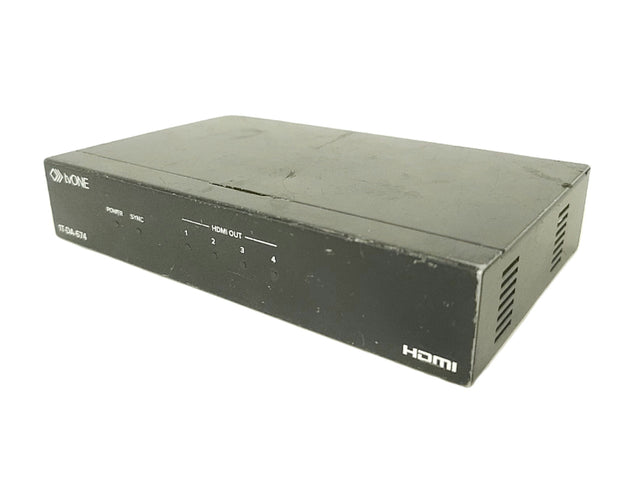

TVone 1T-DA-674 HDMI Distribution Amplifier

$50.00

Items Included

1 x TV One 1T-DA-674 HDMI Distribution Amplifier
1 x 5 VDC Power Adapter
4 x Rubber Feet
1 x User Manual

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The TV One 1T-DA-674 is a professional 1x4 HDMI distribution amplifier designed to distribute a single HDMI source to four independent HDMI displays without signal degradation. Compliant with HDMI 1.4, HDCP 1.1, and DVI 1.0 (using optional adapters), it supports 3D video, Deep Color (10- and 12-bit), and resolutions up to 4096 x 2160 @ 24 Hz or 3840 x 2160 @ 30 Hz. With a video bandwidth of 300 MHz (9 Gbps), the amplifier features built-in signal amplification and equalization for reliable long-distance transmission. Automatic EDID detection ensures optimal compatibility with connected displays, while cascading capability allows multiple distribution amplifiers to be linked for expanded installations. Read more

Features

1 HDMI input to 4 independent HDMI outputs
HDMI 1.4, HDCP 1.1, and DVI 1.0 compliant
Supports 3D video formats (Frame Packing and Side-by-Side)
Supports 10-bit and 12-bit Deep Color
Supports resolutions up to 4K (4096 x 2160 @ 24 Hz) and UHD (3840 x 2160 @ 30 Hz)
Built-in signal amplification and equalization for longer cable runs
Automatic monitor EDID detection
Cascade multiple units for larger distribution systems.

Business Financing Options Avaiable

View Available Financing

Features

1 HDMI input to 4 independent HDMI outputs
HDMI 1.4, HDCP 1.1, and DVI 1.0 compliant
Supports 3D video formats (Frame Packing and Side-by-Side)
Supports 10-bit and 12-bit Deep Color
Supports resolutions up to 4K (4096 x 2160 @ 24 Hz) and UHD (3840 x 2160 @ 30 Hz)
Built-in signal amplification and equalization for longer cable runs
Automatic monitor EDID detection
Cascade multiple units for larger distribution systems.

No products currently in stock

About the TVone 1T-DA-674 HDMI Distribution Amplifier

The tvONE 1T-DA-674 is a professional-grade 1x4 HDMI distribution amplifier (commonly referred to as a splitter) designed to take a single HDMI video source and simultaneously duplicate it to four separate displays without any signal loss or degradation. It is frequently deployed in digital signage applications, retail TV showrooms, and commercial sports bars where a single broadcast feed needs to be perfectly synchronized across a bank of monitors.

Because handshaking issues are notorious when splitting digital HDMI signals to multiple mismatched TVs, the 1T-DA-674 includes built-in EDID (Extended Display Identification Data) management. This allows an AV technician to dictate exactly which resolution and audio capabilities the amplifier requests from the source device, ensuring that a single older, low-resolution TV on the network doesn't accidentally force the source to downgrade the image quality for the rest of the displays. It fully supports HDMI 1.4a specifications, allowing it to pass 3D content, deep color, and 4K UHD signals.

Key Features

1 HDMI input to 4 independent HDMI outputs
HDMI 1.4, HDCP 1.1, and DVI 1.0 compliant
Supports 3D video formats (Frame Packing and Side-by-Side)
Supports 10-bit and 12-bit Deep Color
Supports resolutions up to 4K (4096 x 2160 @ 24 Hz) and UHD (3840 x 2160 @ 30 Hz)
Built-in signal amplification and equalization for longer cable runs
Automatic monitor EDID detection
Cascade multiple units for larger distribution systems.

Already own this item and want to sell it?

Click here to sell your item

TVone 1T-DA-674 HDMI Distribution Amplifier Specs

Device Type

1x4 HDMI Distribution Amplifier

HDMI Revision

HDMI 1.4a (Supports 3D and Deep Color)

Maximum Resolution

4K x 2K (3840x2160 @ 30Hz) and 1080p @ 60Hz

HDCP Compliance

HDCP 1.4

Video Inputs

1x HDMI Type A

Video Outputs

4x HDMI Type A

Audio Support

Dolby TrueHD, DTS-HD Master Audio, and LPCM 7.1

EDID Management

Internal automatic or manual EDID control capabilities

Signal Equalization

Built-in cable equalization to maintain signal integrity

Power Requirement

5V DC (Features a locking power connector to prevent accidental unplugs)

Key Features

1 HDMI input to 4 independent HDMI outputs
HDMI 1.4, HDCP 1.1, and DVI 1.0 compliant
Supports 3D video formats (Frame Packing and Side-by-Side)
Supports 10-bit and 12-bit Deep Color
Supports resolutions up to 4K (4096 x 2160 @ 24 Hz) and UHD (3840 x 2160 @ 30 Hz)
Built-in signal amplification and equalization for longer cable runs
Automatic monitor EDID detection
Cascade multiple units for larger distribution systems.

Already own this item and want to sell it?

Click here to sell your item
