SKU: 1942-251

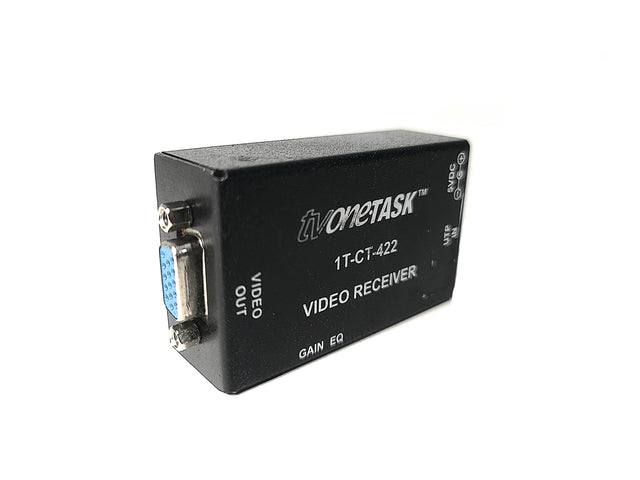

tvONE TASK 1T-CT-422 Video Receiver

$50.00

Items Included

1 x tvONE TASK 1T-CT-422 Video Receiver
1 x 5V DC Power Adapter
1 x User Manual

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The tvONE TASK 1T-CT-422 is a compact CAT5 RGBHV video receiver designed to receive VGA/RGBHV video signals transmitted over a single Cat5, Cat5e, or Cat6 cable from the compatible tvONE 1T-CT-421 transmitter. Intended for professional AV installations, the receiver supports resolutions up to 1280 x 1024 at 60 Hz over cable runs of up to 590 ft (180 m). It features adjustable gain and equalization controls, allowing installers to compensate for signal loss and maintain sharp image quality over long distances. Its lightweight, small-footprint design makes it ideal for conference rooms, classrooms, digital signage, control rooms, and other commercial VGA extension applications. Read more

Features

Receives RGBHV (VGA) signals over a single Cat5/Cat5e/Cat6 cable.
Compatible with the tvONE 1T-CT-421 transmitter.
Supports resolutions up to 1280 x 1024 @ 60 Hz.
Maximum transmission distance of 590 ft (180 m).
Adjustable gain and equalization controls.
Compact, lightweight enclosure for discreet installation.
Locking 5V DC power connector for secure operation.

Business Financing Options Avaiable

View Available Financing

Features

Receives RGBHV (VGA) signals over a single Cat5/Cat5e/Cat6 cable.
Compatible with the tvONE 1T-CT-421 transmitter.
Supports resolutions up to 1280 x 1024 @ 60 Hz.
Maximum transmission distance of 590 ft (180 m).
Adjustable gain and equalization controls.
Compact, lightweight enclosure for discreet installation.
Locking 5V DC power connector for secure operation.

No products currently in stock

About the tvONE TASK 1T-CT-422 Video Receiver

The tvONE 1T-CT-422 (part of the TV One-Task series) is the receiver half of an active RGBHV (VGA) over Cat.5/Cat.5e extension system. It is designed to be paired with a compatible transmitter (like the 1T-CT-421) to push analog PC video over long distances using standard twisted-pair networking cable, eliminating the need to pull thick, rigid VGA cables through walls and conduits.

Because analog video signals naturally attenuate and lose high-frequency data over long cable runs, the 1T-CT-422 features manual adjustment dials. By tweaking the Gain and Equalization (EQ) settings on the box, an AV technician can compensate for the signal loss and restore the image's brightness and sharpness right at the display end. It also utilizes TV One-Task locking power connectors to prevent accidental power loss in permanent installations.

Key Features

Receives RGBHV (VGA) signals over a single Cat5/Cat5e/Cat6 cable.
Compatible with the tvONE 1T-CT-421 transmitter.
Supports resolutions up to 1280 x 1024 @ 60 Hz.
Maximum transmission distance of 590 ft (180 m).
Adjustable gain and equalization controls.
Compact, lightweight enclosure for discreet installation.
Locking 5V DC power connector for secure operation.
