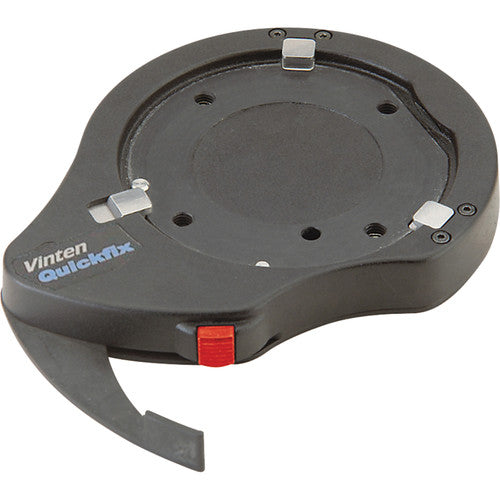

The Vinten 3490-3 Adaptor Heavy Duty QUICKFIX 4-Bolt Flat Base is a robust interface adapter designed to provide a secure and rapid connection between professional camera heads and a wide array of support equipment. This heavy-duty adapter facilitates the mounting of camera heads featuring a standard four-bolt flat base pattern onto tripods, pedestals, or other support structures equipped with Vinten's QUICKFIX rapid-release mechanism. The adapter is engineered with durability and speed in mind, featuring a precision-machined body from high-strength aluminum or steel that ensures a perfect, rigid fit, eliminating any flex or play that could compromise camera stability. The QUICKFIX system allows for swift engagement and disengagement via a lever-operated locking mechanism, significantly reducing setup and breakdown times in fast-paced production environments such as news gathering, sports broadcasting, and live events.

The design incorporates a flat upper plate with four threaded mounting holes arranged in the industry-standard pattern, allowing the camera head to be securely attached using the appropriate high-tensile screws. The lower section of the adapter houses the QUICKFIX receiver, a robust mechanism that securely clamps onto the matching QUICKFIX stud mounted on the support equipment. This mechanism typically involves a lever that, when engaged, draws a locking pin or cam into a secure, closed position, providing a positive lock that can withstand substantial torsional and lateral forces. A safety lock or secondary latch is often included to prevent accidental release, ensuring the camera package remains safely attached even if the primary lever is inadvertently bumped.

Built to support the weight of large broadcast camera packages, including lenses and teleprompters, the 3490-3 adapter is a critical link in the camera support chain. Its heavy-duty construction and reliable QUICKFIX mechanism provide camera operators with confidence in their setup's security while benefiting from the operational efficiency of a quick-release system. This adapter exemplifies the professional-grade interoperability required in broadcast and film production, enabling flexible and efficient equipment configurations without sacrificing safety or stability.
