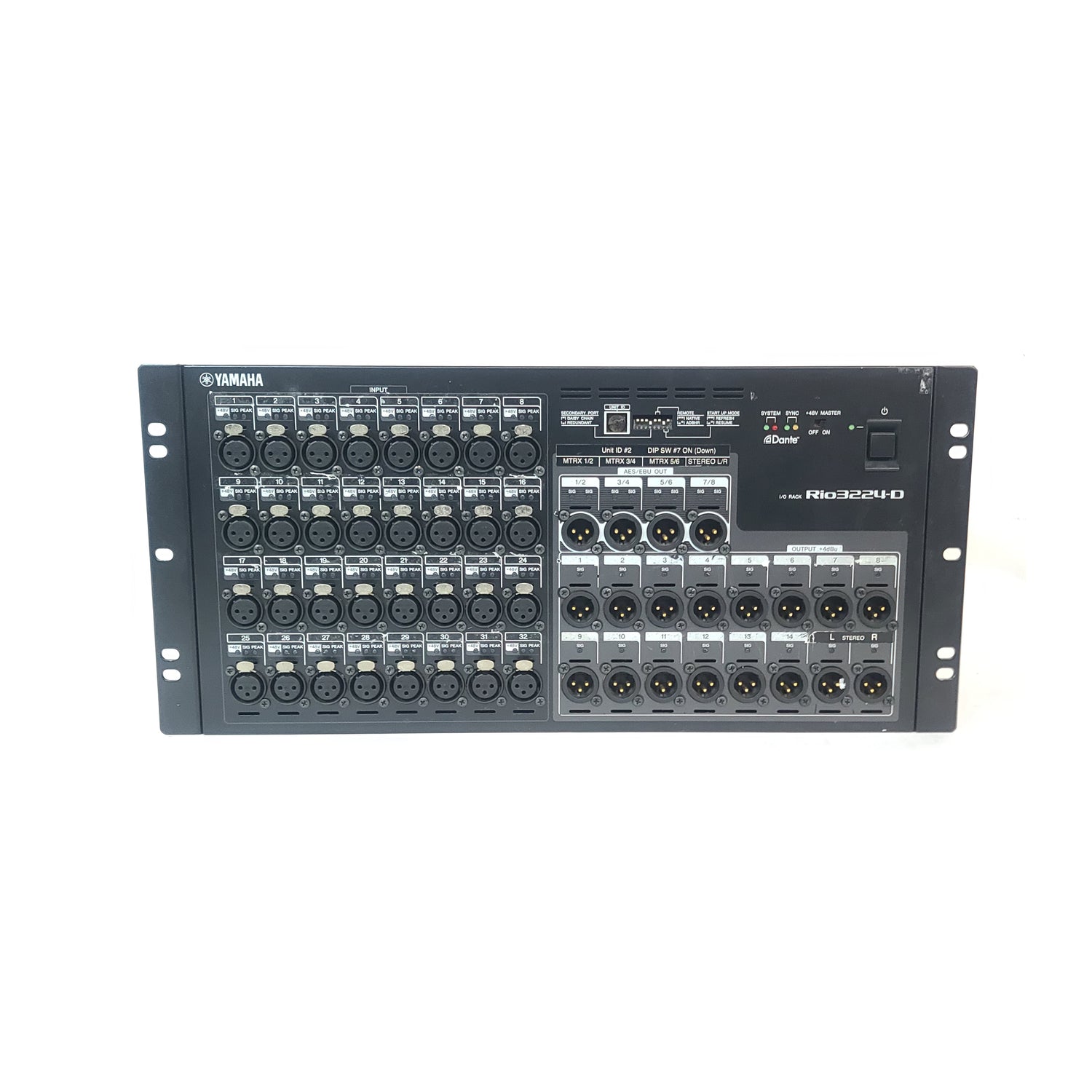

Yamaha 3224-D Rio Series 32x24 Dante I/O Stage Rack

$3,995.00 -

I/O rack unit that employs Dante network audio protocol for exceptional flexibility and freedom in setup and placement, while delivering natural, musical sound that brings out the full sonic potential of mixing consoles and other system components. The 5U size Rio3224-D provides 32 ins, 16 outs, and four AES/EBU outputs.

View Product Features
  • 32 analog inputs: 32 high-quality analog mic/line inputs.
  • 24 outputs: 16 analog line outputs plus 8 AES/EBU digital outputs.
  • Dante network protocol: Employs Dante for flexible system configuration and signal transmission.
  • Dual redundant power: Built-in dual power supplies for high reliability.
  • Gain Compensation function: Automatically adjusts digital gain to maintain consistent network levels when shared between multiple consoles.
  • Remote head amp control: Control input gain, phantom power, and high-pass filters remotely from compatible Yamaha consoles.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

Already own this item and want to sell it?

Click here to sell your item

About the Yamaha 3224-D Rio Series 32x24 Dante I/O Stage Rack

The Yamaha 3224-D Rio Series Stage Rack is a robust and versatile digital audio interface designed to serve as the remote input/output heart of a Dante-networked audio system for live sound, broadcast, and installed applications. This 32x24 rack-mountable unit provides 32 analog microphone/line inputs and 24 analog outputs, effectively translating the analog world of stage microphones and monitor feeds into a high-resolution, low-latency digital audio stream over a standard Ethernet network. It is engineered for reliability in demanding environments, featuring high-quality Yamaha preamps with adjustable gain on the inputs and comprehensive phantom power per channel, making it a trusted front-end for concerts, theatrical productions, and corporate events.

A core strength of the Rio 3224-D is its seamless integration within Yamaha's ecosystem of digital mixing consoles, such as the CL and QL series, while adhering to the open Dante networking standard. This dual compatibility allows it to function as a dedicated, stage-located remote rack for a Yamaha console, with automatic setup and control from the mixer's surface, or as a standalone Dante interface for use with any Dante-aware audio processor or recording system. Its redundant Dante network ports support audio failover, ensuring continuous operation even in the event of a single network switch failure, which is critical for live performances.

The unit's design prioritizes both sonic fidelity and operational resilience. Its rugged metal chassis is built to withstand the rigors of touring, while its intuitive local controls and clear metering allow for quick verification of signal presence and levels at the rack location. By placing high-channel-count analog I/O directly at the sound source and leveraging the scalability and simplicity of a Dante network, the Yamaha 3224-D Rio Stage Rack significantly reduces the need for long, cumbersome analog multicore cabling, streamlining system setup and providing a flexible, future-proof foundation for professional audio systems of all sizes.

Key Features

  • 32 analog inputs: 32 high-quality analog mic/line inputs.
  • 24 outputs: 16 analog line outputs plus 8 AES/EBU digital outputs.
  • Dante network protocol: Employs Dante for flexible system configuration and signal transmission.
  • Dual redundant power: Built-in dual power supplies for high reliability.
  • Gain Compensation function: Automatically adjusts digital gain to maintain consistent network levels when shared between multiple consoles.
  • Remote head amp control: Control input gain, phantom power, and high-pass filters remotely from compatible Yamaha consoles.

Yamaha 3224-D Rio Series 32x24 Dante I/O Stage Rack Specs

Hardware Profile
Brand
Yamaha
Product Series
Rio (Remote I/O)
Model Number
3224-D
I/O Configuration
32 Input / 24 Output Dante Stagebox
Analog Input Section
Input Channels
32
Input Type
Combined XLR Mic/Line with TRS Line
Preamplifiers
Yamaha D-PRE (Discrete Class-A)
Phantom Power
+48V per channel, globally switchable in banks
Gain Control
Adjustable remotely via console or locally via rear-panel switches
Analog Output Section
Output Channels
24
Output Connector
XLR (Balanced)
Output Type
Line Level
Network & Control
Primary Protocol
Dante (AoIP)
Network Ports
2 x Gigabit Ethernet (RJ-45) for Primary/Redundant Dante
Sample Rates
Up to 96 kHz
Control Integration
Direct compatibility with Yamaha CL/QL/RI series consoles
Power & Physical
Power Supply
Internal, Auto-switching 100-240V AC
Rack Units
3U
Construction
Heavy-gauge Steel Chassis
Dimensions
19" (W) x 5.25" (H) x 14.17" (D)

Key Features

  • 32 analog inputs: 32 high-quality analog mic/line inputs.
  • 24 outputs: 16 analog line outputs plus 8 AES/EBU digital outputs.
  • Dante network protocol: Employs Dante for flexible system configuration and signal transmission.
  • Dual redundant power: Built-in dual power supplies for high reliability.
  • Gain Compensation function: Automatically adjusts digital gain to maintain consistent network levels when shared between multiple consoles.
  • Remote head amp control: Control input gain, phantom power, and high-pass filters remotely from compatible Yamaha consoles.
