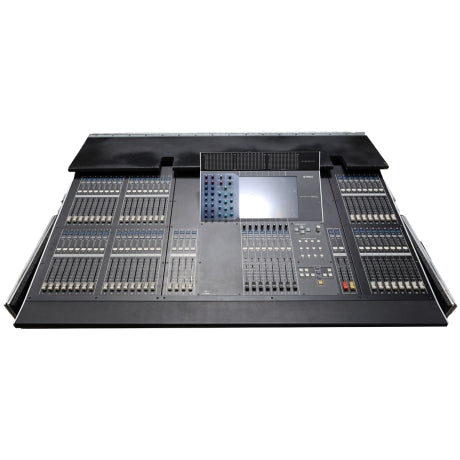

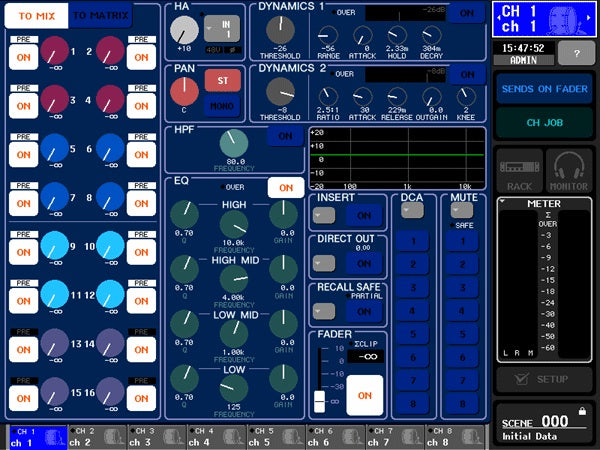

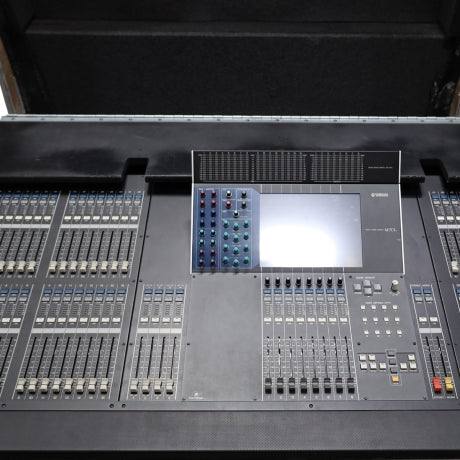

The Yamaha M7CL-48 is a digital audio mixing console that established itself as an industry standard for live sound reinforcement, broadcast, and theatrical applications. As a 48-channel console, it provides a comprehensive mixing surface with 48 input faders and a versatile processing architecture capable of handling complex productions. The console operates on Yamaha's proprietary digital engine, offering a robust set of features including 48 mono input channels, 8 stereo input channels, 8 mix buses, 8 matrix outputs, and 4 dedicated stereo outputs. Each channel is equipped with a 4-band parametric EQ, high-pass filter, dynamics processing with gates and compressors, and flexible delay. The M7CL's design centers on operational efficiency, combining the tactile feel of a traditional analog console with the power and recallability of a digital system, featuring motorized faders, a clear central LCD screen, and dedicated knobs for key parameters.

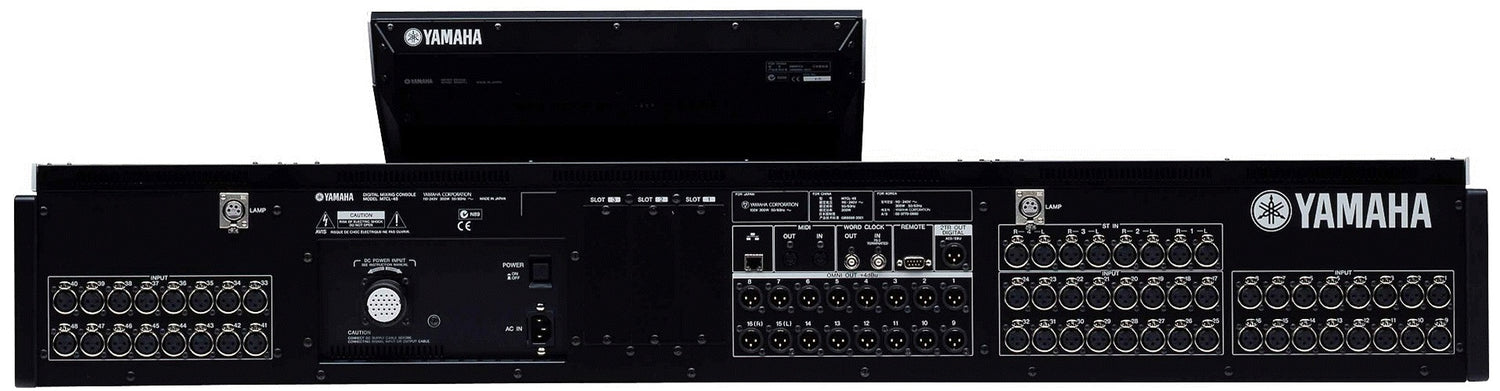

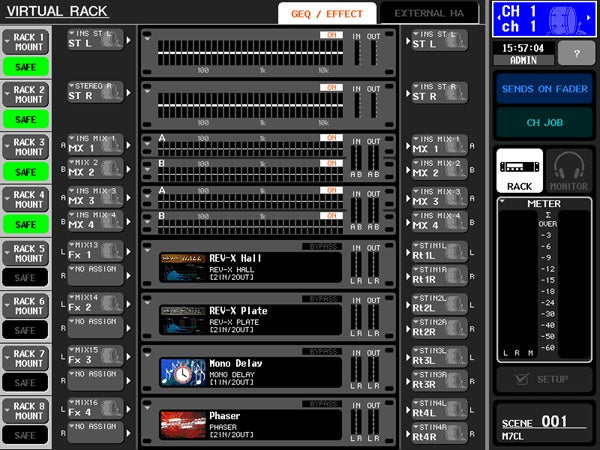

One of the defining characteristics of the M7CL-48 is its sophisticated signal routing and scene management. Engineers can store and recall complete console snapshots, including all settings, fader positions, and effects parameters, which is invaluable for multi-act shows or theatrical productions with rapid changeovers. The console includes high-quality internal effects processors with a library of reverbs, delays, and modulation effects. Its expandability is a major asset, featuring multiple card slots that allow for the integration of various I/O options, such as additional analog inputs and outputs, AES/EBU digital audio, and Ethernet-based audio networking via Yamaha's mLAN or later Dante protocols, enabling seamless integration with digital stage boxes and recording systems.

Built with a rugged steel chassis, the M7CL-48 is designed for the rigors of touring and fixed installation. Its user interface, while initially requiring familiarization, is logically organized, allowing skilled operators to navigate and adjust settings quickly during live events. The console's combination of ample channel count, extensive processing, reliable performance, and scalable I/O made it a preferred choice for front-of-house and monitor mixing positions in mid-to-large-scale venues for over a decade. It represents a significant milestone in the transition from analog to digital live sound consoles, offering a powerful and reliable tool that shaped the workflow of a generation of live sound engineers.
