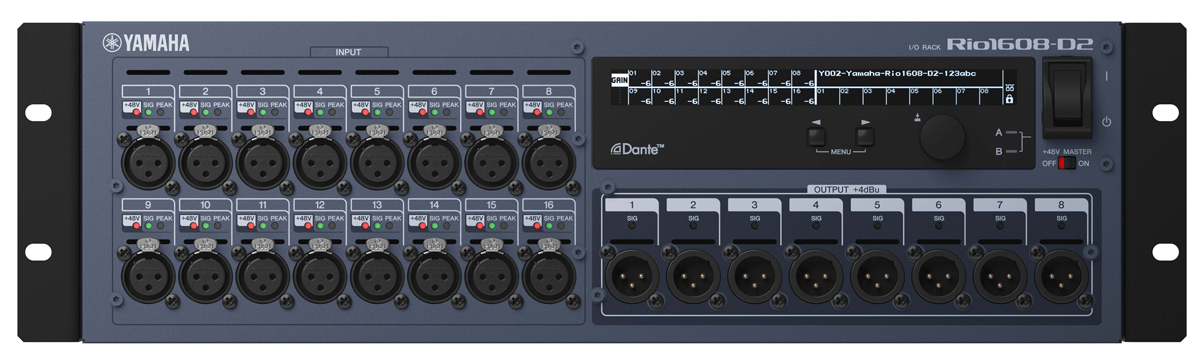

The Yamaha Rio1608-D2 is a high-density, rack-mountable audio input/output interface that serves as a critical remote stage box and expansion unit for Yamaha's flagship Rivage PM and QL series digital mixing consoles. This unit is a central component in Yamaha's Dante-based system architecture, providing 16 microphone/line inputs and 8 line outputs in a compact 1U form factor. Its primary function is to serve as a high-quality analog-to-digital and digital-to-analog bridge, converting analog signals from stage microphones and instruments into the Dante digital audio network and, conversely, delivering processed audio from the mixing console back to stage amplifiers or monitor systems. The "D2" designation indicates its integration with the second-generation Dante networking platform, offering enhanced channel count, lower latency, and improved synchronization features for robust, large-scale audio networking.

Engineered for transparent sound quality and reliability, the Rio1608-D2 features Yamaha's proprietary preamplifiers with adjustable gain (+10 dB to +60 dB) that can be remotely controlled from the connected mixing console, allowing sound engineers to make precise adjustments from FOH or monitor world without touching the stage box. Each input channel includes phantom power, a high-pass filter, and phase reverse, providing essential tools for microphone setup directly from the console's surface. The unit connects to the mixing system and other networked audio devices via a single Ethernet cable using the Audinate Dante protocol, which allows for the distribution of hundreds of channels of uncompressed, low-latency audio over a standard IP network, greatly simplifying system cabling and scalability.

The Rio1608-D2 is built for the demands of live sound and installed applications, featuring a rugged metal chassis, redundant power supply inputs, and dual Ethernet ports for Dante network redundancy (Dante Primary and Secondary). This ensures continued operation even in the event of a network switch failure, a critical feature for live events. Its integration into the Yamaha ecosystem is seamless, automatically being detected and configured by compatible consoles. By providing a high channel count in a minimal rack space with the flexibility and reliability of Dante networking, the Yamaha Rio1608-D2 enables sound engineers to build sophisticated, distributed audio systems with exceptional sonic integrity and operational resilience.
