The Remote Control Panel (RCP-120) enables you control of the FSN multi-format switcher AUX outputs from a remote location. The RCP-120 allows you to remotely control routing sources to the FSN AUX outputs. This means you can select sources for monitoring, perform adjustments or record without interfering with the main production workflow managed by the FSN-150 control panel. The RCP-120 is fully integrated with the FSN system.

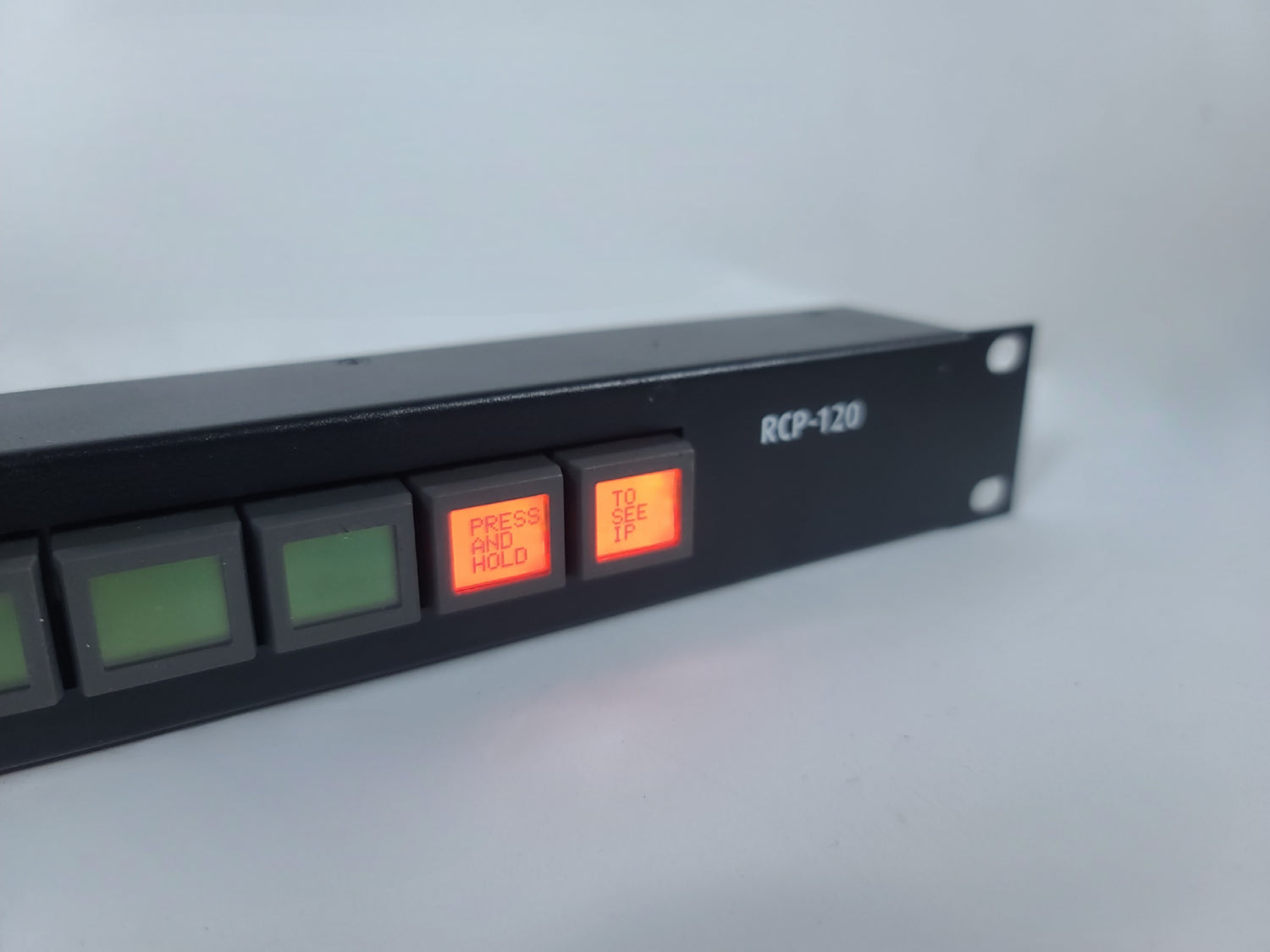

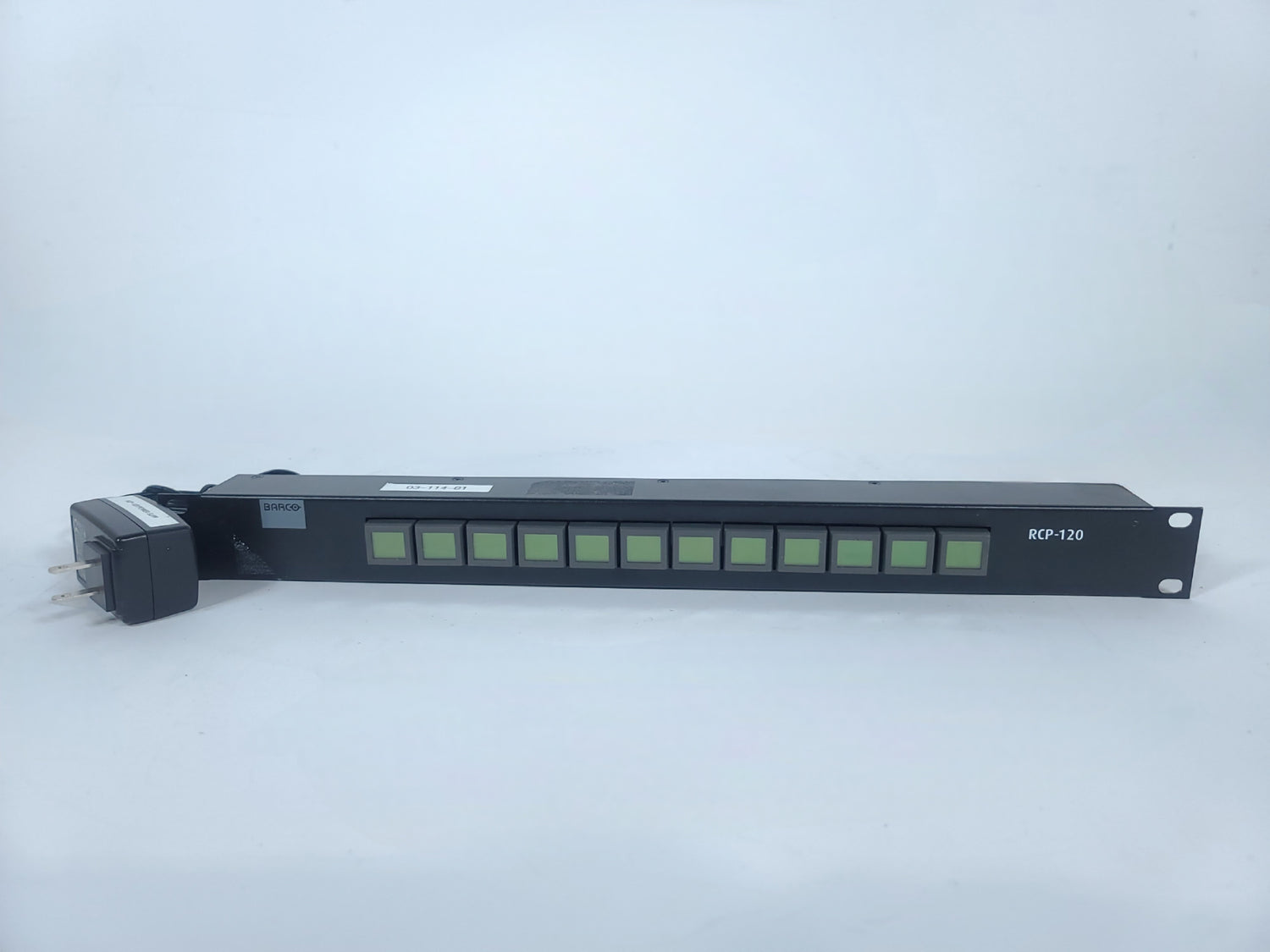

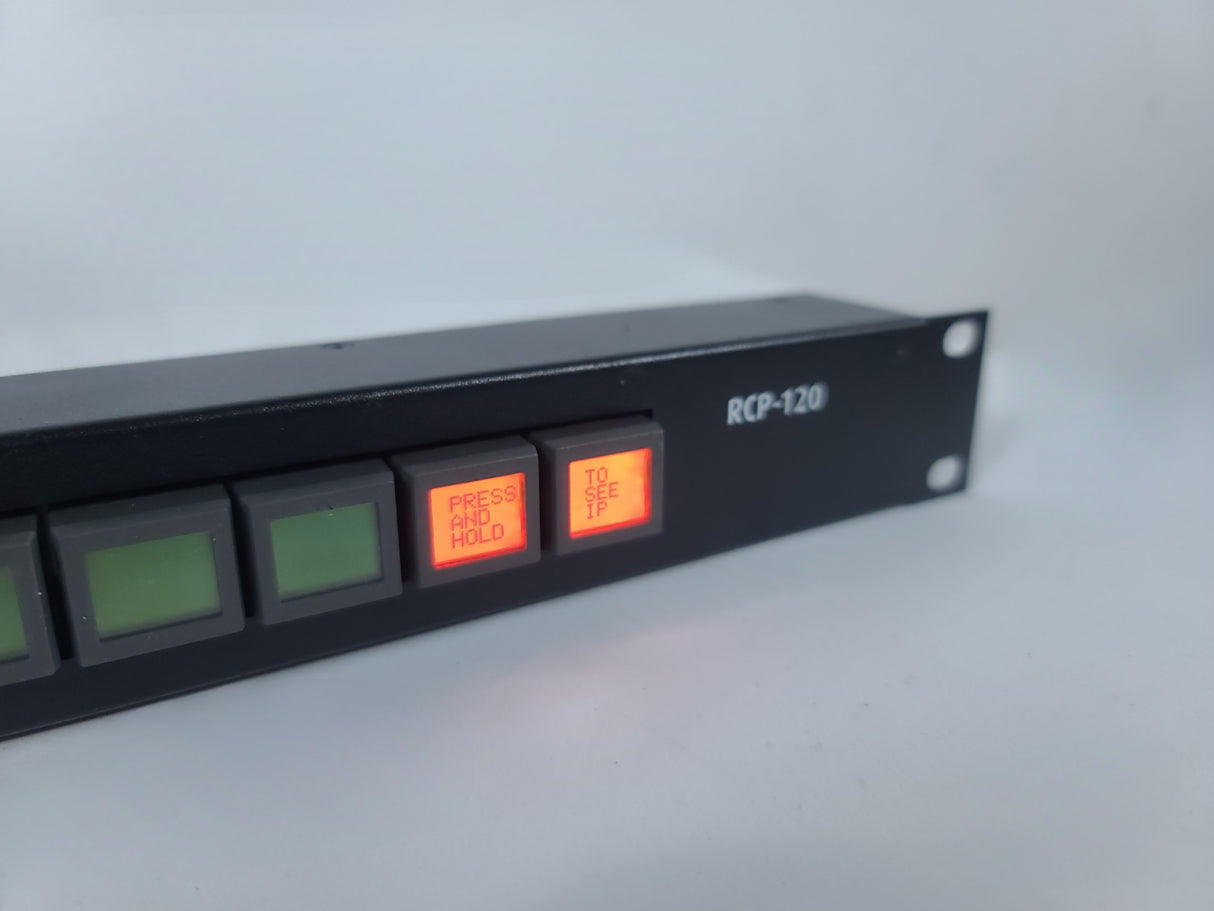

Dedicated menus allow the setup and configuration of the RCP-120 from the FSN control panel. An integrated web interface is also provided for remote setup and configuration. The RCP-120 is available in a slim 1RU package featuring 12 high-resolution color LCD displays that allow for electronic labeling. The panel provides selection of up to 20 sources. Up to thirty-two (32) RCP-120 units can be connected to the FSN system via an Ethernet switch. The buttons on the RCP-120 follow the input bus mapping and source labeling as defined on the FSN control panel.

The RCP-120 operates in two modes: standard and mixer. In standard mode, AUX outputs are switched immediately after you press the source button. In mixer mode, you can assign an additional panel to Preview and transitioned to Program by pressing the AUTO TRANS button.
