SKU: 2101-281

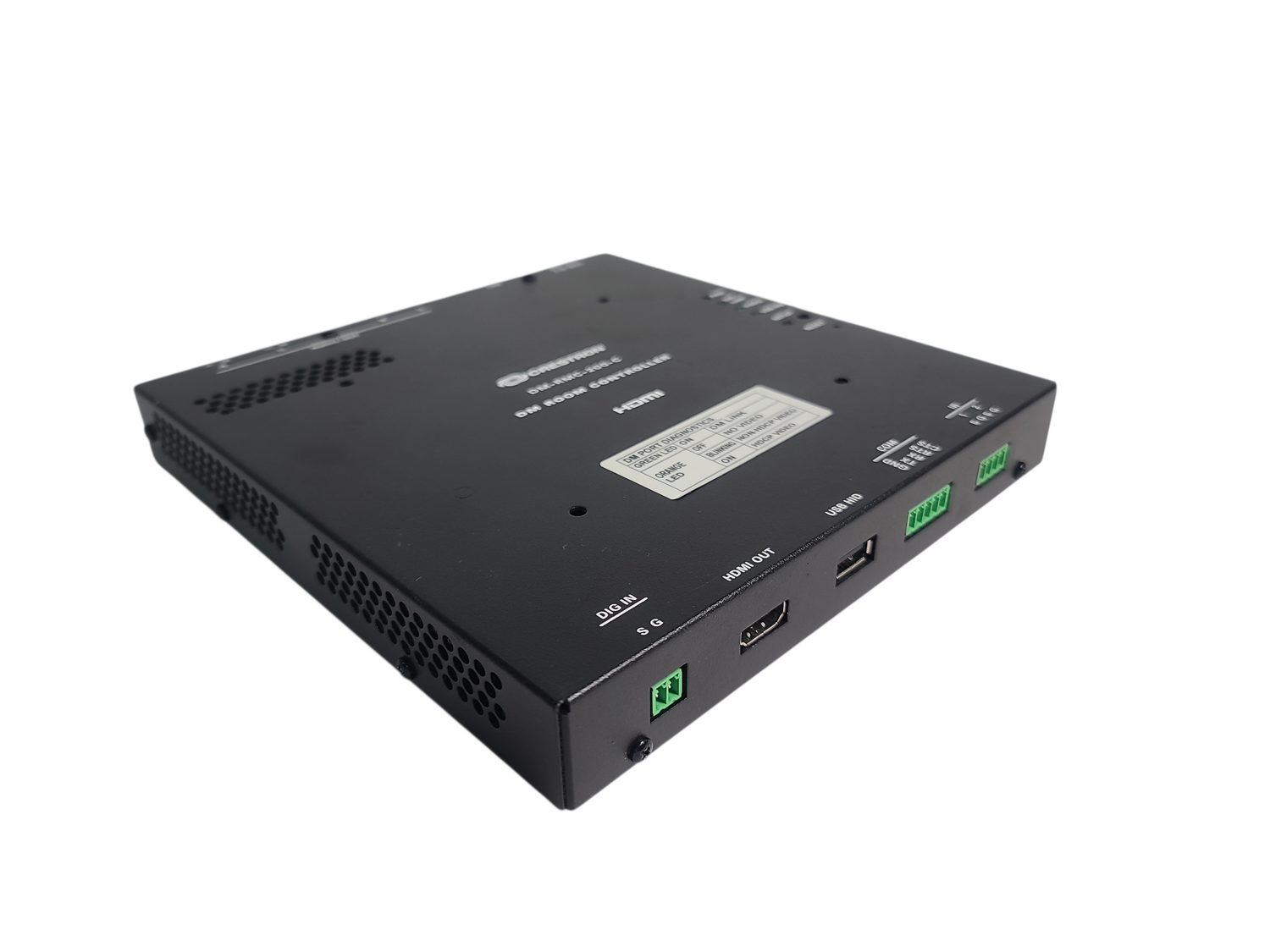

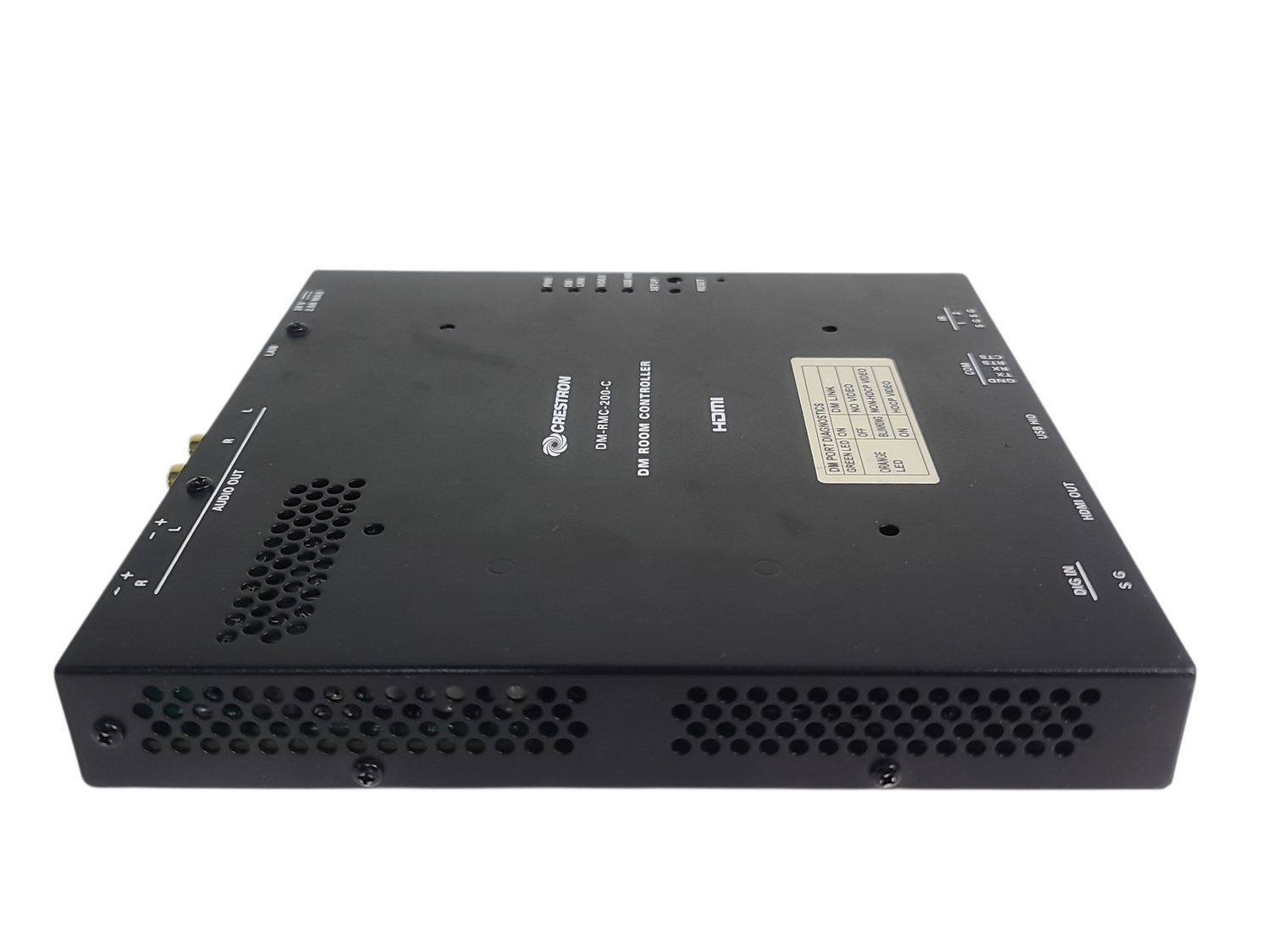

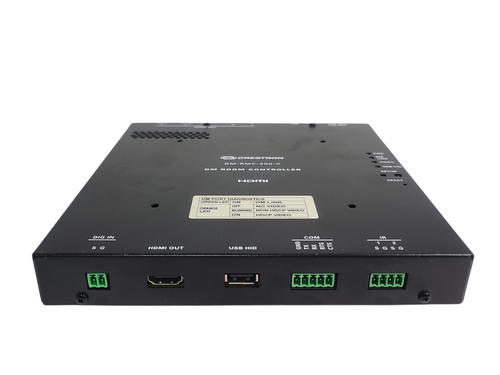

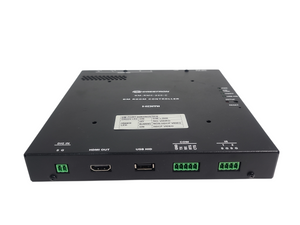

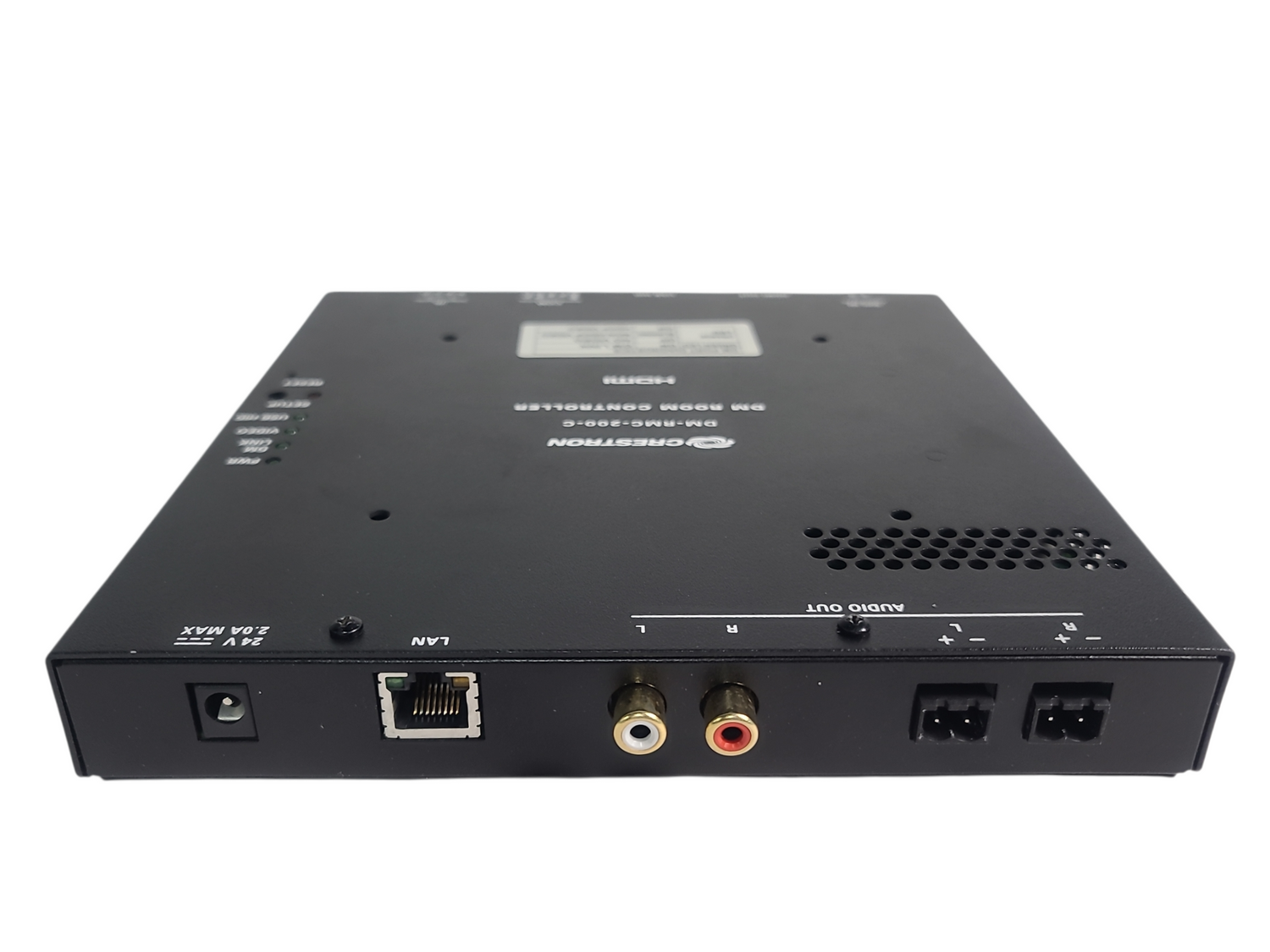

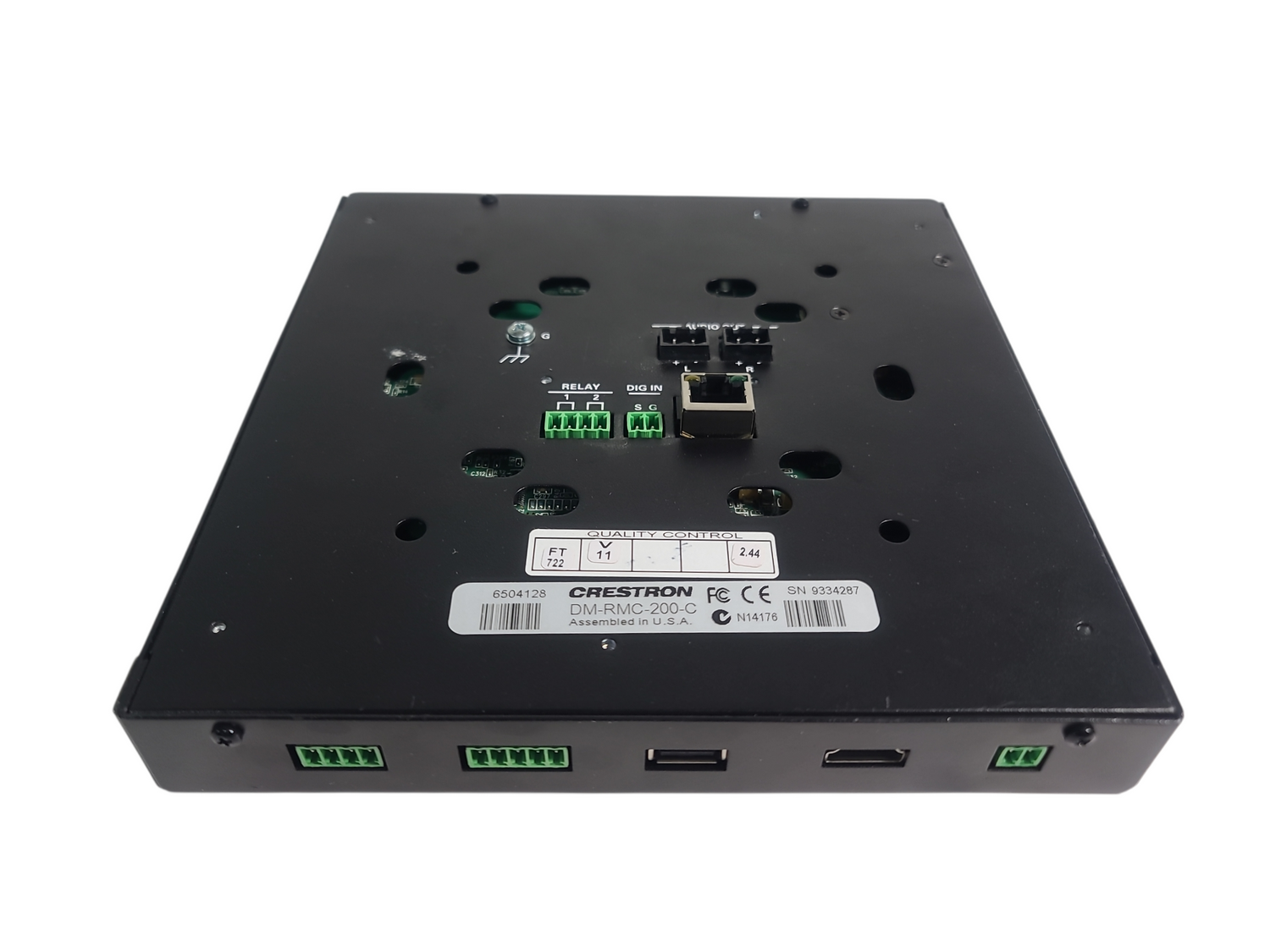

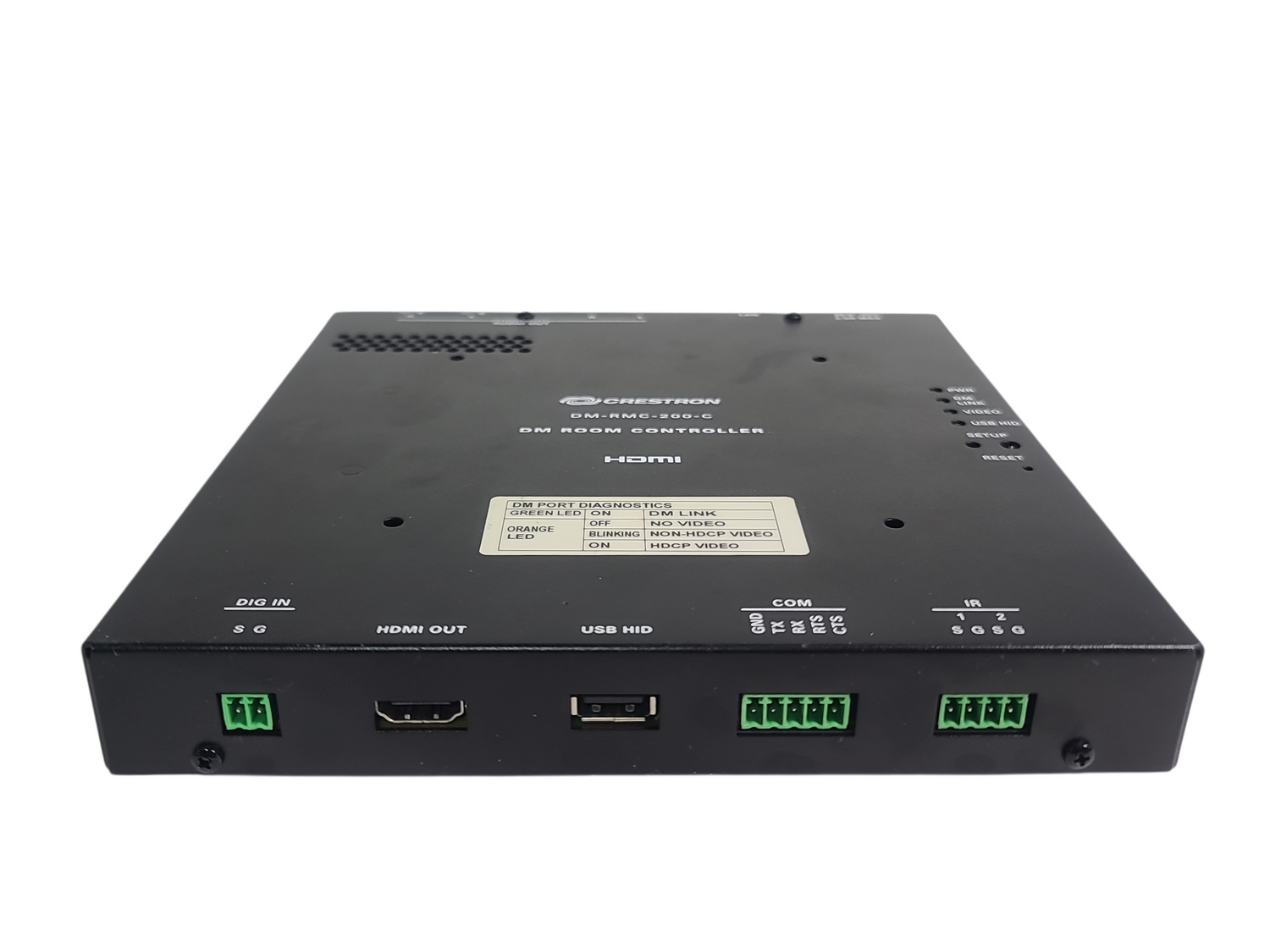

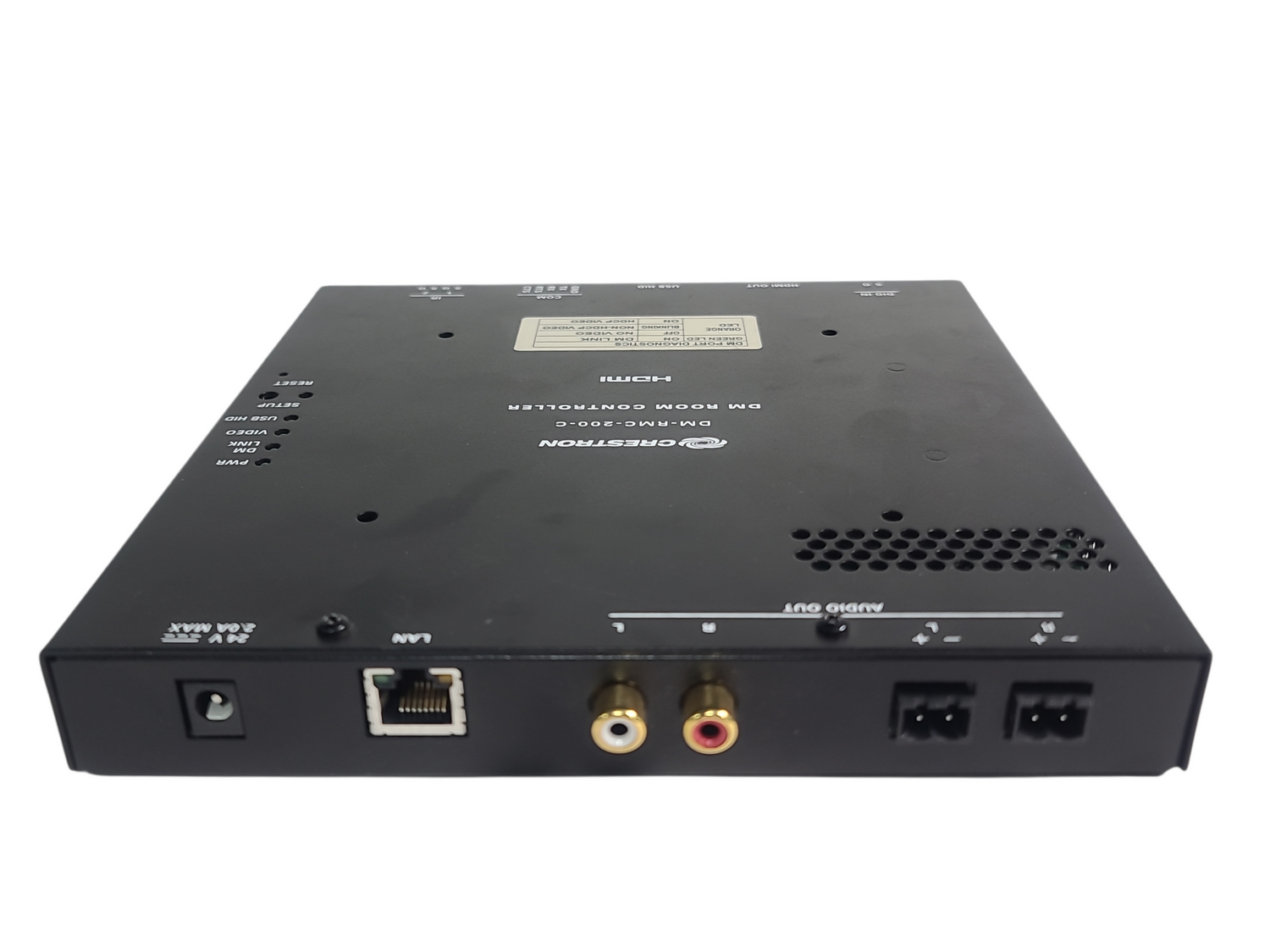

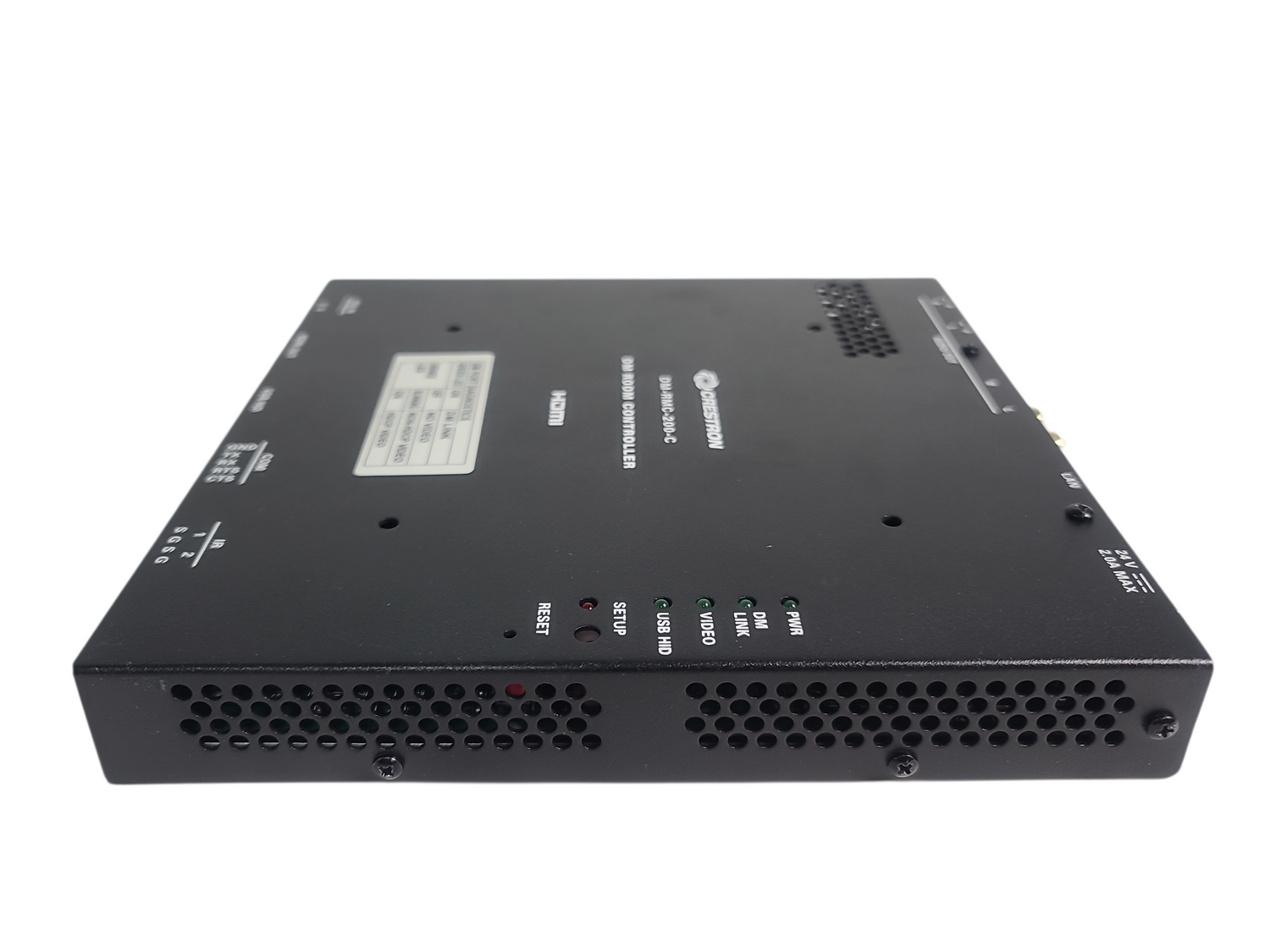

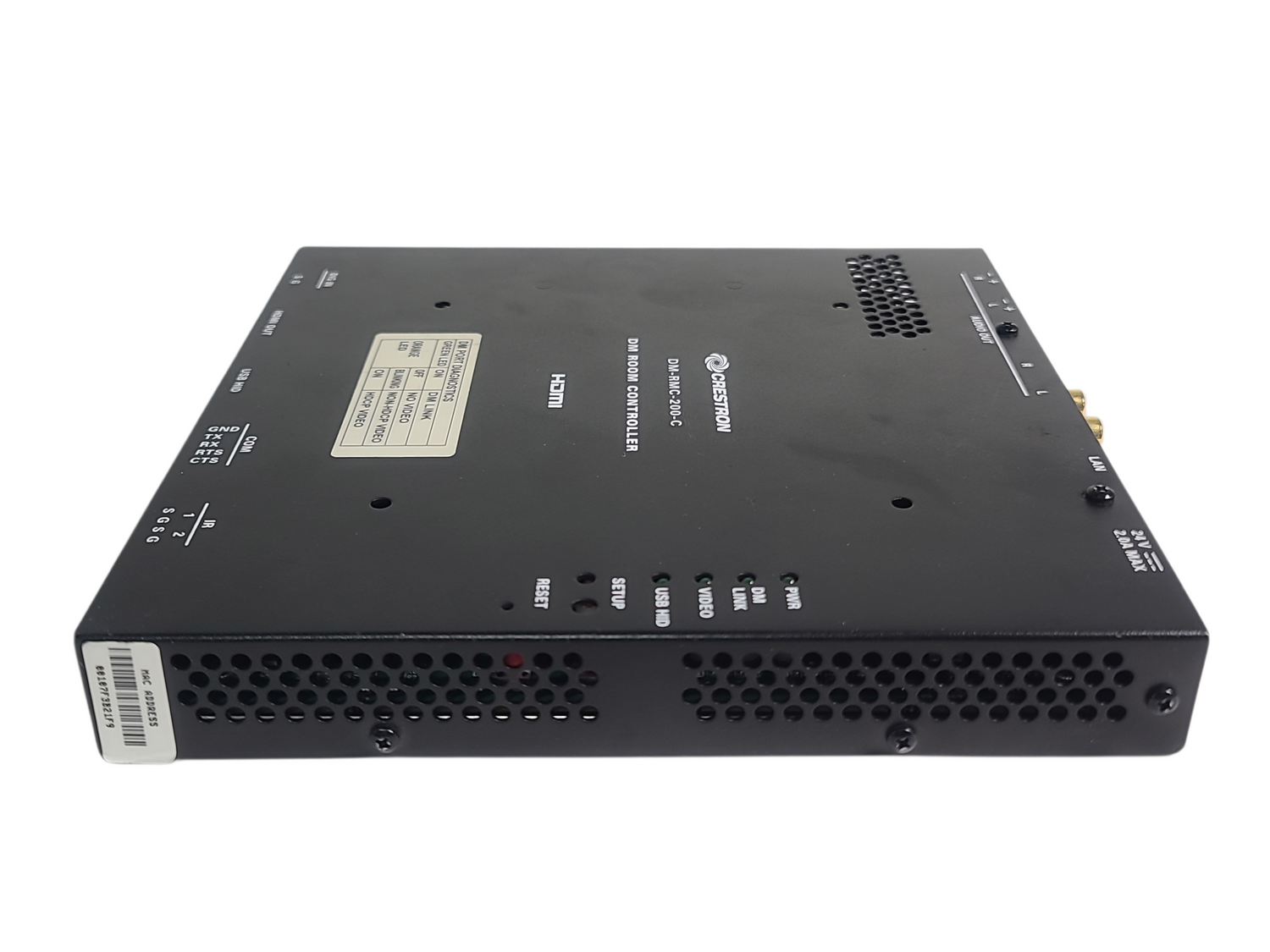

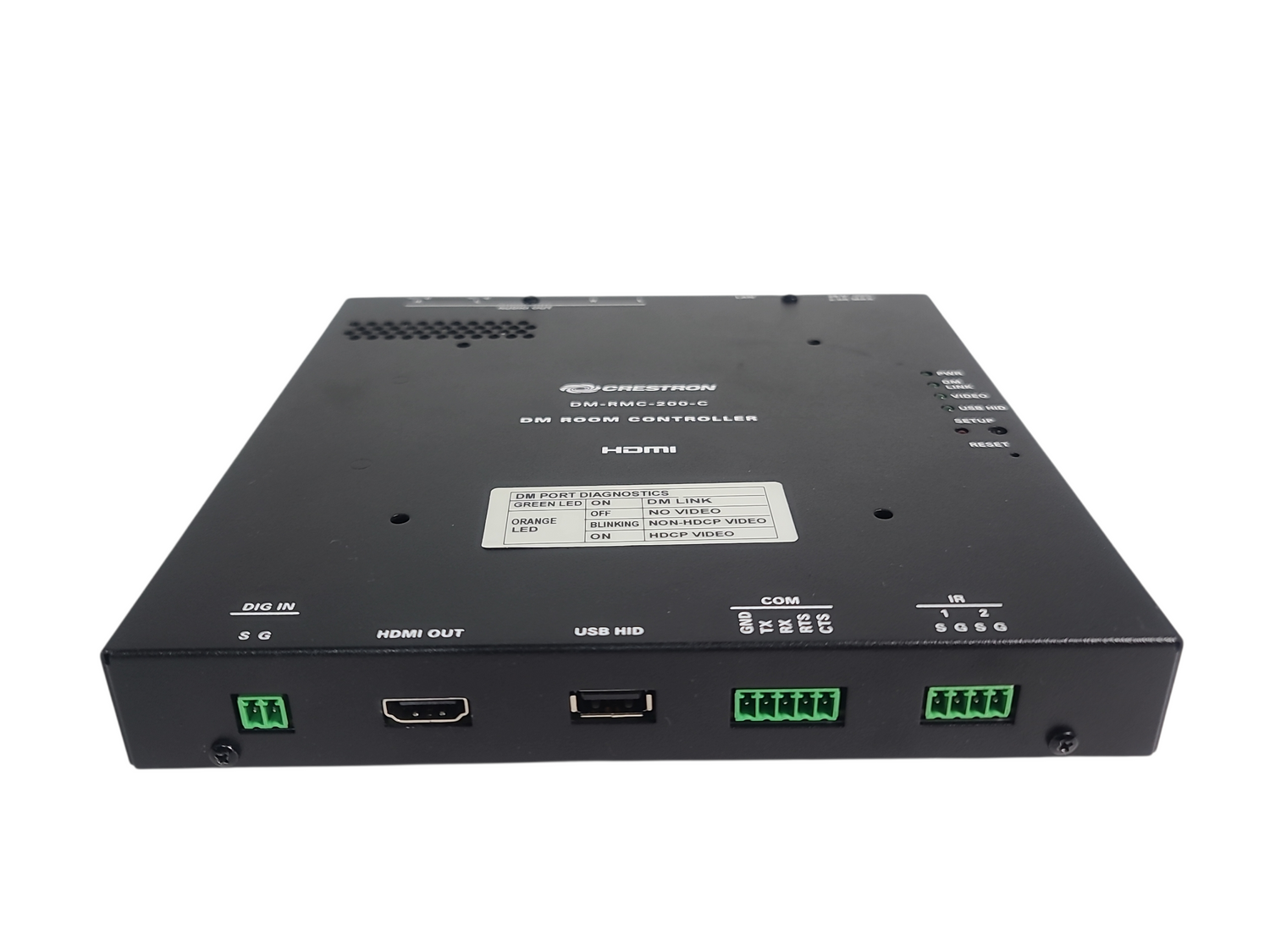

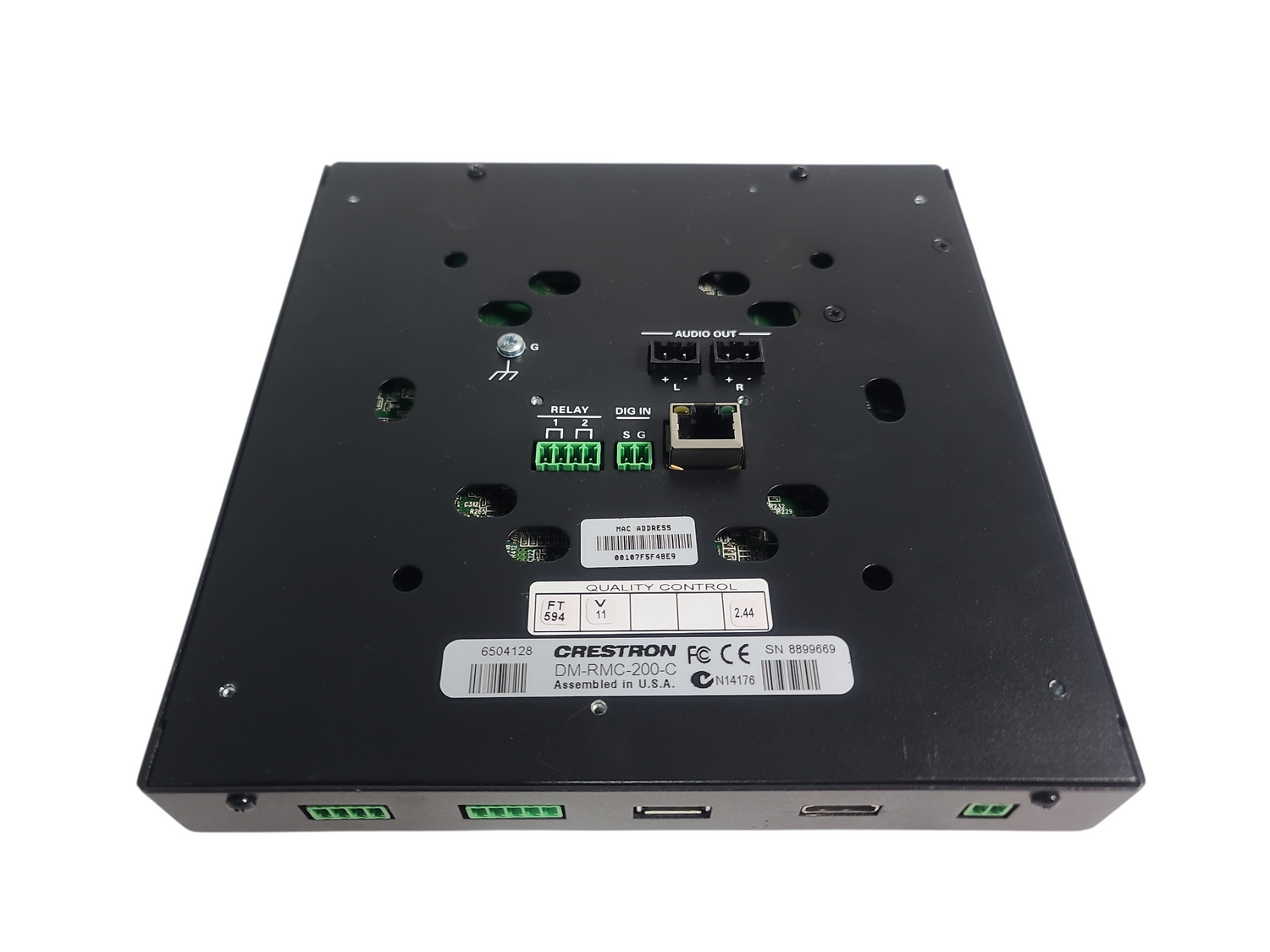

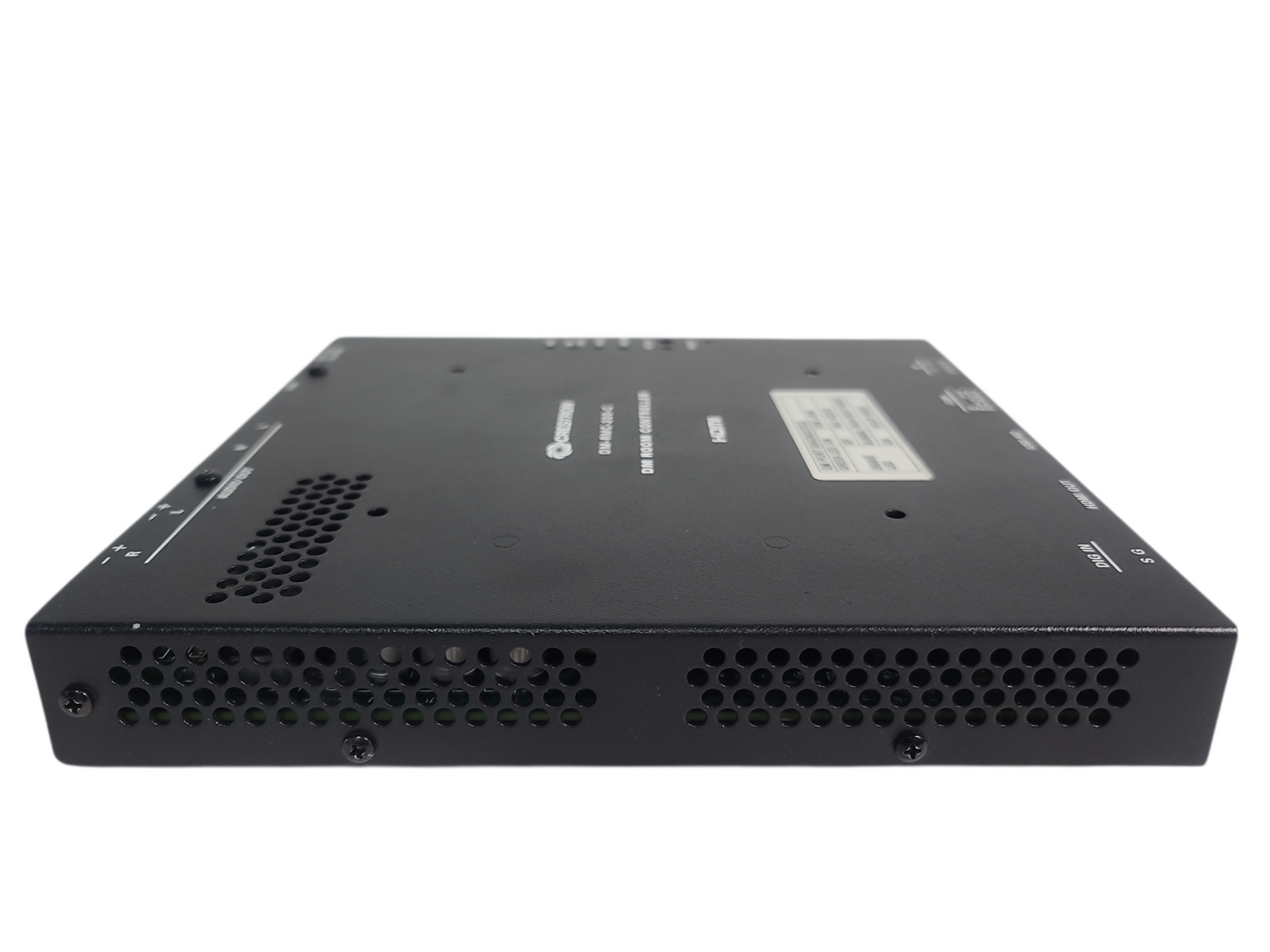

Crestron DM-RMC-200-C DigitalMedia 8G+ Receiver & Room Controller 200

$45.00

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The Crestron DM-RMC-200-C is a high-performance DigitalMedia 8G+ receiver and room controller engineered to function as the central hub for a complete in-room AV experience. Designed for discreet installation directly behind a flat-panel display, this versatile device combines multiple critical functions into a single, compact unit. It serves as a multi-format digital media receiver, a high-quality video scaler, a multi-channel audio extractor, and a powerful control interface for local devices. By receiving shielded twisted pair or fiber optic input from a DM 8G+ switcher or transmitter, it delivers pristine, uncompressed video up to 1080p to the connected display. The integrated scaling engine ensures any source resolution is perfectly optimized for the native resolution of the screen. Beyond video, the DM-RMC-200-C features a built-in 30-watt digital amplifier, allowing for direct connection of in-wall or in-ceiling speakers to provide room-filling sound without the need for an external amp. Its extensive device control capabilities, including infrared, RS-232, CEC, and Ethernet, enable seamless management of the display and other local equipment. For interactive applications, it also supports USB HID signal routing, allowing for a local keyboard and mouse to control a remote source PC. As part of a complete Crestron DigitalMedia system, this receiver ensures a streamlined, high-performance, and centrally managed AV installation. Read more

Features

  • Built-in scaler supports any video up to 1080p
  • Integrated 30-watt stereo amplifier for local speaker power
  • Provides HDMI output plus analog line-level audio
  • Enables video wall processing with zoom and bezel compensation
  • Offers device control via CEC, IR, RS-232, and Ethernet
  • Extends USB HID for local keyboard and mouse connection

Business Financing Options Avaiable

The Crestron DM-RMC-200-C is a high-performance DigitalMedia 8G+ receiver and room controller engineered to function as the central hub for a complete in-room AV experience. Designed for discreet installation directly behind a flat-panel display, this versatile device combines multiple critical functions into a single, compact unit. It serves as a multi-format digital media receiver, a high-quality video scaler, a multi-channel audio extractor, and a powerful control interface for local devices. By receiving shielded twisted pair or fiber optic input from a DM 8G+ switcher or transmitter, it delivers pristine, uncompressed video up to 1080p to the connected display. The integrated scaling engine ensures any source resolution is perfectly optimized for the native resolution of the screen. Beyond video, the DM-RMC-200-C features a built-in 30-watt digital amplifier, allowing for direct connection of in-wall or in-ceiling speakers to provide room-filling sound without the need for an external amp. Its extensive device control capabilities, including infrared, RS-232, CEC, and Ethernet, enable seamless management of the display and other local equipment. For interactive applications, it also supports USB HID signal routing, allowing for a local keyboard and mouse to control a remote source PC. As part of a complete Crestron DigitalMedia system, this receiver ensures a streamlined, high-performance, and centrally managed AV installation. Read more

Features

  • Built-in scaler supports any video up to 1080p
  • Integrated 30-watt stereo amplifier for local speaker power
  • Provides HDMI output plus analog line-level audio
  • Enables video wall processing with zoom and bezel compensation
  • Offers device control via CEC, IR, RS-232, and Ethernet
  • Extends USB HID for local keyboard and mouse connection

About the Crestron DM-RMC-200-C DigitalMedia 8G+ Receiver & Room Controller 200

The Crestron DM-RMC-200-C is an advanced DigitalMedia 8G+® receiver, video scaler, and localized room controller. It provides a comprehensive, one-box termination solution for a single flat-panel display or ceiling-mounted projector within a Crestron DigitalMedia ecosystem. Operating over a single CAT5e or Crestron DM 8G copper twisted-pair cable, the module accepts uncompressed HD video, multi-channel audio, Ethernet, and control signals from a centralized matrix switcher at distances up to 330 feet (100 meters). It is fully HDBaseT® certified, allowing the chassis to connect directly to any third-party HDBaseT compliant video source without requiring an upstream Crestron transmitter.

What elevates this model above baseline receivers is its robust onboard processing and audio hardware. It features a built-in high-definition video scaler that automatically optimizes any incoming source resolution—from legacy NTSC/PAL up to 1080p and WUXGA—to perfectly match the native resolution of the connected screen. It also includes video wall capabilities supporting up to \(4 \times 4\) multi-screen matrix arrays. For localized audio reproduction, the unit incorporates an integrated 30-watt (15W per channel) stereo power amplifier alongside an unbalanced line-level RCA output, allowing it to drive passive surface-mount speakers or external amplifiers directly. Expanded control infrastructure includes two low-voltage relays, a digital sensing input, standard RS-232, IR, and USB HID routing for local mouse and keyboard extension.

Key Features

  • Built-in scaler supports any video up to 1080p
  • Integrated 30-watt stereo amplifier for local speaker power
  • Provides HDMI output plus analog line-level audio
  • Enables video wall processing with zoom and bezel compensation
  • Offers device control via CEC, IR, RS-232, and Ethernet
  • Extends USB HID for local keyboard and mouse connection

Crestron DM-RMC-200-C DigitalMedia 8G+ Receiver & Room Controller 200 Specs

Input Interface
DigitalMedia 8G+ (DM 8G+) via a single copper port (HDBaseT compliant).
Output Interface
1× HDMI Type A female port.
Onboard Scaler
High-definition spatial scaler, automatic or manual resolution matching.
Maximum Resolutions
1080p60 Full HD (1920×1080 at 60 Hz).
WUXGA (1920×1200 at 60 Hz).
Video Wall Capability
Up to 16 units can be combined for up to a \(4 \times 4\) display matrix.
Color Depth Support
24-bit, 30-bit, and 36-bit Deep Color.
Content Protection
HDCP 1.4 compliant.
Integrated Stereo Amplifier
30 Watts total RMS (15 Watts per channel into an 8-Ohm load).
Amplifier Configuration
Class D, 2-channel stereo.
Line-Level Audio Outputs
1× stereo pair (unbalanced RCA jacks).
Digital Audio Formats
Passes through linear PCM (up to 8 channels), Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and multi-channel bitstream audio over HDMI.
DM IN
1× 8-pin RJ45 female connector (accepts twisted-pair copper cable up to 330 feet / 100 meters).
HDMI OUT
1× 19-pin HDMI Type A female port.
LAN / Ethernet
1× RJ45 port, 10/100 Mbps auto-negotiation.
COM / Serial
1× 3-pin 3.5mm detachable terminal block for bidirectional RS-232 communication (up to 115.2k baud).
IR / Control
1× 2-pin 3.5mm detachable terminal block for infrared control transmitter output (up to 1.2 MHz carrier frequency).
RELAYS
2× low-voltage relays (rated for 1 Amp at 30 Volts AC/DC).
DIGITAL IN
1× digital sensing input (referenced to ground, detects closures or 0-24 VDC levels).
USB HID Routing
1× USB Type B female port (connects to local computer host) and 2× USB Type A female ports (connect to keyboard, mouse, or interactive whiteboard).

Key Features

  • Built-in scaler supports any video up to 1080p
  • Integrated 30-watt stereo amplifier for local speaker power
  • Provides HDMI output plus analog line-level audio
  • Enables video wall processing with zoom and bezel compensation
  • Offers device control via CEC, IR, RS-232, and Ethernet
  • Extends USB HID for local keyboard and mouse connection
