SKU: C2053-64

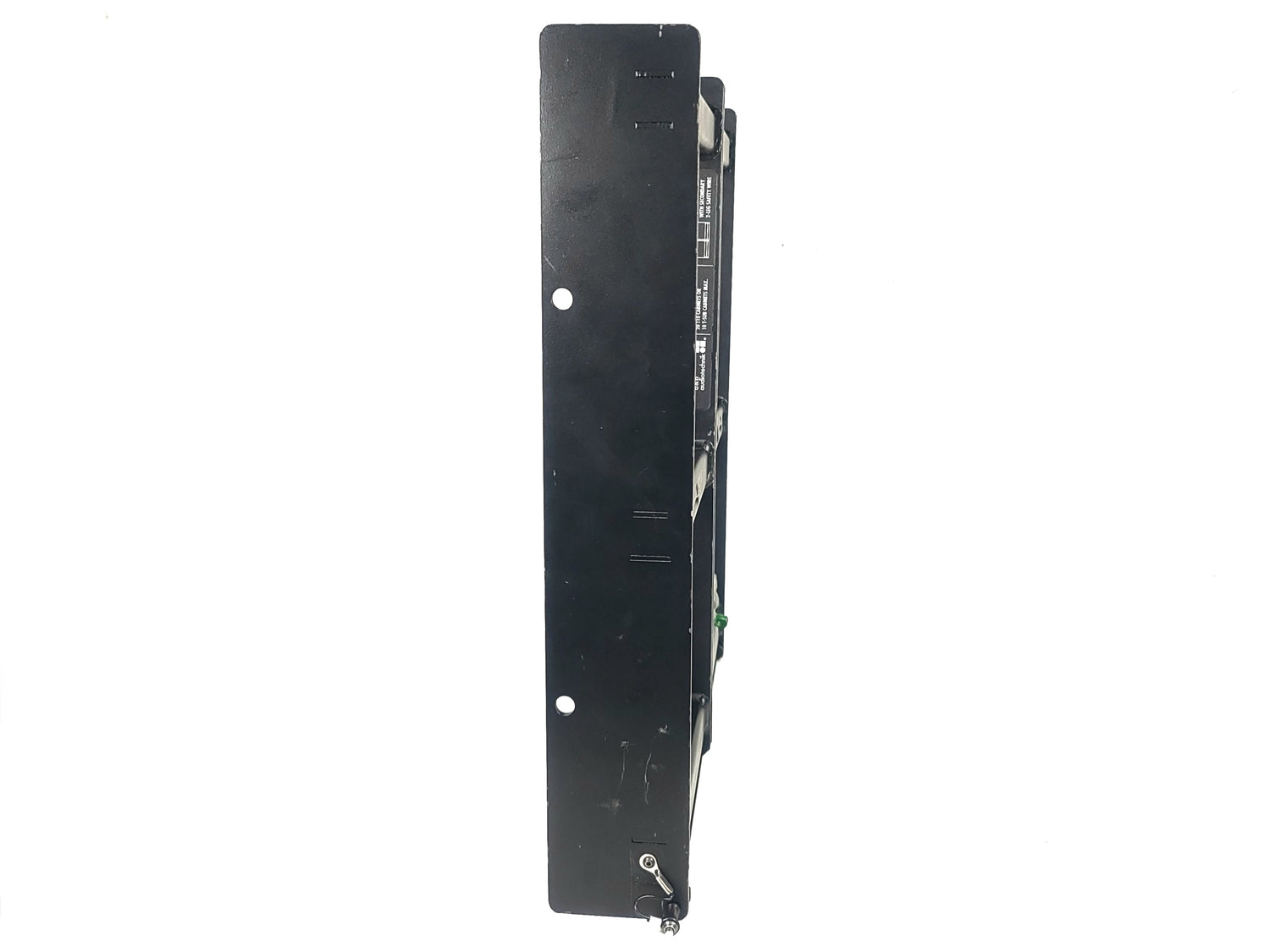

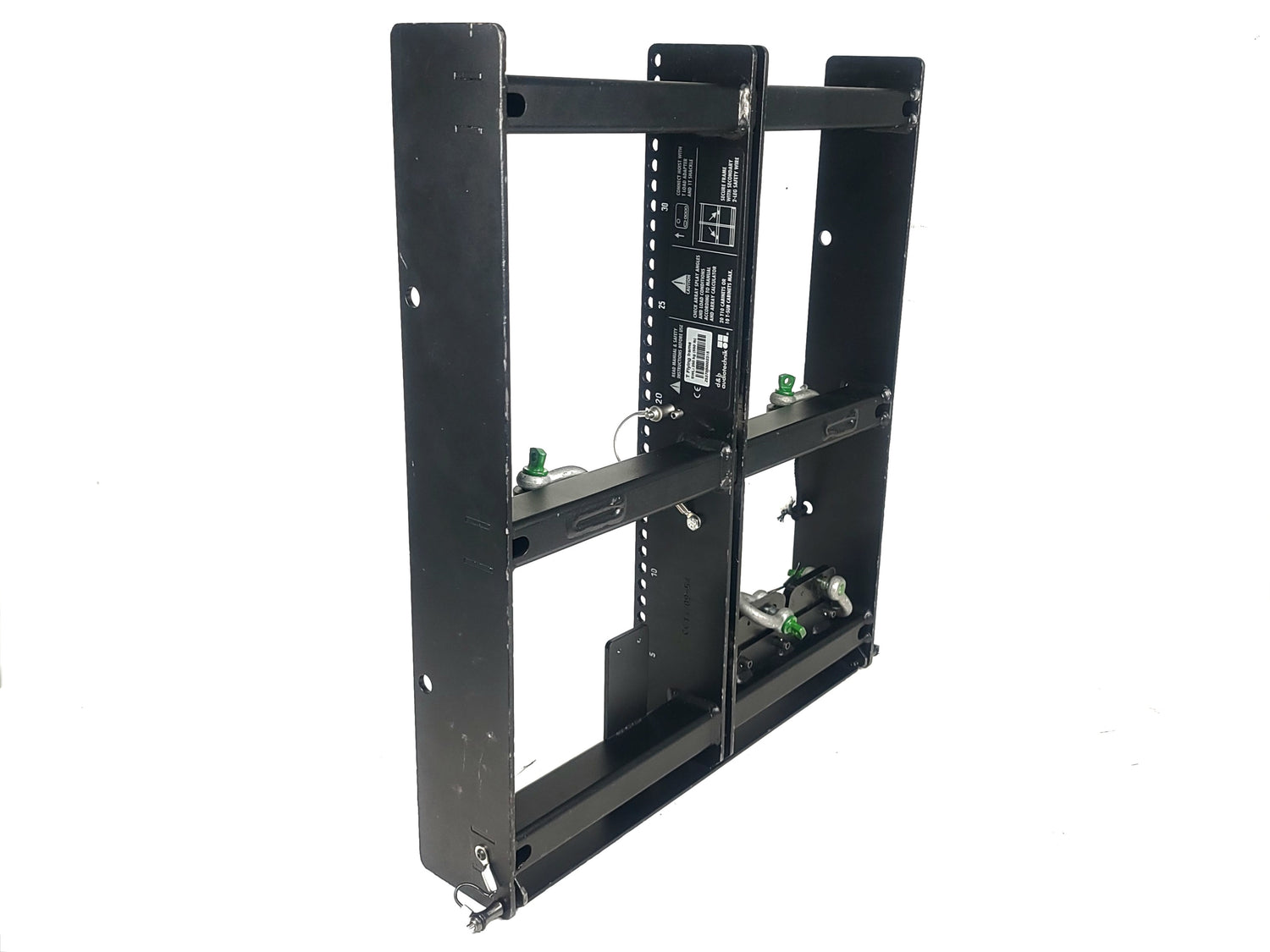

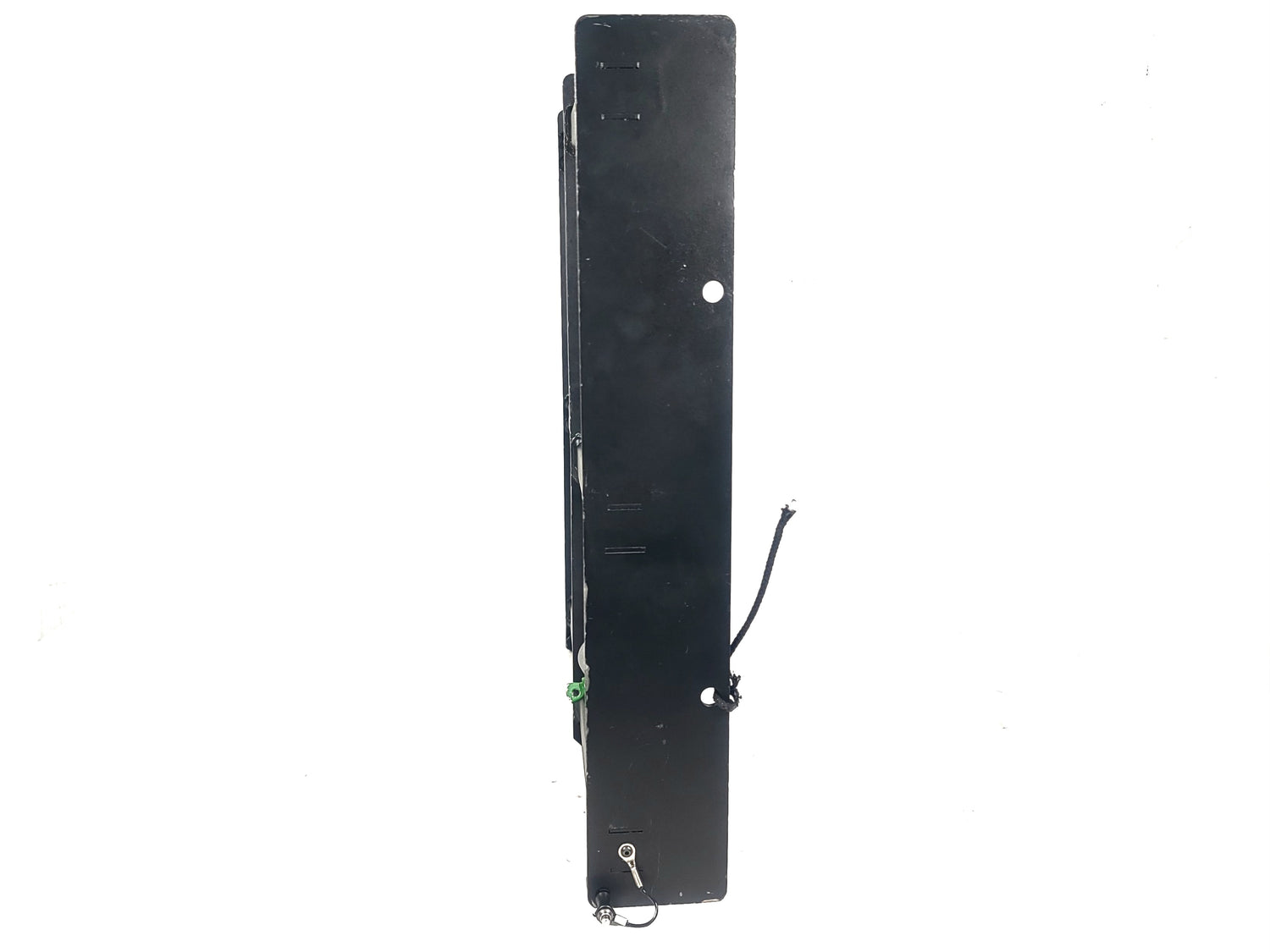

D&B T Flying Frame

Name: D&B T Flying Frame
Brand: AVGear.com
Price: 999.00 USD
Availability: InStock

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The D&B T Flying Frame provides a secure, precision-engineered rigging solution for deploying D&B T-Series loudspeaker arrays. This flying frame is designed to facilitate both flown and ground-stacked configurations, offering audio professionals the flexibility to adapt to diverse venue requirements while maintaining the structural integrity essential for safe, reliable array deployment. Its construction reflects D&B's commitment to precision and safety in professional audio rigging. The T Flying Frame integrates seamlessly with D&B's array mounting hardware, allowing for efficient setup and consistent acoustic performance across configured systems. Built to withstand the demands of touring and permanent installation, this frame delivers dependable support for critical sound reinforcement applications. For system technicians, rental houses, and integrators working with D&B loudspeakers, this flying frame provides the safety and reliability required for professional array deployment. Read more

Features

Precision-engineered for D&B T-Series loudspeaker arrays
Supports flown and ground-stacked configurations
Seamless integration with D&B array hardware
Rugged construction withstands touring demands
Efficient setup supports production workflow
Reliable safety for professional sound reinforcement

Business Financing Options Avaiable

View Available Financing

Features

Precision-engineered for D&B T-Series loudspeaker arrays
Supports flown and ground-stacked configurations
Seamless integration with D&B array hardware
Rugged construction withstands touring demands
Efficient setup supports production workflow
Reliable safety for professional sound reinforcement

No products currently in stock

About the D&B T Flying Frame

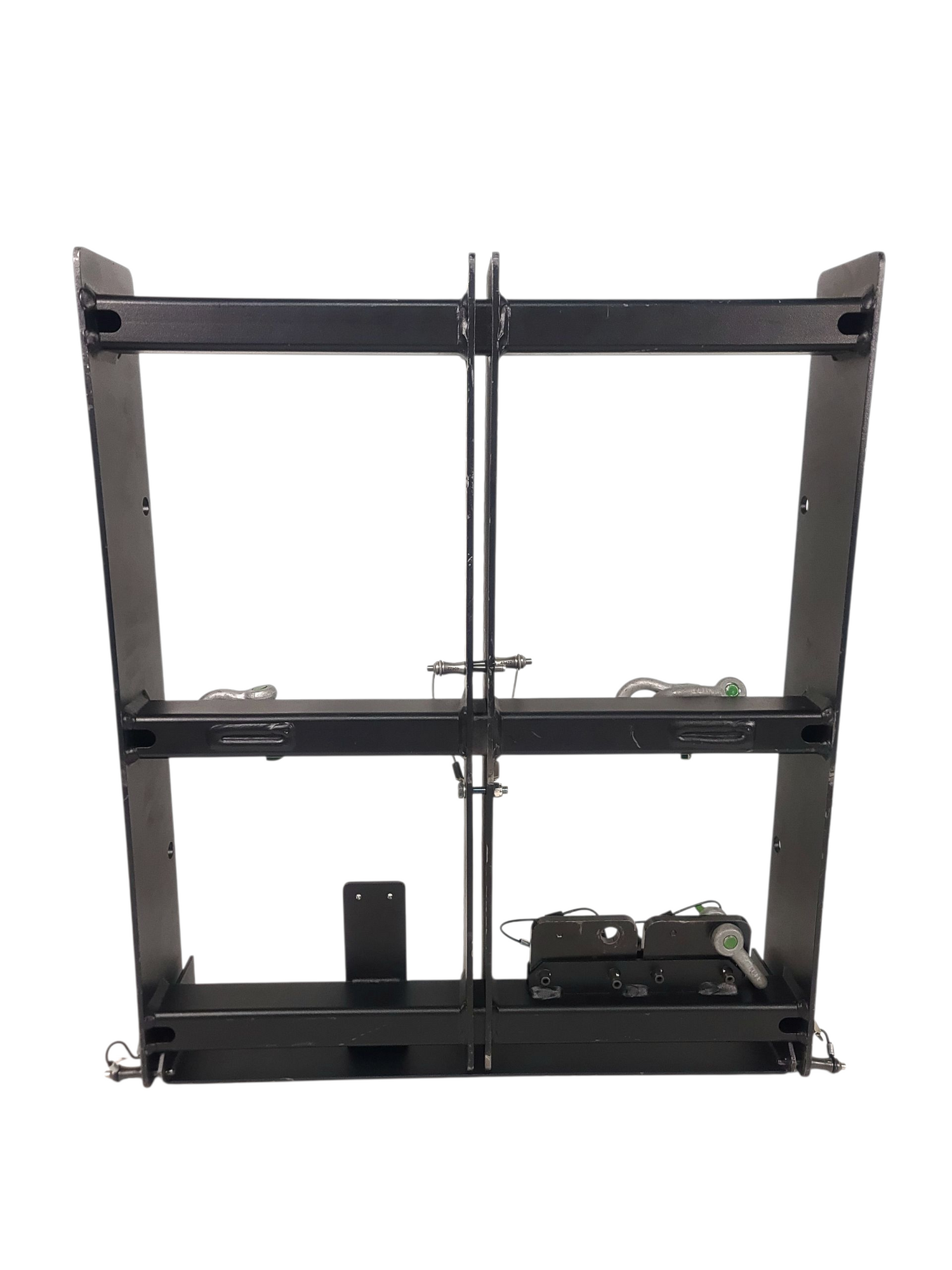

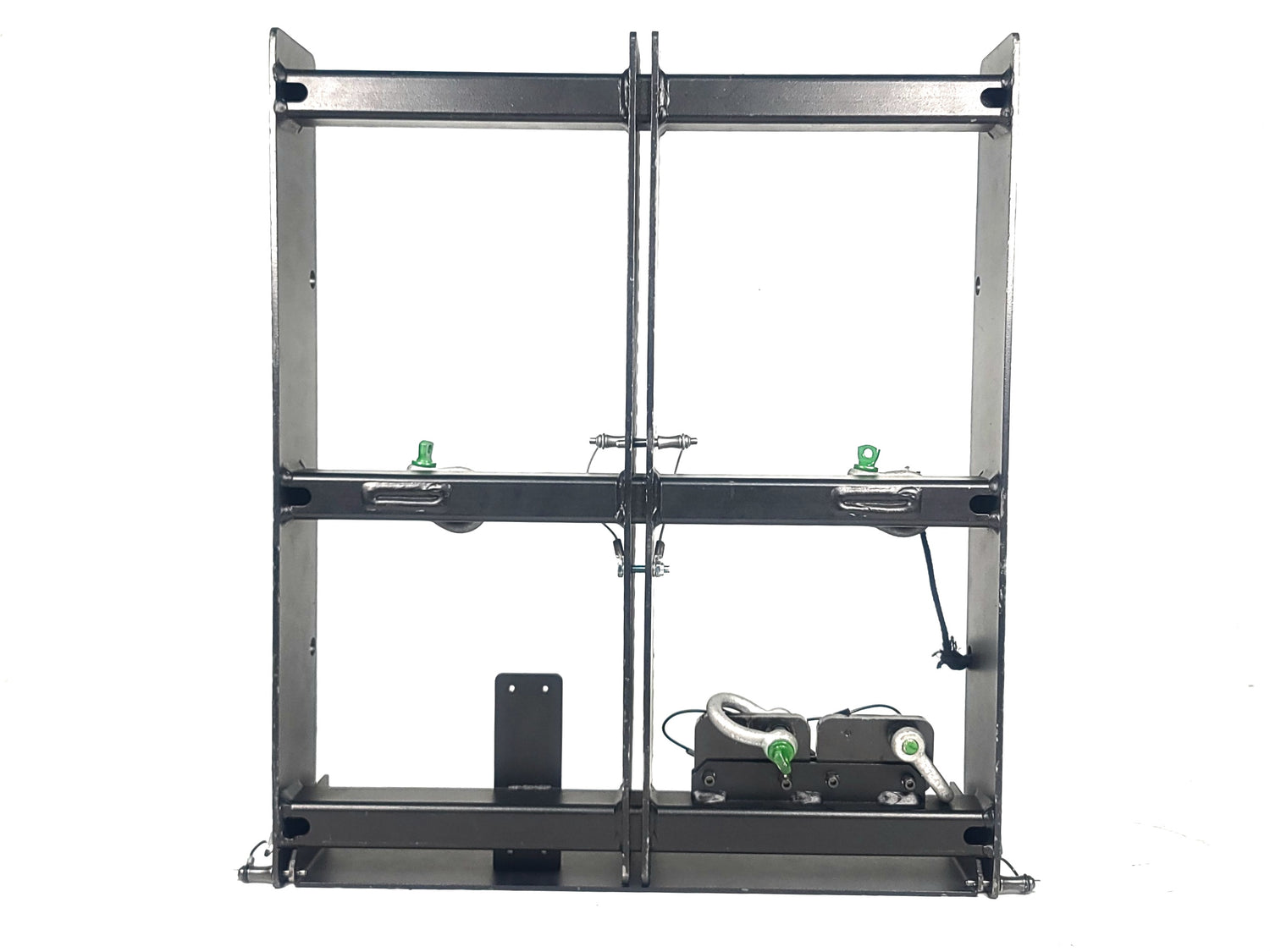

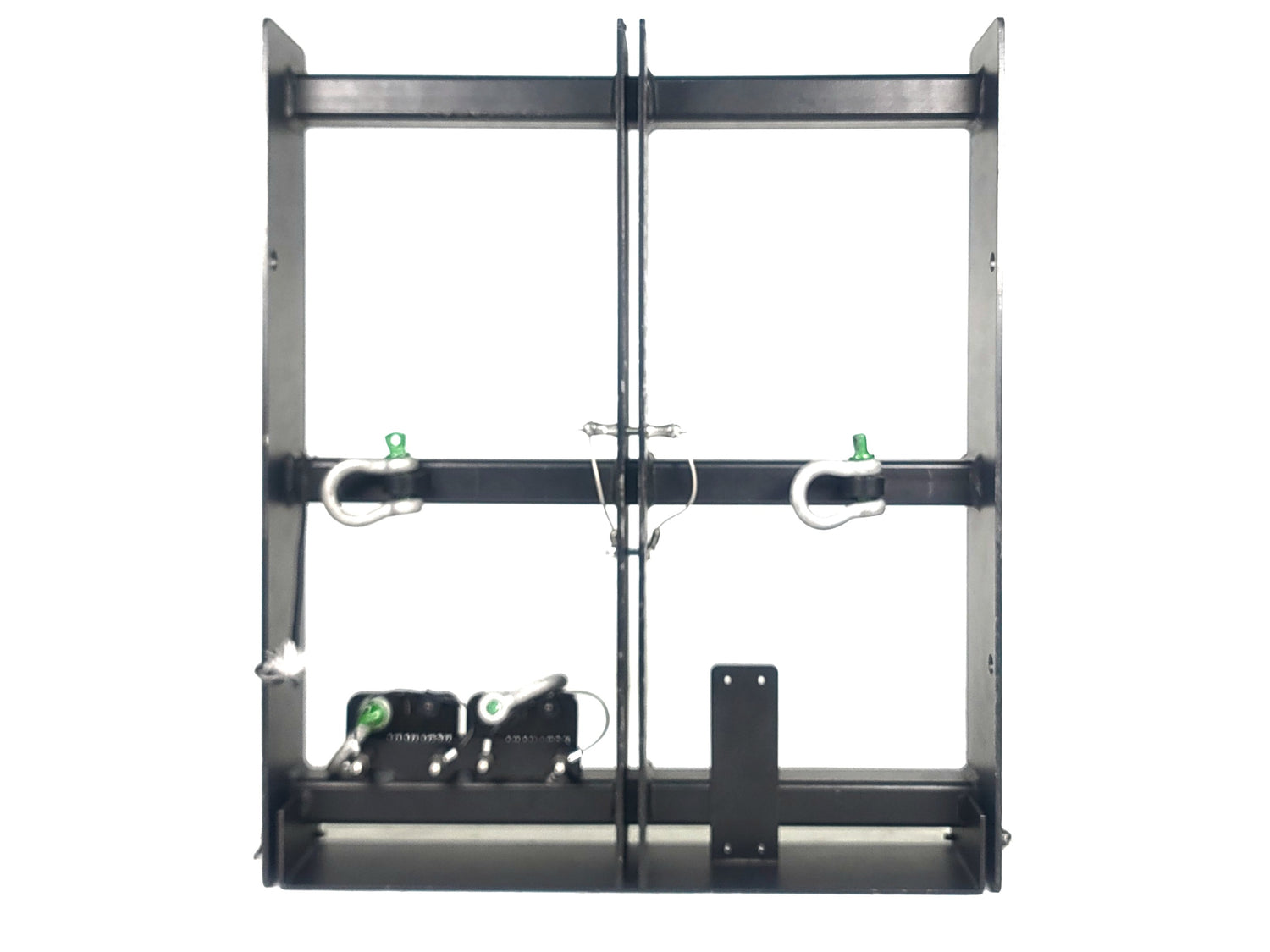

The d&b audiotechnik T Flying Frame (Z5370) is a professional-grade, structural rigging hardware component engineered to suspend T-Series loudspeaker arrays safely. This heavy-duty frame serves as the primary load-bearing foundation for flying vertical line arrays consisting of T10 mid/high cabinets and T-SUB subwoofers. By utilizing a center bar array with precision-spaced frontpick and rearpick connection holes, rigging technicians can achieve accurate vertical tilt aiming and lock in any desired splay angle configuration. This frame ensures complete mechanical security on indoor theater grids, outdoor festival trusses, and commercial corporate event stages.

Constructed from premium, high-tensile structural steel with a scratch-resistant black finish, the T Flying Frame maintains a lightweight footprint of only 12 kg while supporting substantial payload weights. It is rated to fly up to 10 standard T10 cabinets under normal vertical loads, or longer array configurations reaching a total system weight of up to 250 kg when optimized using d&b ArrayCalc software. The frame comes equipped with dual integrated safety points fitted with 1-ton shackles to accommodate secondary safety wire drop links, ensuring standard compliance and maximum acoustic structural performance on demanding live sound stages.

Key Features

Precision-engineered for D&B T-Series loudspeaker arrays
Supports flown and ground-stacked configurations
Seamless integration with D&B array hardware
Rugged construction withstands touring demands
Efficient setup supports production workflow
Reliable safety for professional sound reinforcement

Already own this item and want to sell it?

Click here to sell your item

D&B T Flying Frame Specs

Maximum Cabinet Capacity

Suspends up to 10 x T10 loudspeakers in standard line array configuration.

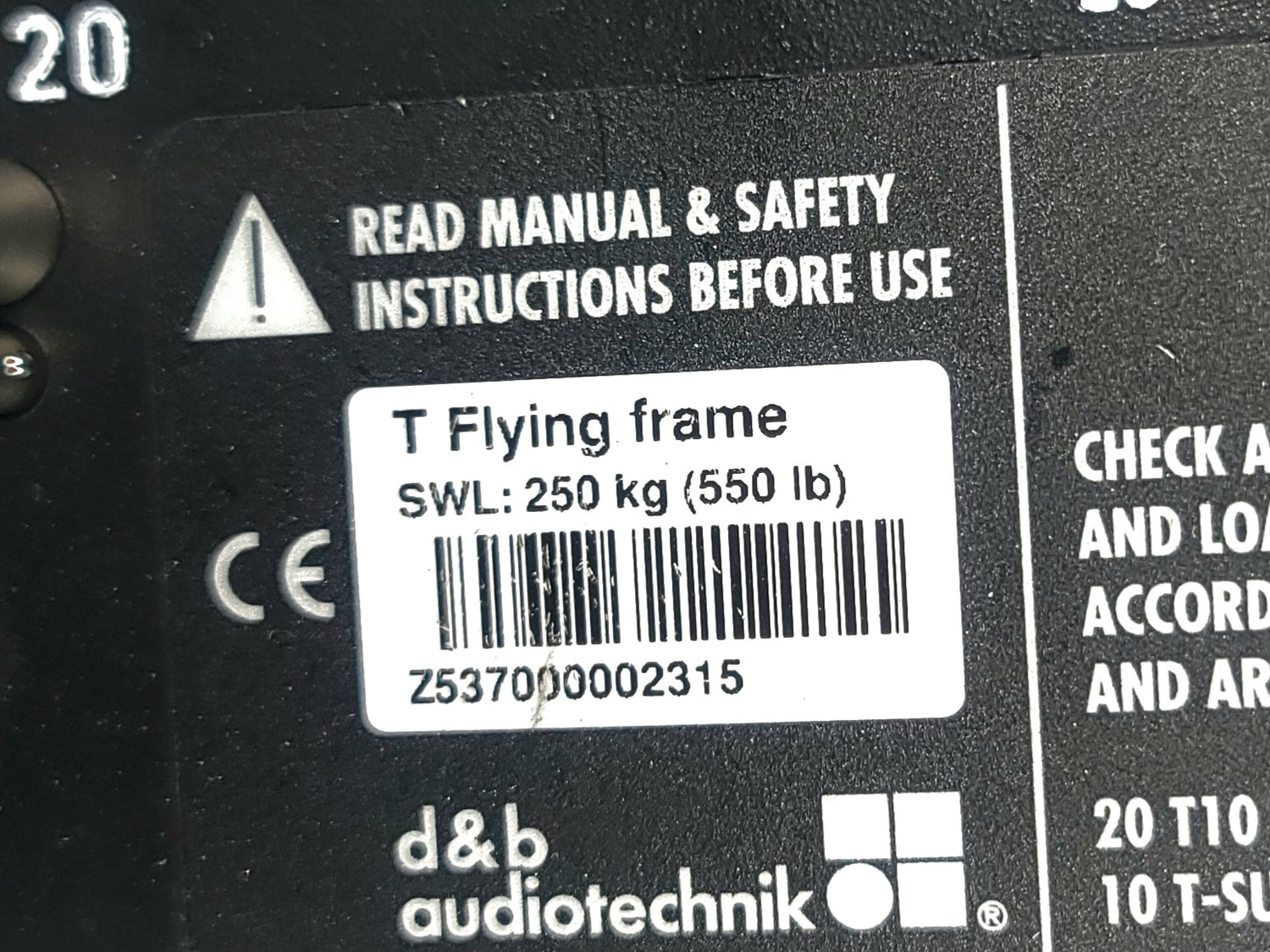

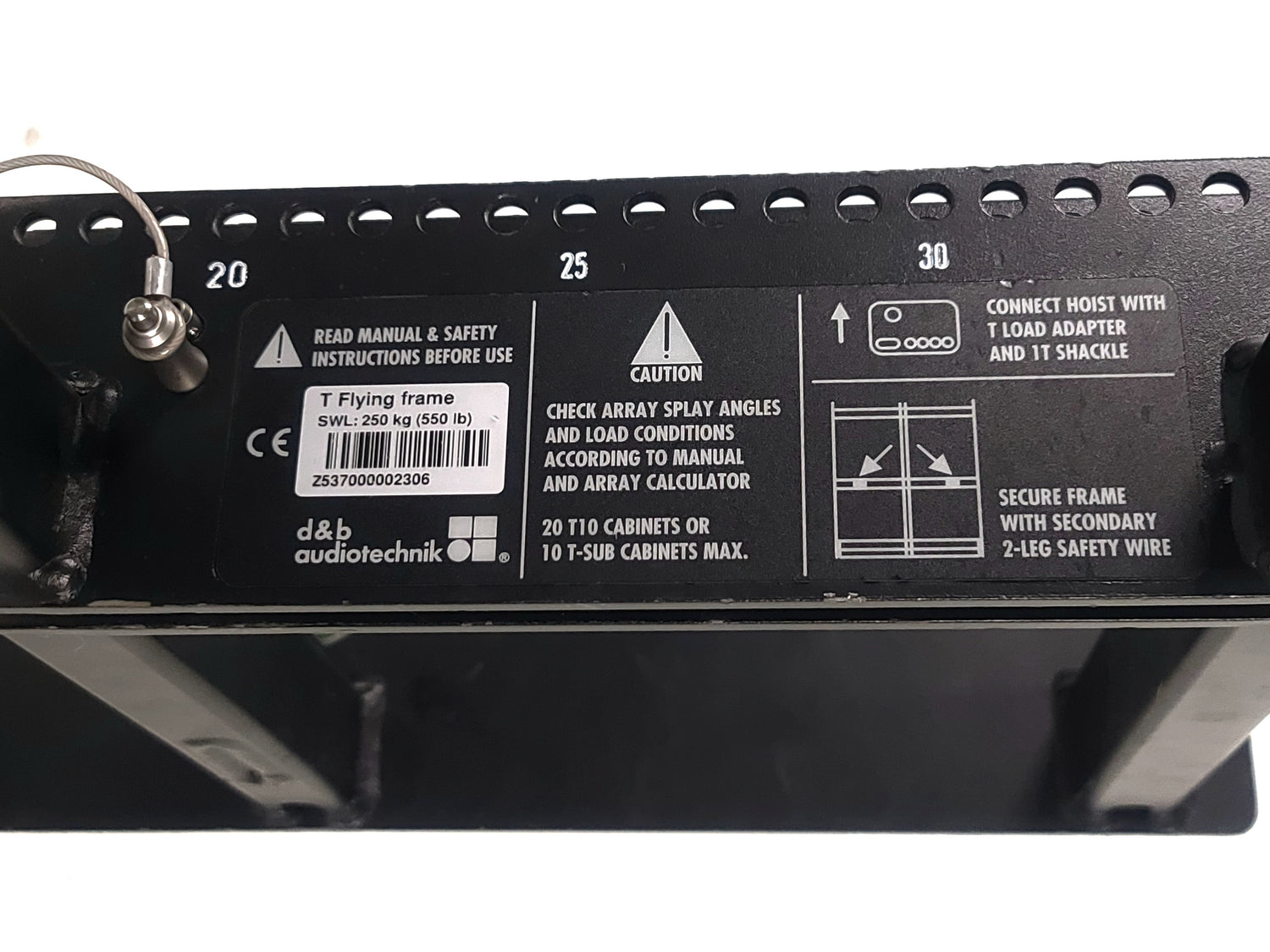

Maximum Safe Working Load (SWL)

Rated for a total system weight up to 250 kg (551 lbs), contingent on verification via d&b ArrayCalc software.

Standard Array Configuration

Optimally flown with up to 4 x T10 mid/high cabinets and 2 x T-SUB line array elements.

Total Assembly Weight

12 kg (26.4 lbs) including all standard structural rigging and connection components.

Material Build

High-tensile structural steel coated in a scratch-resistant, impact-absorbing black outdoor finish.

Splay Angle Range

Mechanical adjustments accommodate vertical cabinet angles ranging from 0° to 15°.

Primary Suspension Attachment

Central spine bar optimized with indexed frontpick and rearpick connection points.

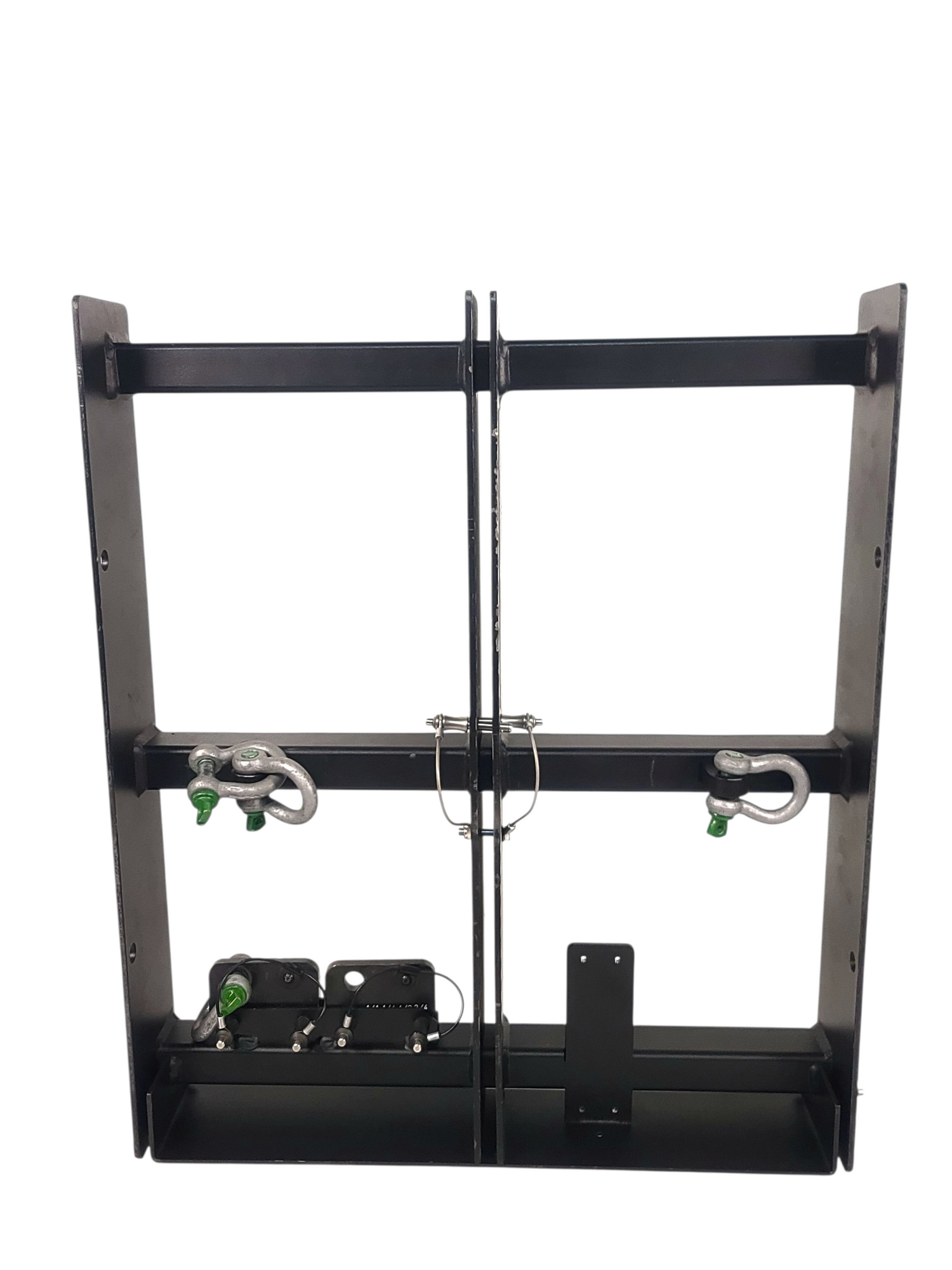

Secondary Safety System

Built-in array featuring 2x safety points pre-fitted with 1-ton shackles to accept backup steel safety wires or safety chain configurations.

Telemetry Compatibility

Top-mounted plate integrated with four M4 threaded inserts to mount inclinometers or alignment tools (such as the Teqsas LAP-TEQ layout tool).

Load Adapters

2x d&b Z5160 Q-Series Load Adapters.

Locking Pins

Fast-release structural pins for attaching the top cabinet’s front and rear links.
