Evertz AESIMP-12F - 12CH XLRF to BNC AES Impedance Matching Panel 1

$175.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

The Evertz AESIMP-12F is a professional 12-channel AES impedance matching panel designed to convert balanced 110Ω AES/EBU digital audio signals on XLR female connectors to unbalanced 75Ω AES signals on BNC connectors. Using high-quality transformer coupling, it provides transparent impedance conversion while maintaining signal integrity for digital audio transmission. The passive design requires no external power and supports AES digital audio sampling rates from 22 kHz to 96 kHz. Ideal for broadcast facilities, television studios, post-production houses, and professional audio installations, the AESIMP-12F simplifies integration between balanced and unbalanced AES equipment. Its standard rack-mount form factor offers a reliable and space-efficient solution for permanent broadcast and production environments. Read more

Features

12-channel AES impedance conversion.
Balanced XLR female to BNC outputs.
Passive transformer-coupled design.
Supports 22–96 kHz sample rates.
No external power required.
Rack-mount professional construction.
Maintains AES signal integrity.

Business Financing Options Avaiable

View Available Financing

Features

12-channel AES impedance conversion.
Balanced XLR female to BNC outputs.
Passive transformer-coupled design.
Supports 22–96 kHz sample rates.
No external power required.
Rack-mount professional construction.
Maintains AES signal integrity.

No products currently in stock

About the Evertz AESIMP-12F - 12CH XLRF to BNC AES Impedance Matching Panel 1

The Evertz AESIMP-12F is a professional-grade, 1-rack-unit (1RU) bulk impedance conversion panel designed to seamlessly bridge the gap between balanced and unbalanced AES/EBU digital audio equipment. In broadcast facilities, mobile production trucks, and large-scale recording studios, AES digital audio is frequently transmitted over long distances using standard 75-ohm coaxial cable (BNC) rather than traditional 110-ohm twisted-pair cable (XLR) due to cost, space, and existing video infrastructure. This passive panel allows technicians to interface outboard audio gear featuring standard 3-pin XLR connections directly into a facility's BNC-based digital audio routing matrix without signal reflections or degradation.

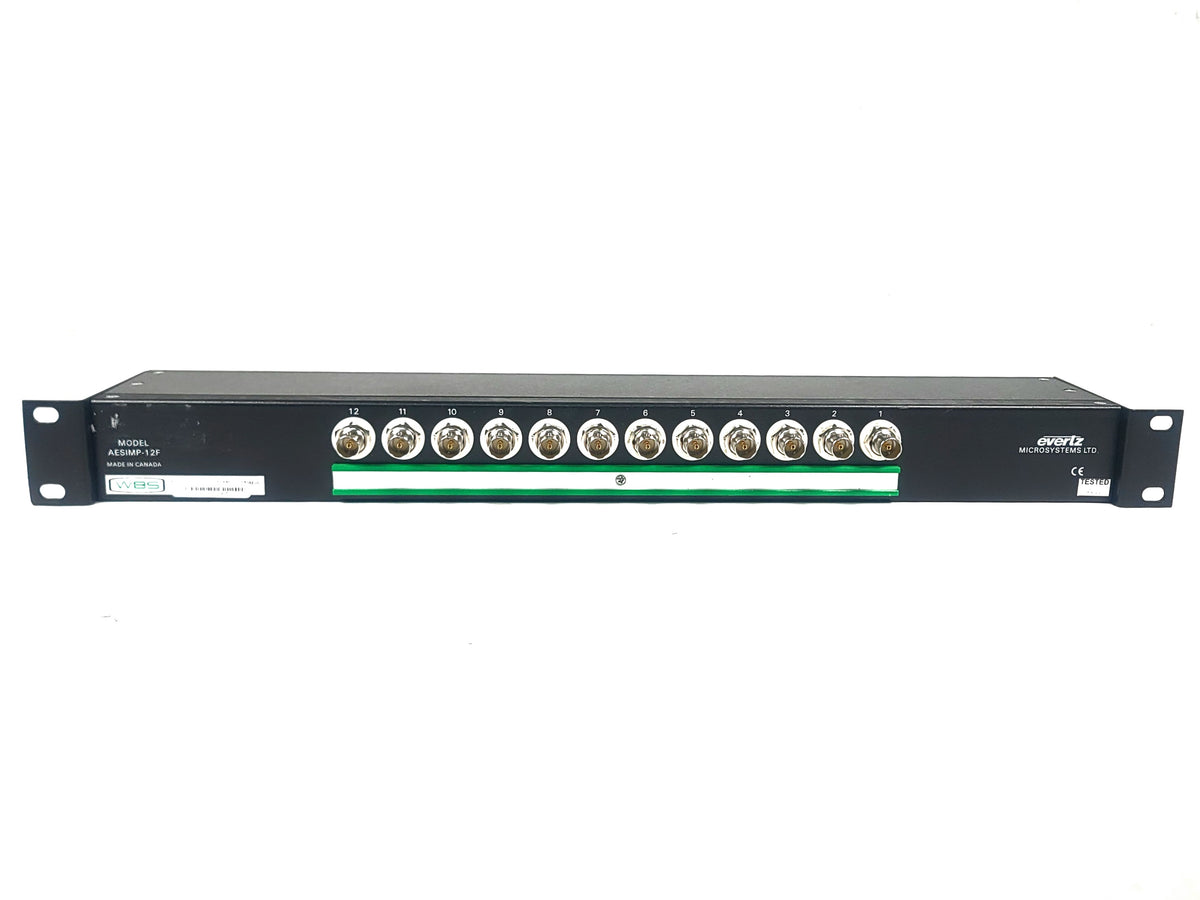

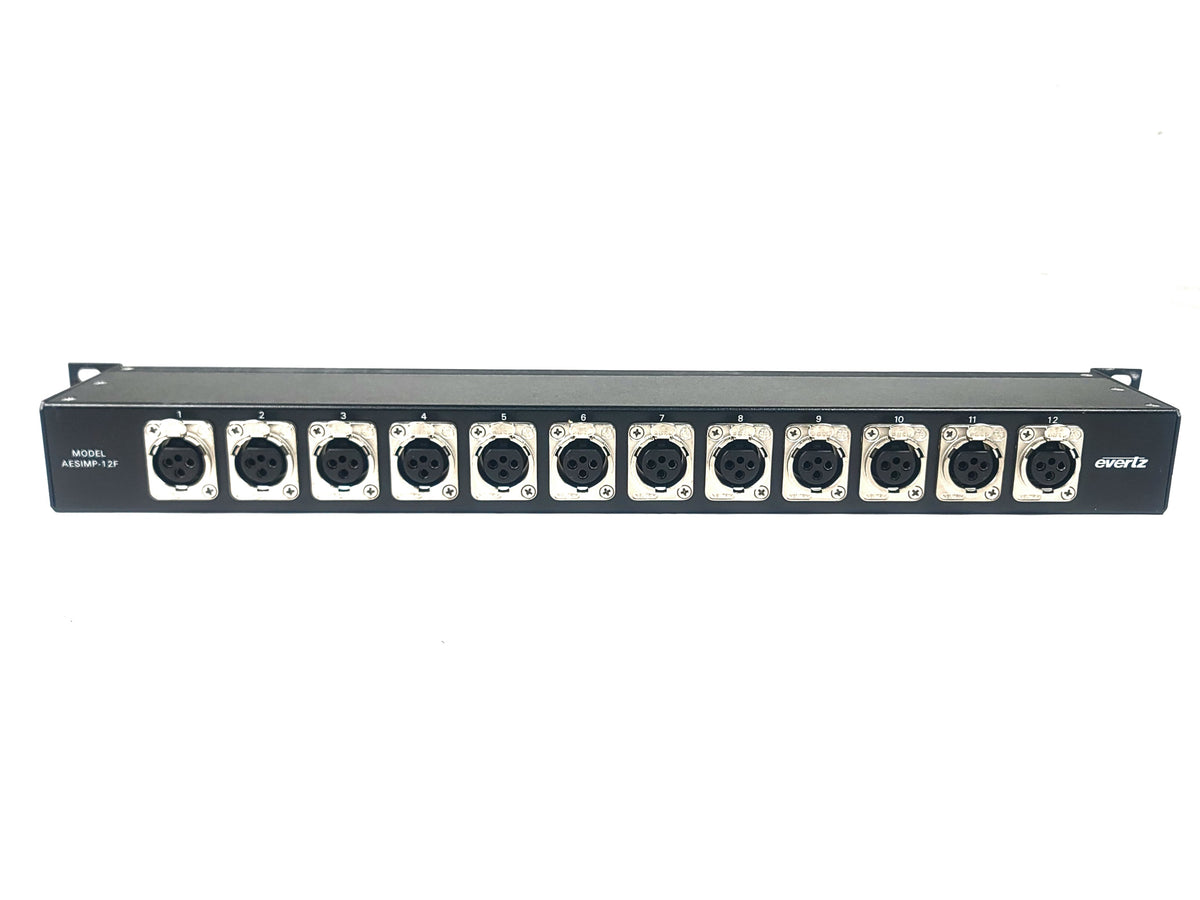

Operating entirely passively via internal conversion transformers, the AESIMP-12F requires no power supply. Because it relies on a transformer (with a 1.22:1 turns ratio), the conversion is inherently bi-directional, meaning it can translate a 110-ohm balanced signal down to a 75-ohm unbalanced signal, or vice-versa. The "12F" designation indicates that the balanced side of the panel is populated with twelve female XLR connectors, which correspond directly to twelve BNC connectors on the opposite side. The unit fully supports standard AES/EBU digital audio signals with sampling rates ranging from 22kHz up to 96kHz, ensuring bit-accurate transmission for high-resolution audio workflows. Additionally, the rack ears can be reversed, allowing either the XLR or the BNC side to face the front of the equipment rack depending on your patching needs.
