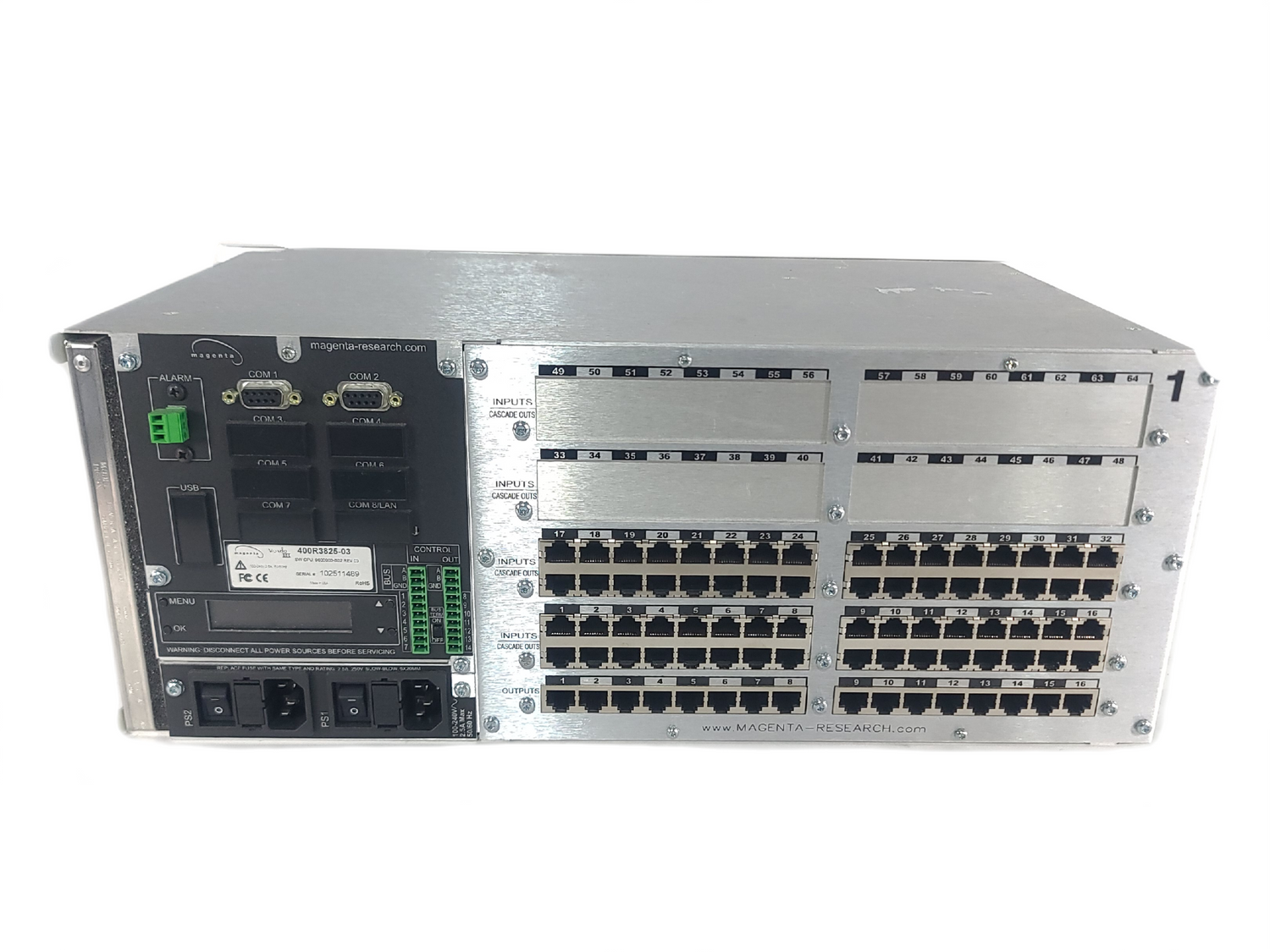

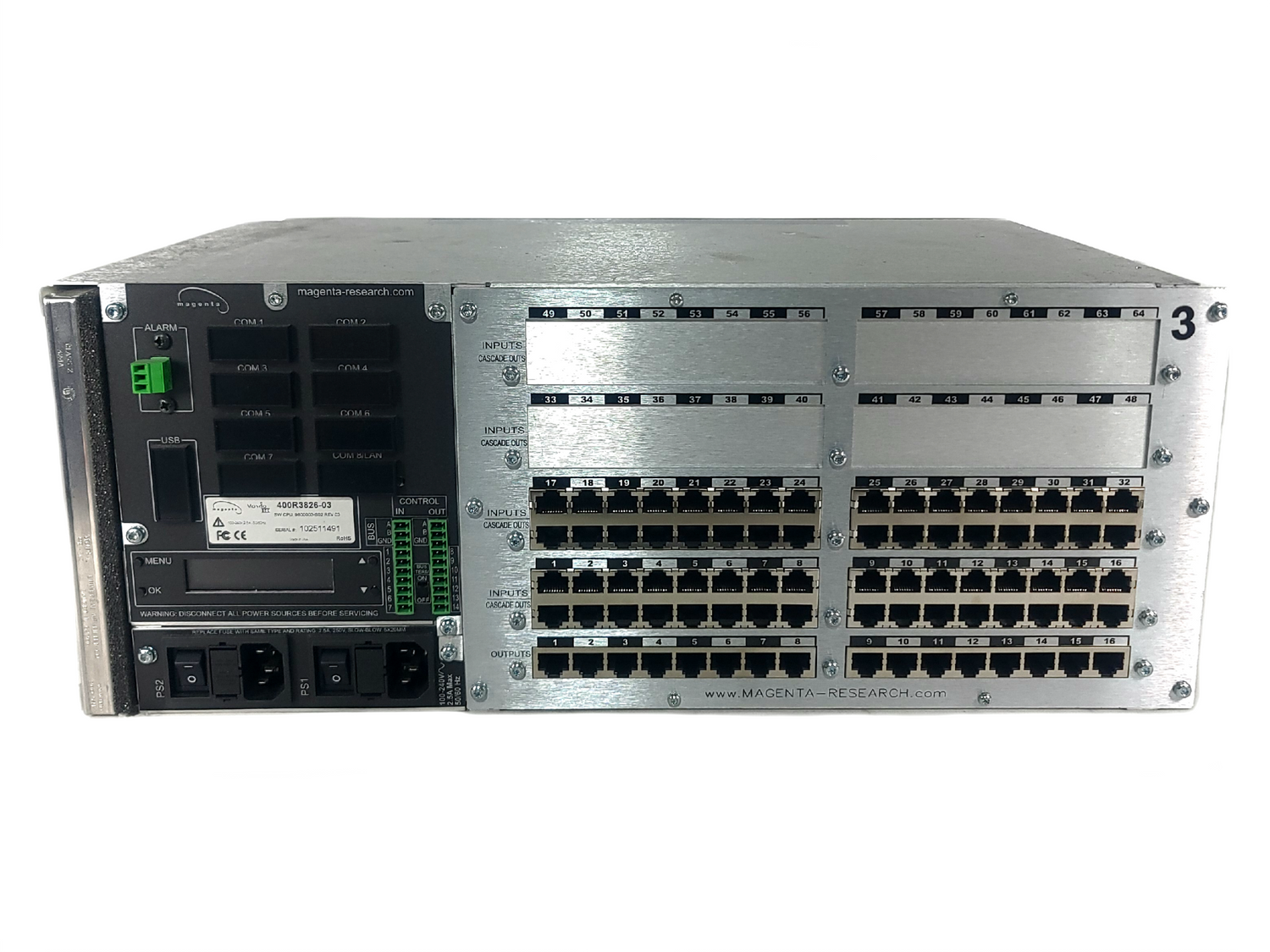

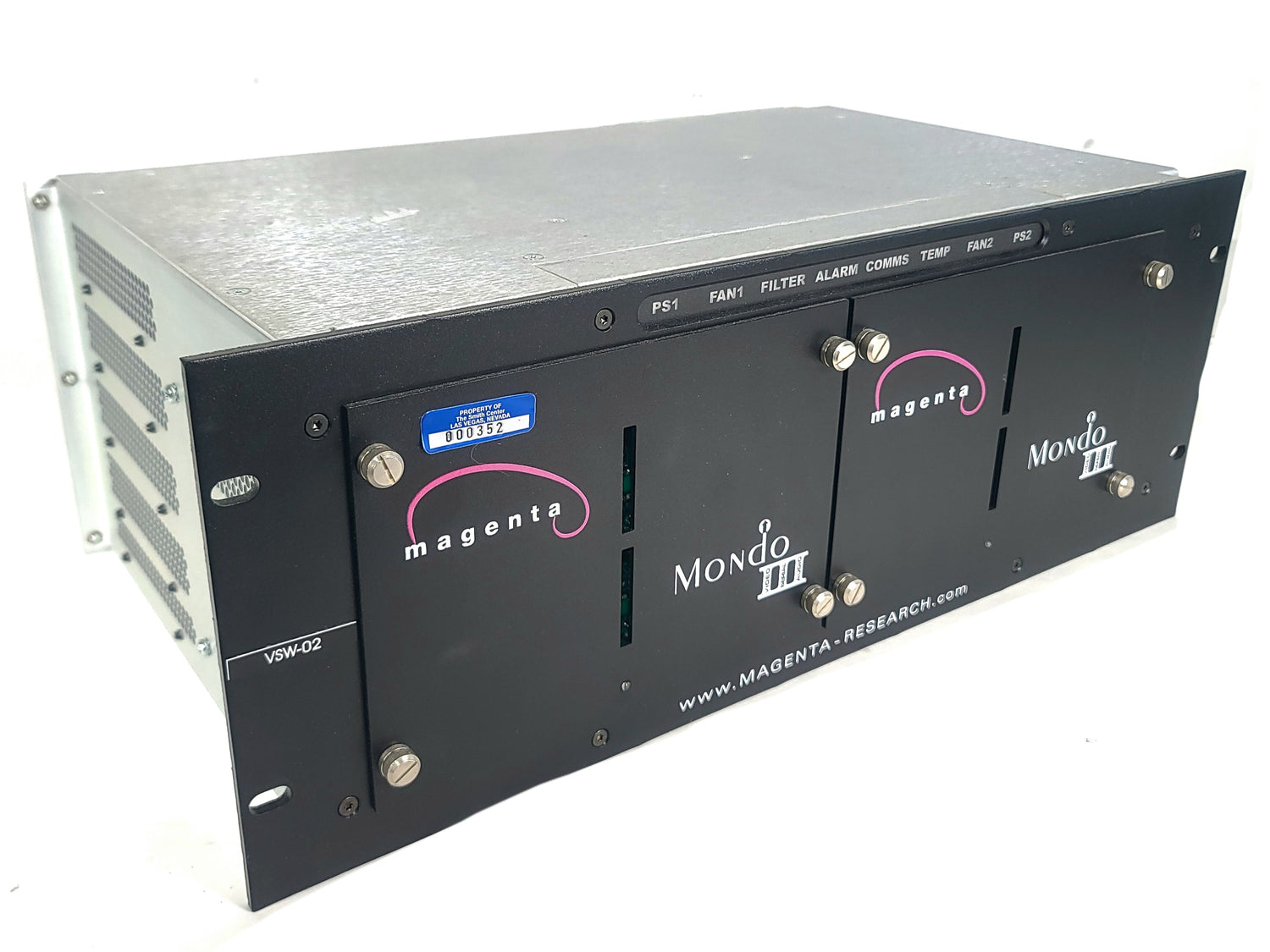

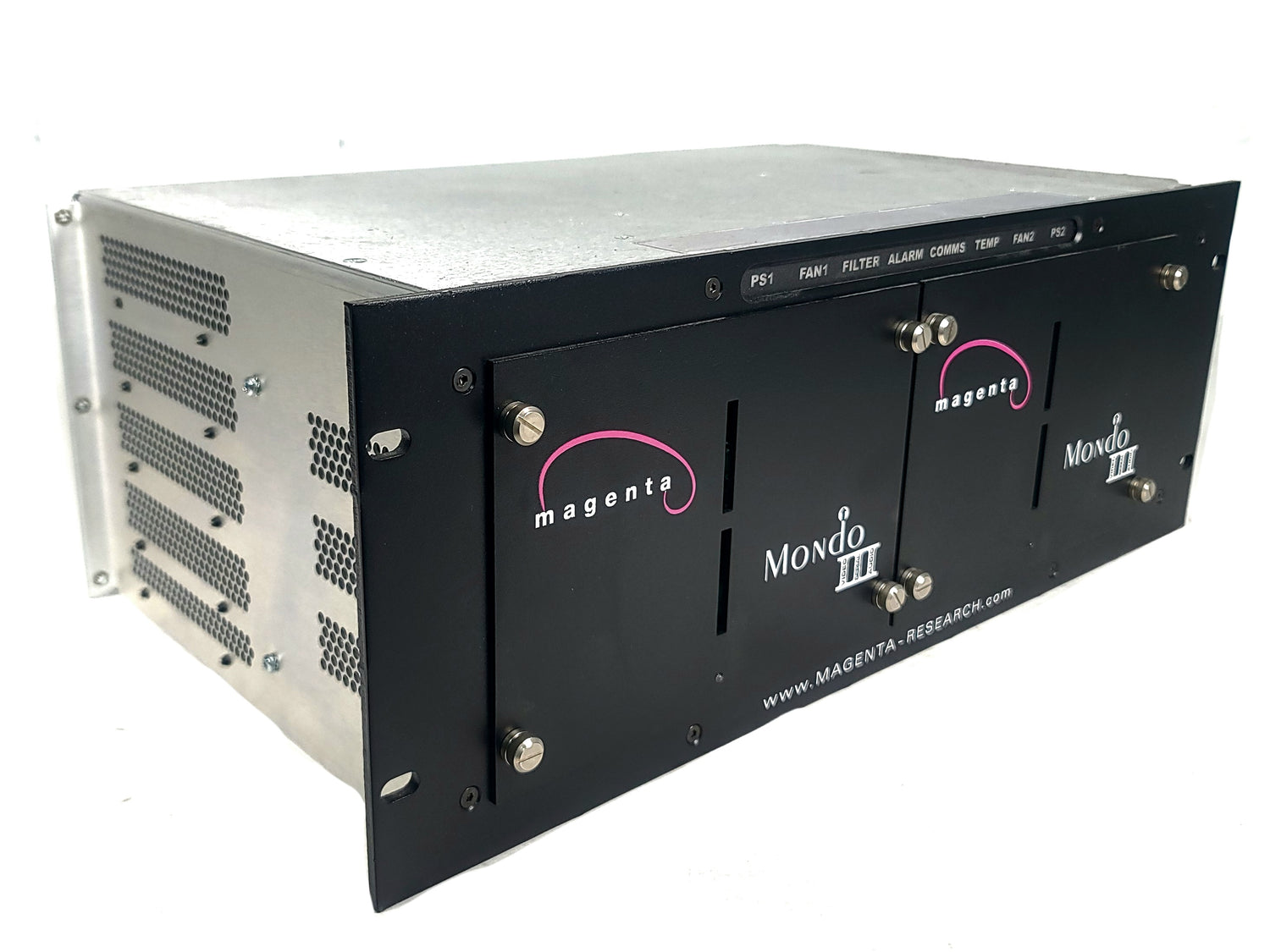

The Magenta Research Mondo Matrix III is a highly scalable, commercial-grade ⁠Unshielded Twisted Pair (UTP) full-matrix switching platform designed to route and extend high-definition video, stereo audio, and serial control signals over Cat5/Cat6 network cabling. Engineered primarily for large-scale digital signage networks, corporate complexes, and professional AV environments, the system features a modular architecture that can expand from a base ⁠16x16 configuration up to an industry-leading 256x512 matrix using field-upgradable I/O cards in increments of 16. By leveraging standard network infrastructure rather than traditional, bulky BNC-based RGB coaxial hardware, it slashes installation complexity, power consumption, and equipment costs while delivering an ultra-low command latency of just 50 nanoseconds.

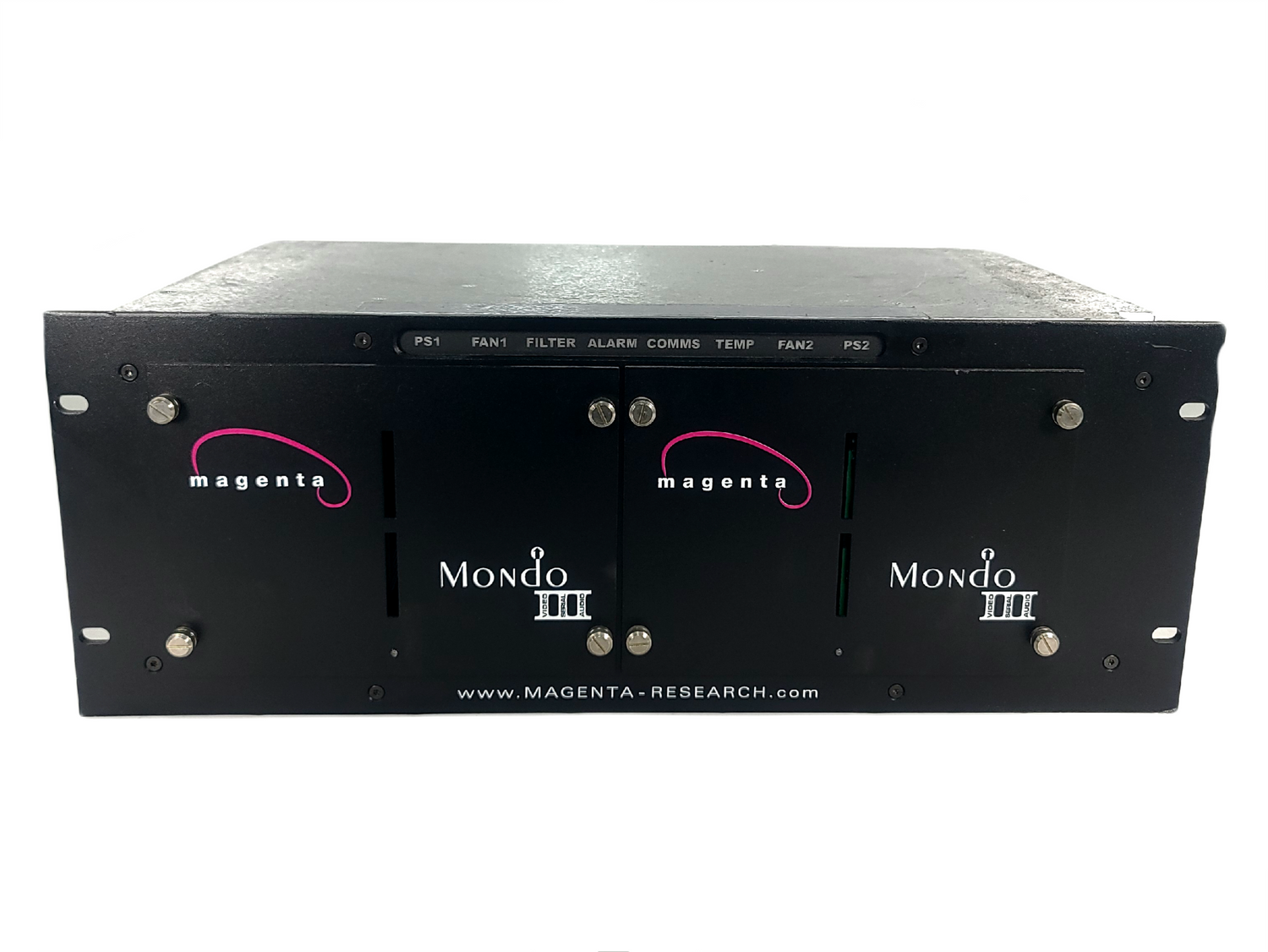

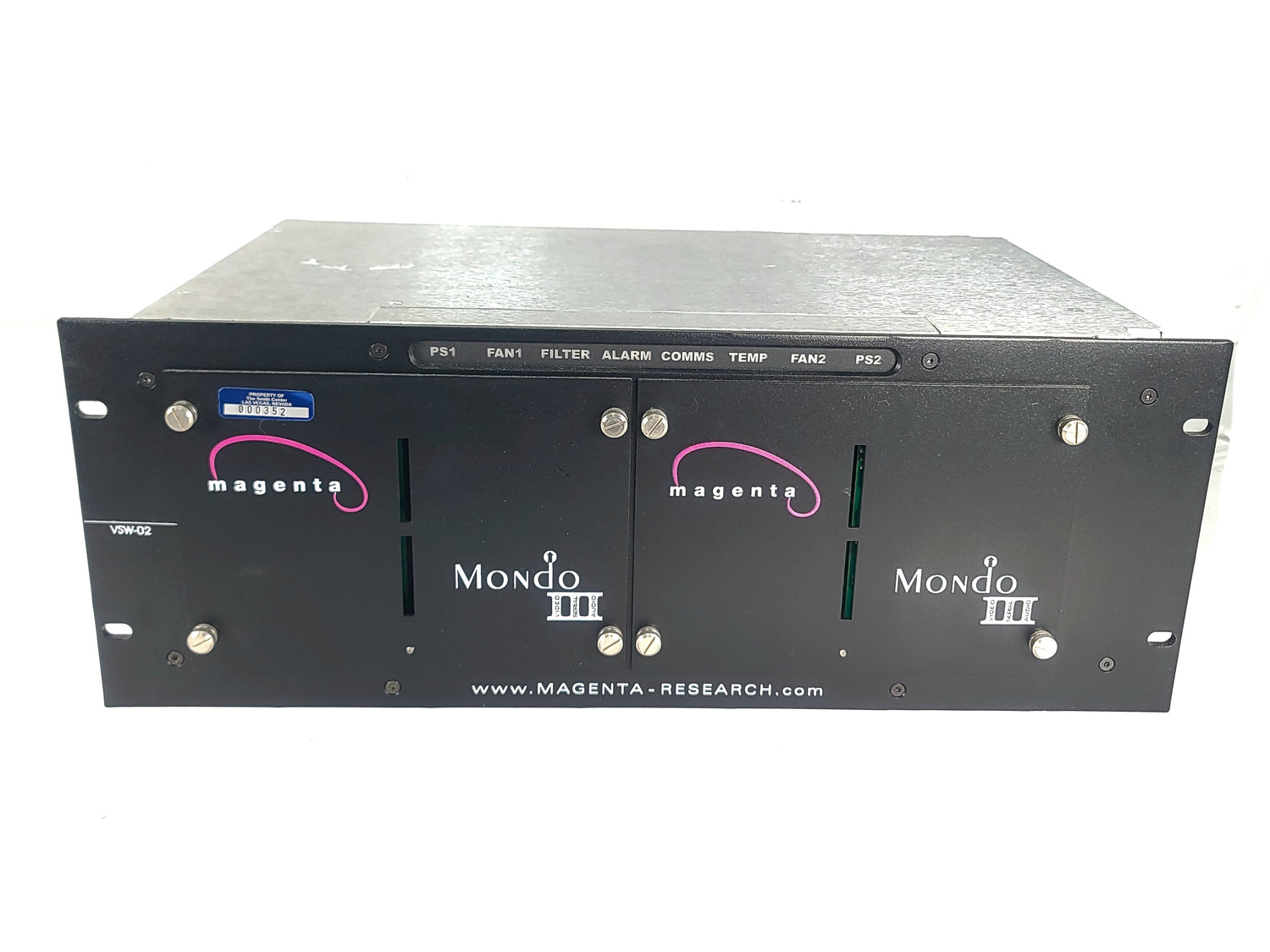

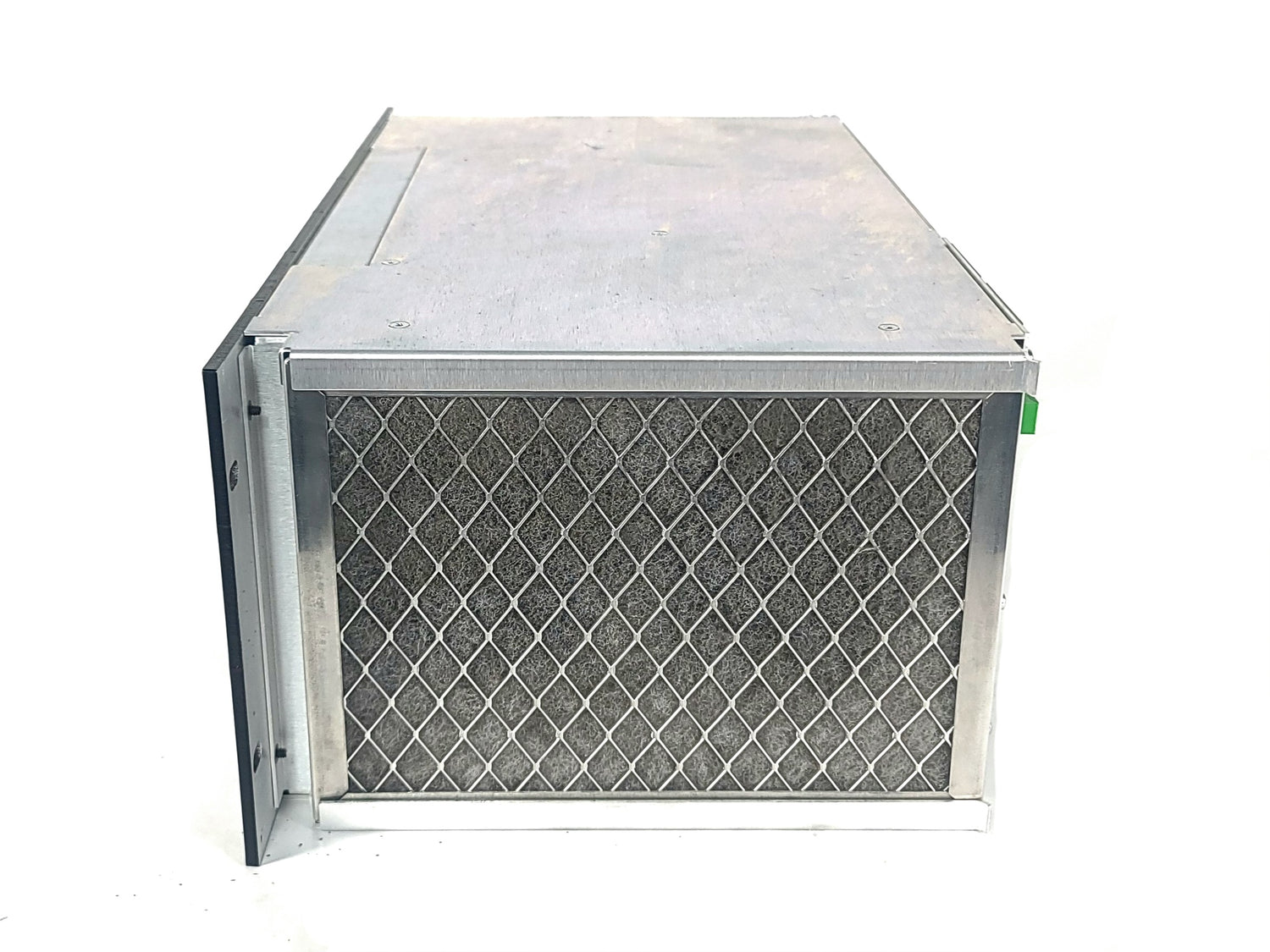

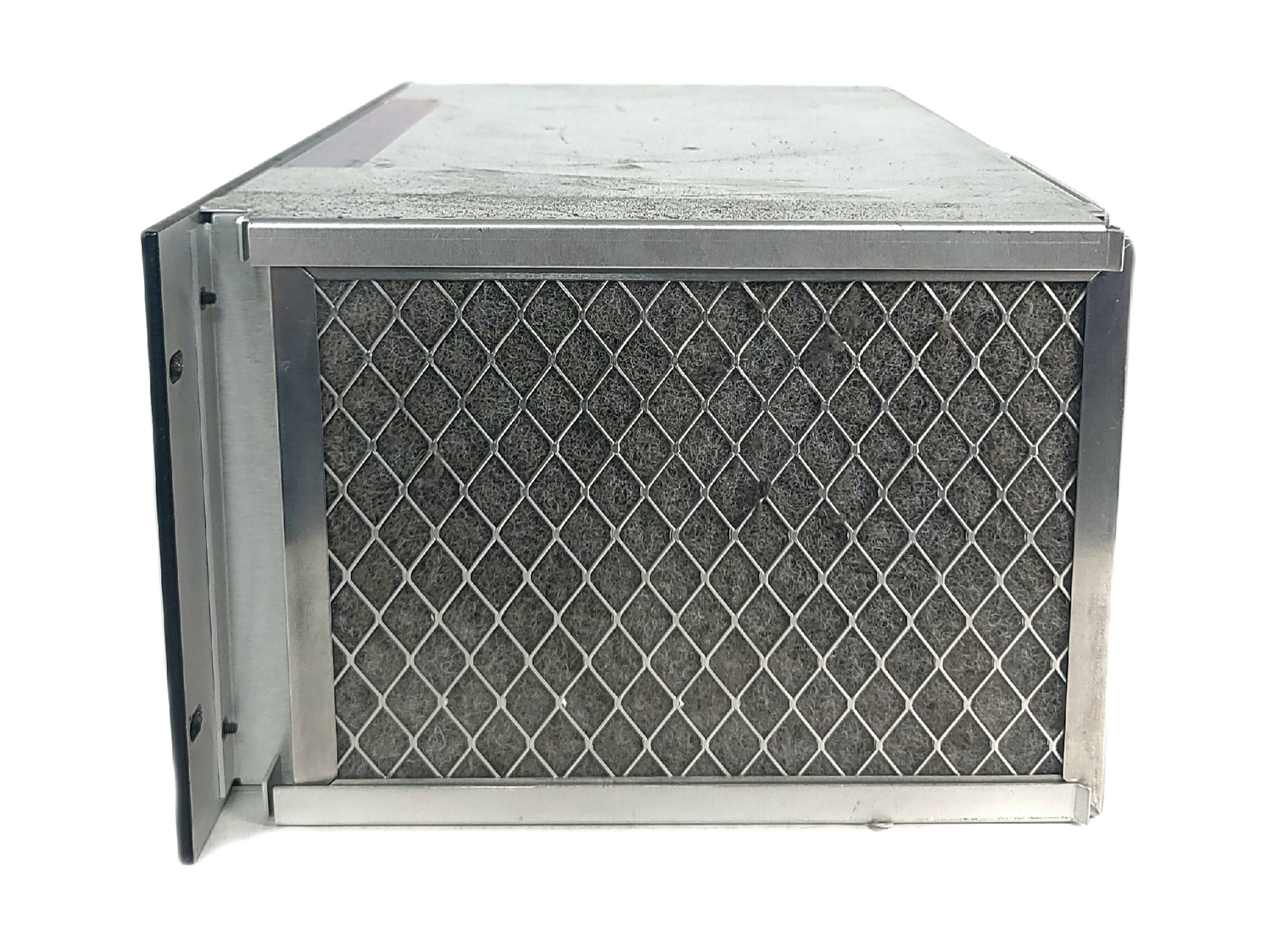

A defining feature of the Mondo III is its complete compatibility with the Magenta MultiView series, enabling the transmission of pristine 1920x1200 resolution video and accompanying signals up to distances of 2,000 feet (609 meters). The specialized Mondo III-SAP variant integrates advanced, addressable duplex serial routing capability, allowing digital signage managers to independently harvest operational metrics and diagnostic data directly from specific remote displays while concurrently pushing unique serial commands to others. System configuration and matrix cross-point mapping can be driven locally via an integrated front-panel touchscreen and backlit 2x16 character LCD, or remotely using native control software or third-party automated platforms from AMX and Crestron. The rugged chassis is purpose-built for continuous mission-critical applications, sporting true dual redundant power supplies, hot-swappable cooling fans, a replaceable air filter, and comprehensive front-panel status LED monitoring lamps.
