Martin Audio

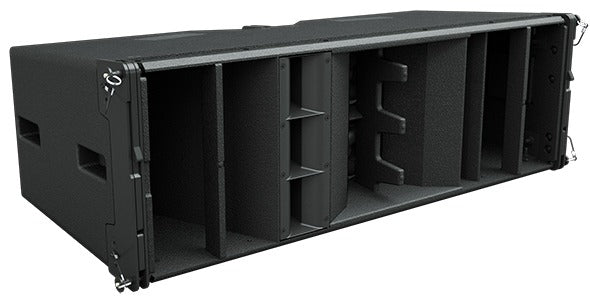

Martin Audio WPL 2 x 12" Bi-amp Three-way Line Array

$12,000.00 - $13,000.00

WPL is a 3-way bi-amp, 2 x 12” large format line array featuring scalable resolution optimization. This flexible approach to array optimization provides greatly improved coverage, consistency and control compared to a standard line array.

Wavefront Precision Longbow (WPL) now brings this high performance, control and flexibility to large-scale touring and install applications. Designed as a complete system with external iKON® multi-channel amplifiers, automated DISPLAY™ optimization software and VU-NET™ control platform, WPL provides financial accessibility to the top echelons of touring and install sound — from prestigious stadium concert and outdoor festivals, to high-specification arena and House of Worship installations.

View Product Features
  • 3-way bi-amp, 2 x 12” large format line array
  • All-horn, maximum-efficiency design
  • Exceptional signature sonic performance
  • Exemplary 90° horizontal constant directivity pattern control
  • External, dedicated, multi-channel Class D amplification
  • Scalable resolution for flexible optimisation of coverage, consistency and control
  • Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
  • Fast, integral 3-point rigging for up to 24 enclosures
  • Compact and light weight design with discreet side handles for ease of handling
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    WPL

    Martin Audio WPL 2 x 12" Bi-amp Three-way Line Array

    $12,000.00
    View Product
  • New

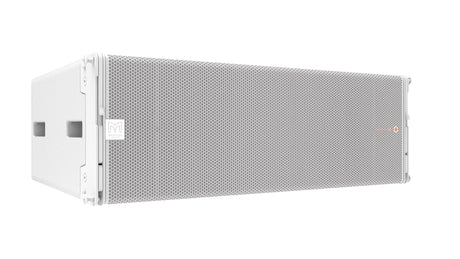

    WPL-W

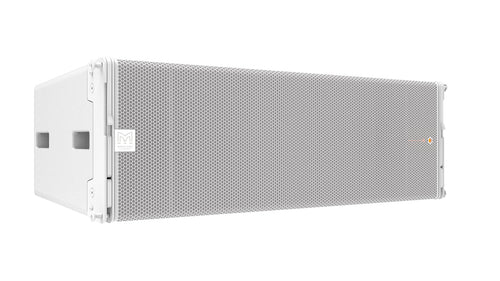

    Martin Audio WPL-W 2 x 12" Bi-amp Three-way Line Array, White

    $12,000.00
    View Product
  • New

    WPL-PU

    Martin Audio WPL-PU 2 x 12" Bi-amp Three-way Line Array, Weatherized

    $13,000.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the Martin Audio WPL 2 x 12" Bi-amp Three-way Line Array

Delivering unmatched sound quality, coverage consistency and control in an affordable package, this uniquely flexible and upgradeable approach has been rapidly adopted by sound rental and installation companies worldwide to become the company’s fastest ever selling line array series.

Wavefront Precision Longbow (WPL) now brings this high performance, control and flexibility to large-scale touring and install applications. Designed as a complete system with external iKON® multi-channel amplifiers, automated DISPLAY™ optimisation software and VU-NET™ control platform, WPL provides financial accessibility to the top echelons of touring and install sound — from prestigious stadium concert and outdoor festivals, to high-specification arena and House of Worship installations.

The complete system philosophy guarantees that WPL arrays perform predictably and effortlessly to their design maximum, as well as ensuring that they are compatible with other WPL systems throughout the world.

Key Features

  • 3-way bi-amp, 2 x 12” large format line array
  • All-horn, maximum-efficiency design
  • Exceptional signature sonic performance
  • Exemplary 90° horizontal constant directivity pattern control
  • External, dedicated, multi-channel Class D amplification
  • Scalable resolution for flexible optimisation of coverage, consistency and control
  • Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
  • Fast, integral 3-point rigging for up to 24 enclosures
  • Compact and light weight design with discreet side handles for ease of handling

Martin Audio WPL 2 x 12" Bi-amp Three-way Line Array Specs

TYPE
Three-way, bi-amp line array element
FREQUENCY RESPONSE
52Hz-18kHz ± 3dB
DRIVERS
LF: 2 x 12” (300mm)/3” (75mm) voice coil, ultra-long excursion, neodymium magnet drivers, Hybrid® bass horn loaded MF: 2 x 6.5” (165mm)/2” (50mm) coil, neodymium magnet drivers, horn loaded HF: 3 x 1” (25mm) exit neodymium magnet compression drivers, horn loaded
SYSTEM RESOLUTION
1 or 2 enclosures per pair of amplifier channels (Bi-amp)
RATED POWER
LF: 800 W AES, 3200 W peak MF/HF: 500 W AES, 2000 W peak
MAXIMUM SPL
LF: 139dB MF: 140dB HF: 145dB
NOMINAL IMPEDANCE
LF: 8 ohms, MF + HF: 8 ohms
DISPERSION (-6dB)
90º horizontal (-6dB), 120º horizontal (-10dB) 7.5° vertical
CROSSOVER
320Hz active, 4kHz internal passive
ENCLOSURE
Vertical trapezoid with 3.75º wall angle, multi-laminate birch and poplar-ply construction
FINISH
Black textured paint
PROTECTIVE GRILLE
Black HEX perforated steel
CONNECTORS
2 x NL4 type
INPUT CONNECTIONS
LF: 1+/1- MF + HF: 2+/2-
FITTINGS
3-point rigging system 4 x side pocket handles
FLOWN ARRAY MAXIMUM
24 enclosures in single array
DIMENSIONS
(W) 1136mm x (H) 371mm x (D) 526mm (W) 44.7in x (H) 14.6in x (D) 20.7in
WEIGHT
64Kg (141lbs)

Key Features

  • 3-way bi-amp, 2 x 12” large format line array
  • All-horn, maximum-efficiency design
  • Exceptional signature sonic performance
  • Exemplary 90° horizontal constant directivity pattern control
  • External, dedicated, multi-channel Class D amplification
  • Scalable resolution for flexible optimisation of coverage, consistency and control
  • Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
  • Fast, integral 3-point rigging for up to 24 enclosures
  • Compact and light weight design with discreet side handles for ease of handling
