Noctua NF-F12 5V Premium Quiet Fan

The Noctua NF-F12 5V is a premium 120 mm pressure-optimized cooling fan designed for applications requiring efficient airflow, high static pressure, and exceptionally quiet operation from a 5 V power source. It combines Noctua’s Focused Flow frame with a seven-blade Heptaperf impeller and eleven stator guide vanes to produce concentrated airflow suitable for heatsinks, ventilation openings, compact electronics, networking equipment, embedded systems, and other demanding 5 V cooling applications. The standard version uses a 3-pin connector and is specifically designed for 5 V operation rather than conventional 12 V PC fan power.

The fan incorporates Noctua’s SSO2 bearing and Smooth Commutation Drive technology to provide smooth, stable, and long-lasting operation. At its maximum rated speed of 1500 RPM, it delivers up to 93.4 m³/h of airflow while producing a maximum acoustic noise level of only 22.4 dB(A). Its static pressure capability of 2.61 mm H₂O makes it particularly suitable for applications where airflow must pass through restrictive components such as filters, grilles, ducts, heatsinks, or densely packed electronic assemblies.

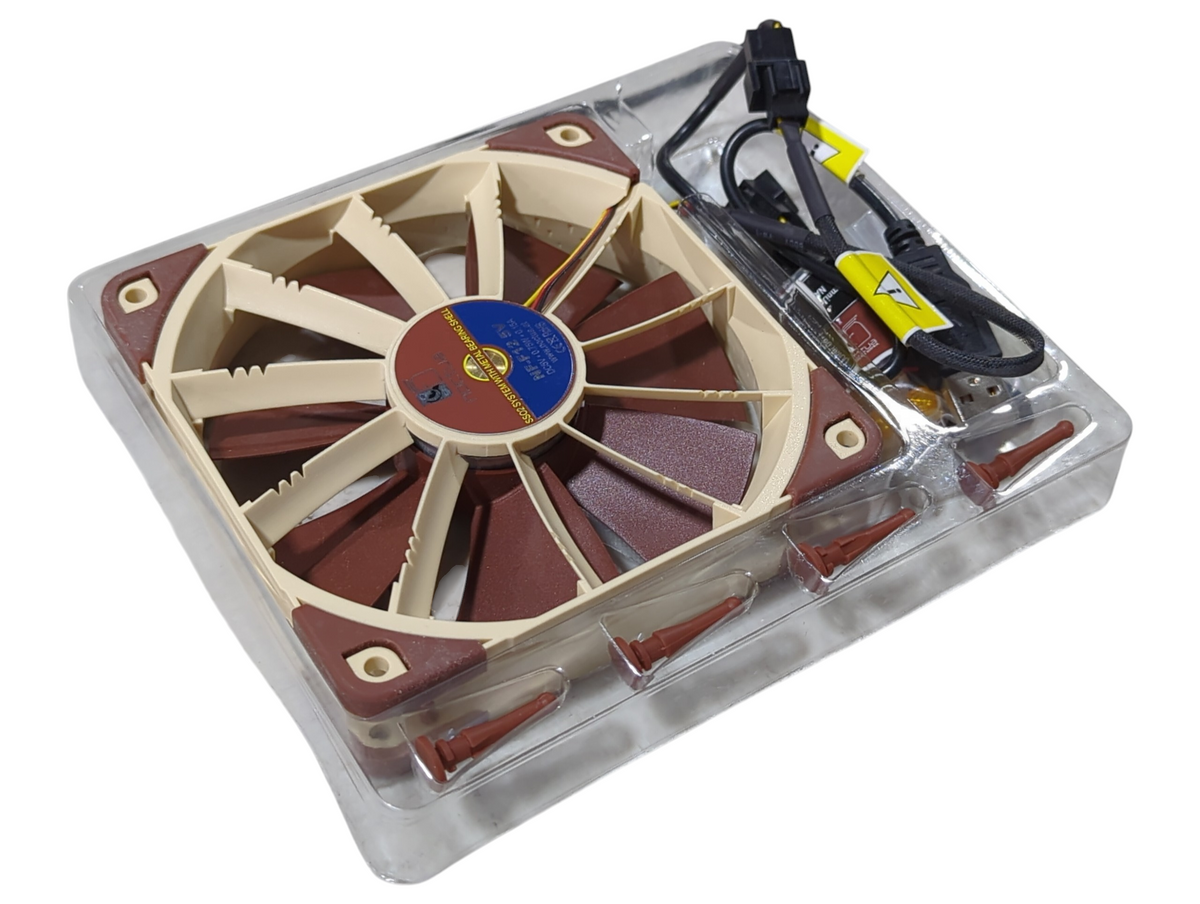

The included USB power adaptor cable expands the fan's versatility beyond conventional fan-header applications, allowing it to operate from USB host ports, power banks, or suitable USB power supplies. The package also includes a 30 cm extension cable, anti-vibration mounts, fan screws, and an OmniJoin adaptor set for integration with compatible proprietary 5 V fan connections. The 3-pin interface provides ground, +5 V supply, and RPM signal connections, while integrated polarity protection helps protect the fan against incorrect power polarity.

This particular product configuration is therefore well suited to portable cooling, electronics projects, networking and communications equipment, custom 5 V cooling installations, and replacement of existing 5 V fans. The NF-F12 5V is specified for continuous-duty applications with an MTTF exceeding 150,000 hours and carries Noctua’s 6-year manufacturer warranty. The supplied original-box accessory set further enhances installation flexibility while retaining the fan's compact 120 mm form factor.
