SKU: C1978-22

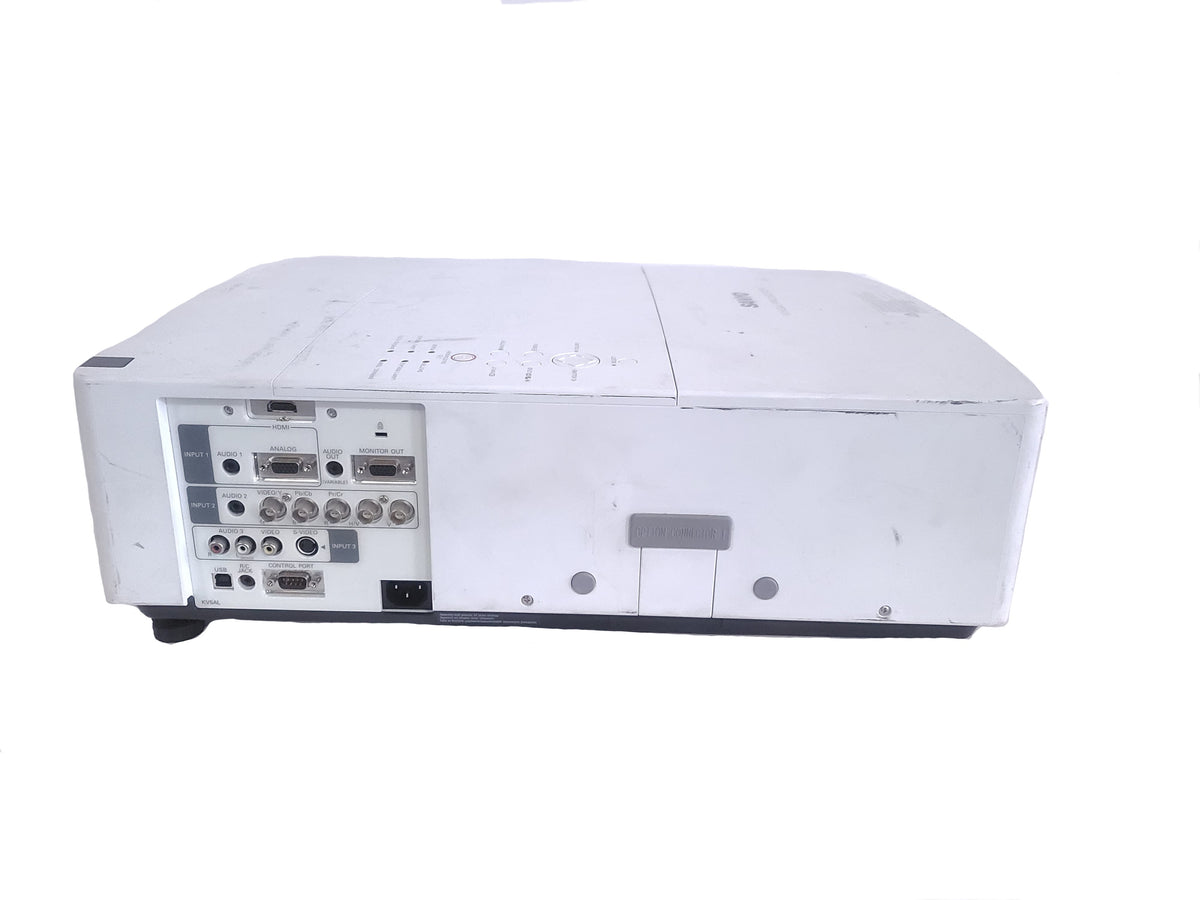

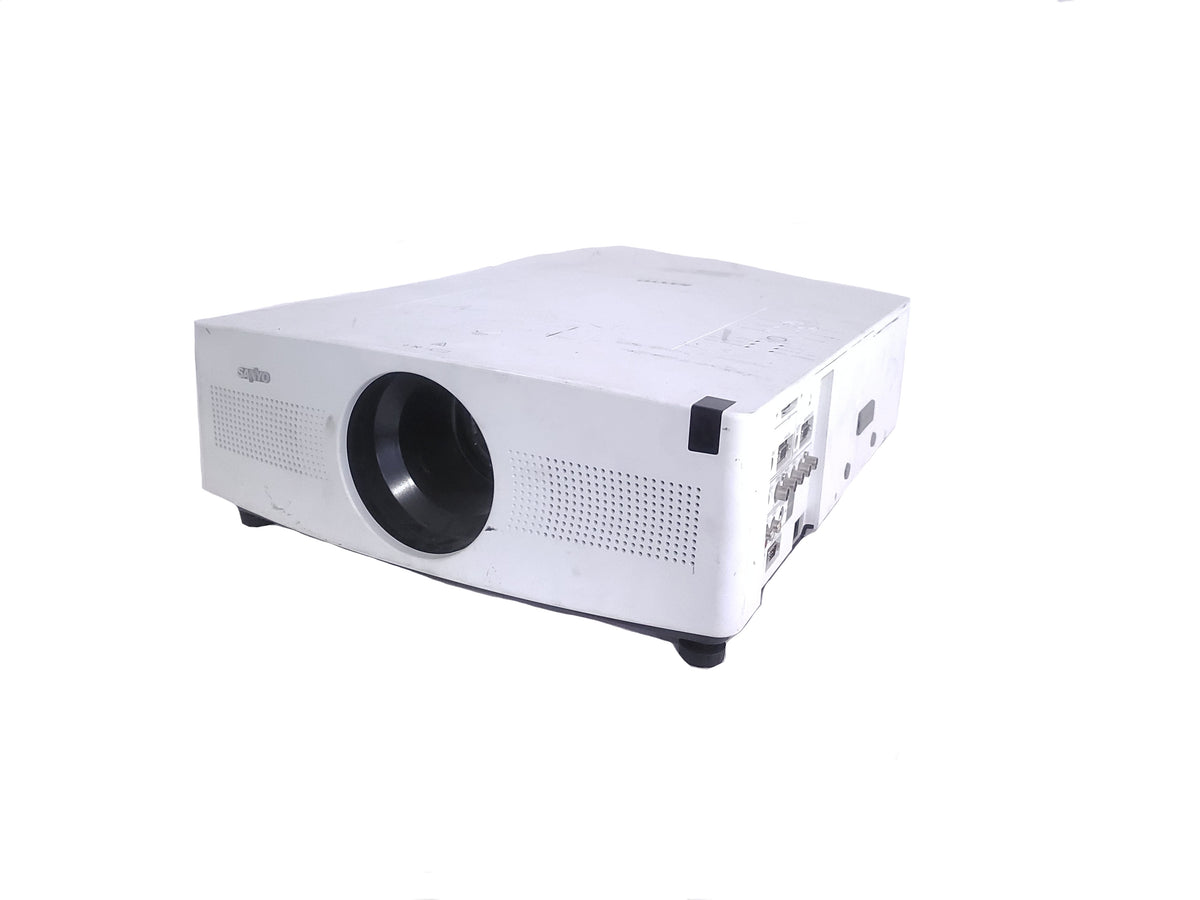

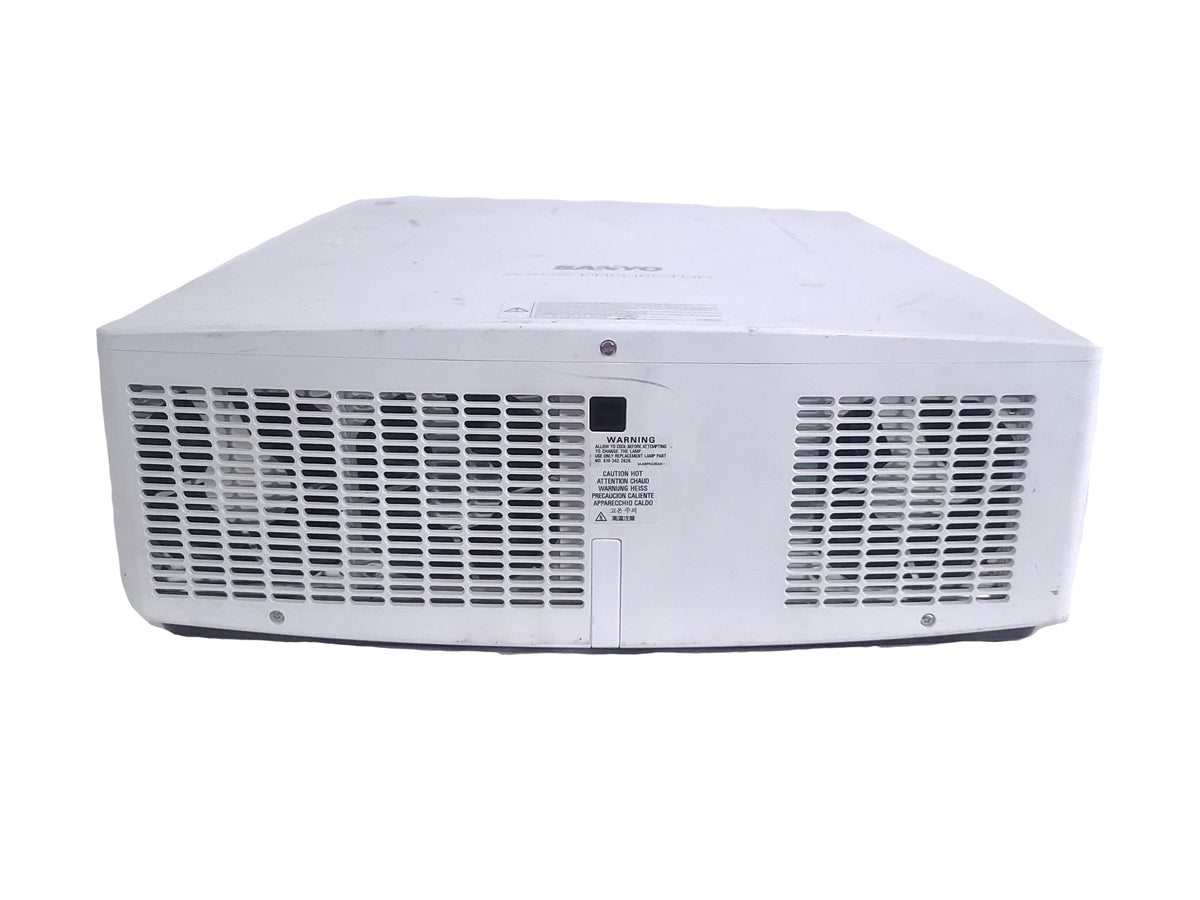

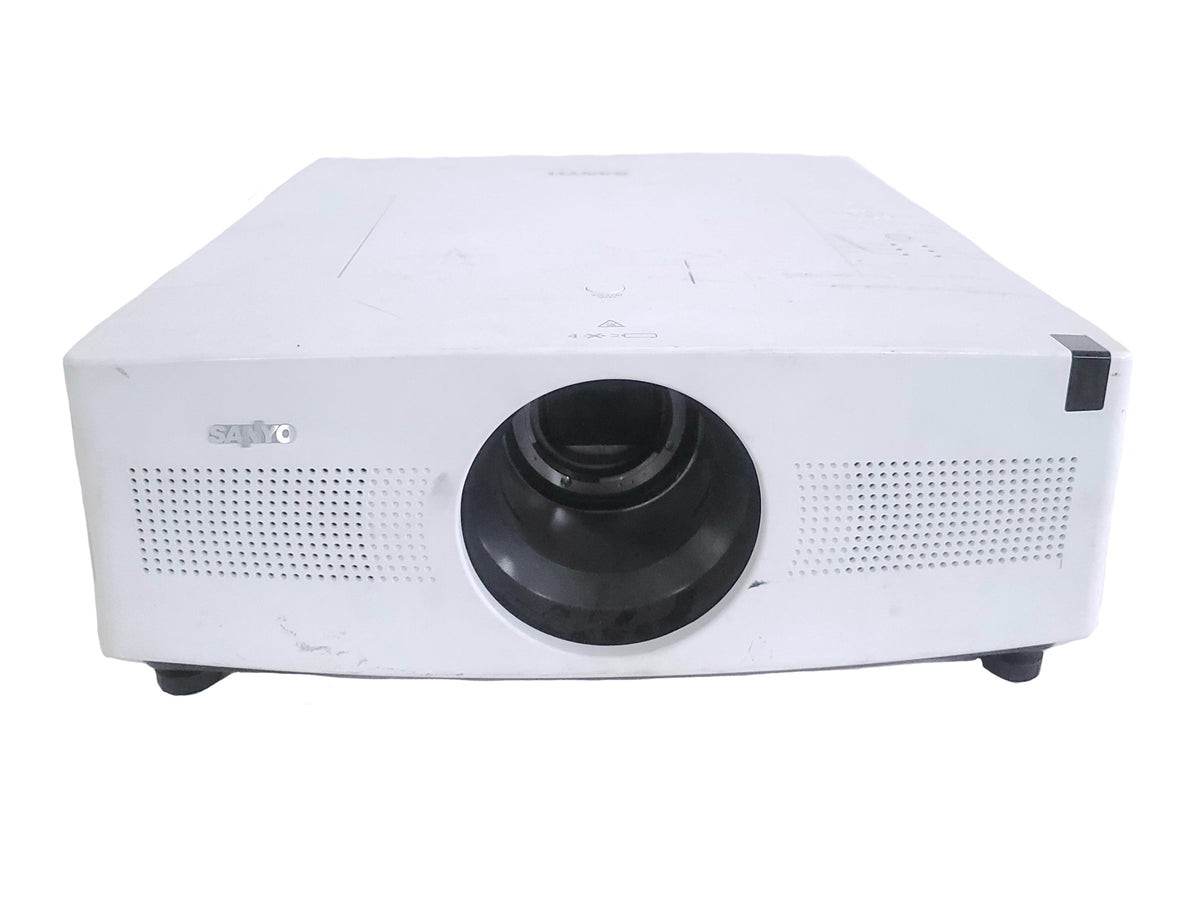

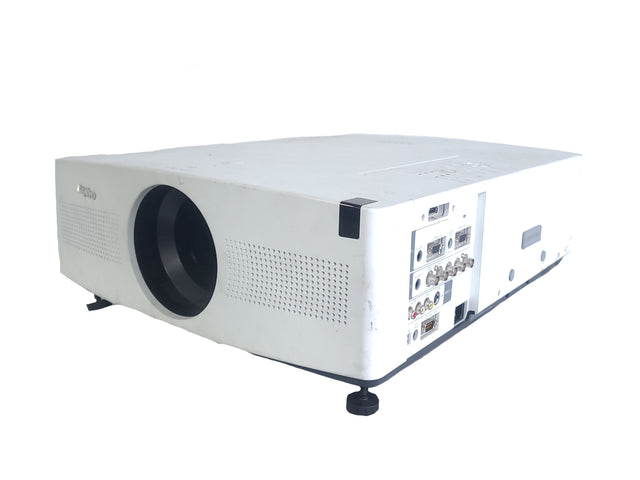

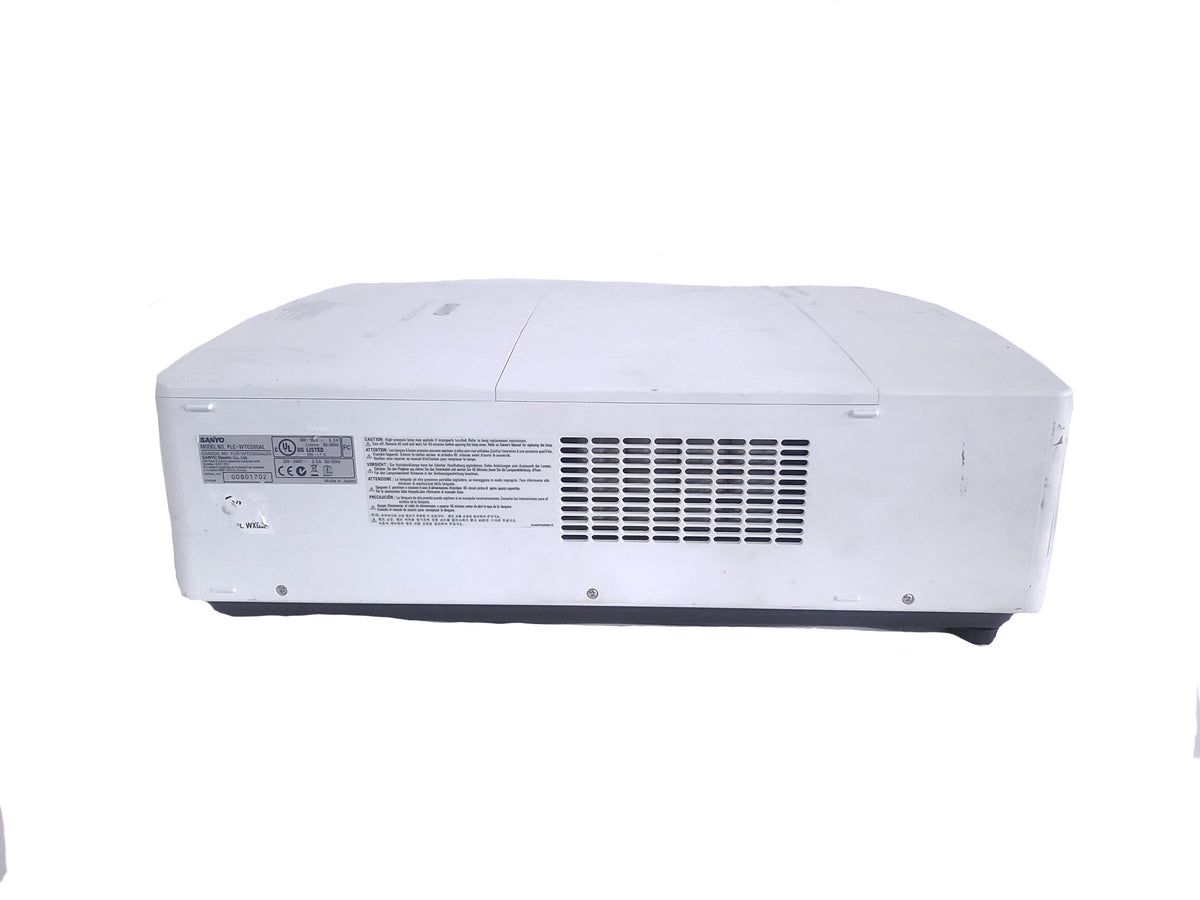

Sanyo PLC-WTC500AL 5,000 Lumens 5K WUXGA LCD Large Venue Projector NO LENS w/ Remote

$250.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Sanyo PLC-WTC500AL is a professional large-venue projector engineered to deliver 5,000 ANSI lumens of brightness and WXGA (1280 x 800) native resolution for demanding corporate, educational, and house of worship applications. Featuring 3LCD technology with three 0.95-inch p-Si TFT active matrix panels, this projector produces vibrant, high-definition images with a 3000:1 contrast ratio suitable for screen sizes up to 300 inches diagonal. The unit incorporates an advanced dual-lamp system with automatic lamp selection, allowing uninterrupted presentations by instantly switching between lamps when one reaches the end of its life, with individual lamp life rated at 2500 hours in standard mode and 3000 hours in Eco mode. Please note this specific unit is offered without a lens, providing an opportunity to configure the projector with an optional lens matched to specific installation requirements. Designed for flexible installation, the PLC-WTC500AL incorporates motorized lens shift with vertical adjustment (+50% to 0%) and horizontal adjustment (±15%), enabling precise image alignment without physically moving the projector. Professional installation features include motorized zoom and focus when equipped with optional powered lenses, perpendicular omnidirectional projection capability, and an automatic filter replacement system that monitors filter condition and replaces it automatically when clogging is detected. The comprehensive connectivity suite includes DVI-D, HDMI, 5BNC RGBHV, VGA in/out, component video, S-Video, composite video, RS-232, USB, and RJ-45 Ethernet for networked control via optional Network Manager. The included remote control supports both wired and wireless operation with PC mouse functionality, laser pointer, and eight selectable remote codes to prevent interference in multi-projector installations. Read more

Features

  • 5,000 ANSI Lumens Brightness delivers powerful illumination for large venues with WXGA 1280 x 800 native resolution and 3000:1 contrast ratio
  • Dual 330W Lamp System with automatic lamp selection ensures uninterrupted presentations with 2500-hour lamp life (standard) and 3000-hour (Eco mode)
  • Motorized Lens Shift offers vertical (+50% to 0%) and horizontal (±15%) adjustment range for flexible installation without projector relocation
  • Automatic Filter Replacement System monitors and replaces filter automatically when clogging is detected for reduced maintenance
  • Comprehensive Connectivity includes DVI-D, HDMI, 5BNC, VGA, component, S-Video, composite, RS-232, USB, and RJ-45 Ethernet for networked control
  • No Lens Included offered without lens; compatible with optional LNS-W10 (short zoom), LNS-T11 (long zoom), and LNS-W11 (fixed short-throw) lenses

Business Financing Options Avaiable

View Available Financing

The Sanyo PLC-WTC500AL is a professional large-venue projector engineered to deliver 5,000 ANSI lumens of brightness and WXGA (1280 x 800) native resolution for demanding corporate, educational, and house of worship applications. Featuring 3LCD technology with three 0.95-inch p-Si TFT active matrix panels, this projector produces vibrant, high-definition images with a 3000:1 contrast ratio suitable for screen sizes up to 300 inches diagonal. The unit incorporates an advanced dual-lamp system with automatic lamp selection, allowing uninterrupted presentations by instantly switching between lamps when one reaches the end of its life, with individual lamp life rated at 2500 hours in standard mode and 3000 hours in Eco mode. Please note this specific unit is offered without a lens, providing an opportunity to configure the projector with an optional lens matched to specific installation requirements. Designed for flexible installation, the PLC-WTC500AL incorporates motorized lens shift with vertical adjustment (+50% to 0%) and horizontal adjustment (±15%), enabling precise image alignment without physically moving the projector. Professional installation features include motorized zoom and focus when equipped with optional powered lenses, perpendicular omnidirectional projection capability, and an automatic filter replacement system that monitors filter condition and replaces it automatically when clogging is detected. The comprehensive connectivity suite includes DVI-D, HDMI, 5BNC RGBHV, VGA in/out, component video, S-Video, composite video, RS-232, USB, and RJ-45 Ethernet for networked control via optional Network Manager. The included remote control supports both wired and wireless operation with PC mouse functionality, laser pointer, and eight selectable remote codes to prevent interference in multi-projector installations. Read more

Features

  • 5,000 ANSI Lumens Brightness delivers powerful illumination for large venues with WXGA 1280 x 800 native resolution and 3000:1 contrast ratio
  • Dual 330W Lamp System with automatic lamp selection ensures uninterrupted presentations with 2500-hour lamp life (standard) and 3000-hour (Eco mode)
  • Motorized Lens Shift offers vertical (+50% to 0%) and horizontal (±15%) adjustment range for flexible installation without projector relocation
  • Automatic Filter Replacement System monitors and replaces filter automatically when clogging is detected for reduced maintenance
  • Comprehensive Connectivity includes DVI-D, HDMI, 5BNC, VGA, component, S-Video, composite, RS-232, USB, and RJ-45 Ethernet for networked control
  • No Lens Included offered without lens; compatible with optional LNS-W10 (short zoom), LNS-T11 (long zoom), and LNS-W11 (fixed short-throw) lenses

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Sanyo PLC-WTC500AL 5,000 Lumens 5K WUXGA LCD Large Venue Projector NO LENS w/ Remote

The Sanyo PLC-WTC500AL is a professional-grade, large venue multimedia projector engineered to deliver exceptional brightness and long-term reliability in demanding environments like lecture halls, boardrooms, and houses of worship. Utilizing a high-performance 3LCD 3-chip display system, it generates a powerful 5,000 ANSI lumens of brightness paired with a 3,000:1 contrast ratio, ensuring vivid, color-accurate images even in rooms with high ambient light. Note that while some historical product titles mistakenly reference WUXGA or 5K phrasing, the hardware natively features a widescreen WXGA (1280 x 800) resolution with a 16:10 aspect ratio. Sold without a standard lens, it grants integration flexibility by allowing professionals to select from multiple optional short-throw or long-range bayonet lenses to match their specific throw distance requirements.

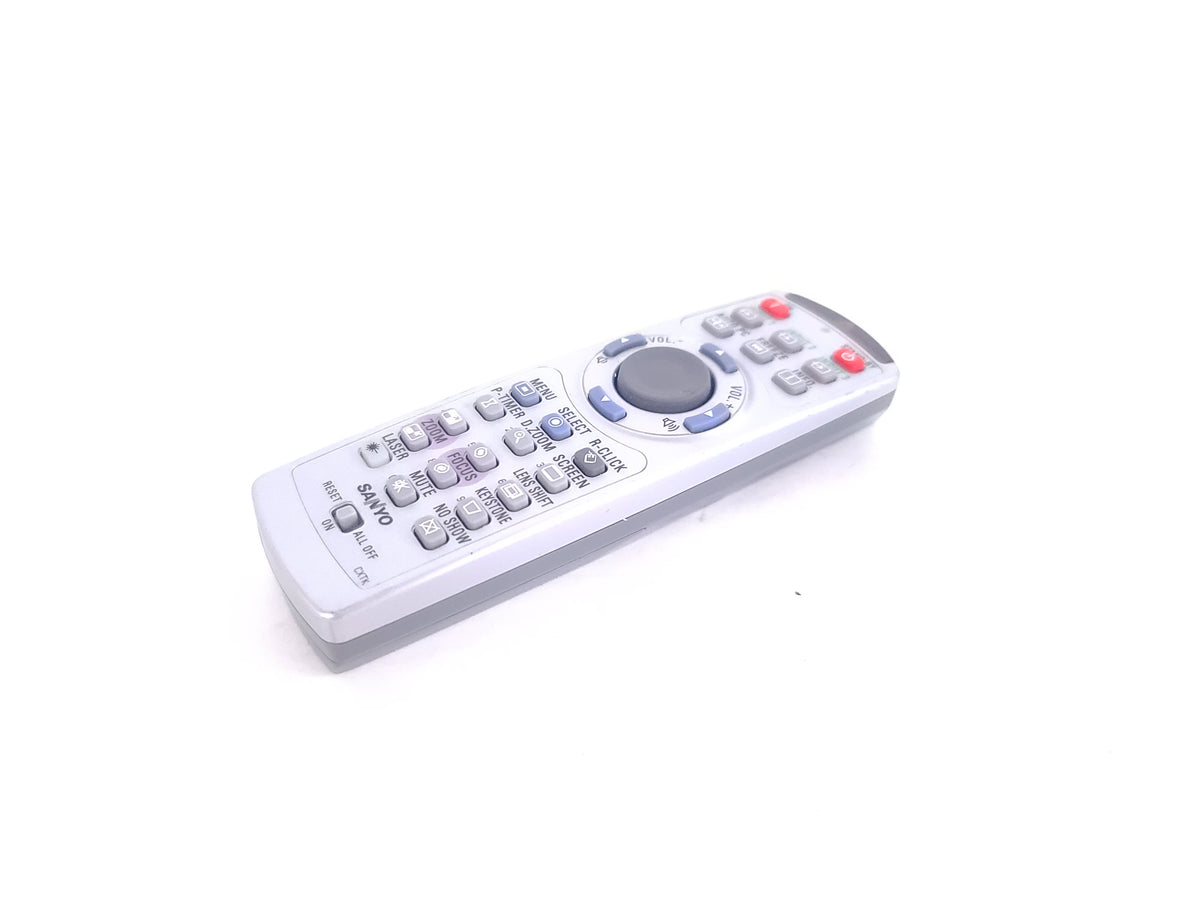

This projector is highly regarded for its low-maintenance, industrial architecture, notably featuring a fail-safe dual-lamp system and an Automated Filter Replacement (AMF) design. The dual-lamp setup houses two 330W NSHA lamps that can operate sequentially; if the primary lamp fails, the projector automatically switches to the secondary onboard spare, ensuring uninterrupted 24/7 operation for digital signage or high-stakes events. Simultaneously, its internal AMF system automatically scrolls to a fresh section of a ten-filter cartridge whenever it detects air blockage, minimizing manual upkeep. To streamline physical positioning, the unit includes motorized horizontal and vertical lens shift alongside powered zoom and focus, allowing installers to easily dial in settings from the ground using the multi-use remote control.

Key Features

  • 5,000 ANSI Lumens Brightness delivers powerful illumination for large venues with WXGA 1280 x 800 native resolution and 3000:1 contrast ratio
  • Dual 330W Lamp System with automatic lamp selection ensures uninterrupted presentations with 2500-hour lamp life (standard) and 3000-hour (Eco mode)
  • Motorized Lens Shift offers vertical (+50% to 0%) and horizontal (±15%) adjustment range for flexible installation without projector relocation
  • Automatic Filter Replacement System monitors and replaces filter automatically when clogging is detected for reduced maintenance
  • Comprehensive Connectivity includes DVI-D, HDMI, 5BNC, VGA, component, S-Video, composite, RS-232, USB, and RJ-45 Ethernet for networked control
  • No Lens Included offered without lens; compatible with optional LNS-W10 (short zoom), LNS-T11 (long zoom), and LNS-W11 (fixed short-throw) lenses

Already own this item and want to sell it?

Click here to sell your item

Sanyo PLC-WTC500AL 5,000 Lumens 5K WUXGA LCD Large Venue Projector NO LENS w/ Remote Specs

Display System
Three 0.95" TFT Active Matrix P-Si LCD panels
Native Resolution
WXGA 1280 x 800 pixels (Total of 3,072,000 pixels)
Aspect Ratio
16
Brightness
5,000 ANSI Lumens
Contrast Ratio
3,000
Uniformity
90% corner-to-center illumination
Lens Shift Range
Vertical (U/D) 10
Digital Keystone Correction
Vertical
Diagonal Image Size Range
30 to 300 inches
Compatible Lenses
Optional bayonet mount system (Supports LNS-S11 standard zoom, LNS-W11, LNS-W10, LNS-T10, and LNS-T11)
Lamp Configuration
Dual-lamp safety switching infrastructure
Lamp Type
330W NSHA light source
Maintenance Filter
Automated Maintenance Filter (AMF) featuring a 10-filter scroll cartridge
Audible Fan Noise
31 dB in Eco mode
Video Inputs
1x HDMI Standard
1x 5-BNC input (RGB / Component)
1x D-Sub 15-pin (VGA/SVGA input)
1x S-Video input
1x Composite Video (RCA) [1]
Control & Networking
1x LAN (RJ-45), 1x Serial RS-232 (DB-9pin), and 1x USB Type-B port
Onboard Audio
Dual 3W + 3W built-in stereo speakers
HDTV Signals Supported
480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
Computer Resolutions Compatibility
UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA, and Mac

Key Features

  • 5,000 ANSI Lumens Brightness delivers powerful illumination for large venues with WXGA 1280 x 800 native resolution and 3000:1 contrast ratio
  • Dual 330W Lamp System with automatic lamp selection ensures uninterrupted presentations with 2500-hour lamp life (standard) and 3000-hour (Eco mode)
  • Motorized Lens Shift offers vertical (+50% to 0%) and horizontal (±15%) adjustment range for flexible installation without projector relocation
  • Automatic Filter Replacement System monitors and replaces filter automatically when clogging is detected for reduced maintenance
  • Comprehensive Connectivity includes DVI-D, HDMI, 5BNC, VGA, component, S-Video, composite, RS-232, USB, and RJ-45 Ethernet for networked control
  • No Lens Included offered without lens; compatible with optional LNS-W10 (short zoom), LNS-T11 (long zoom), and LNS-W11 (fixed short-throw) lenses
