Theatrixx Technologies

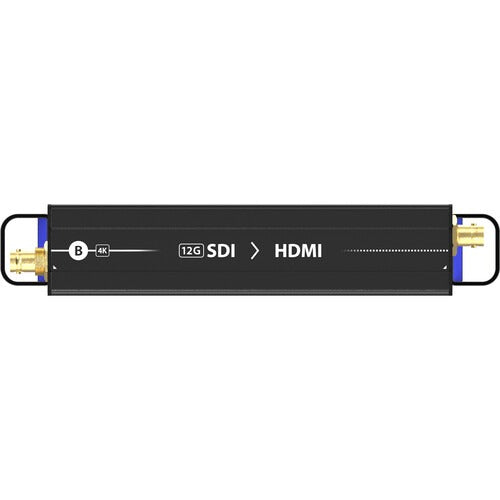

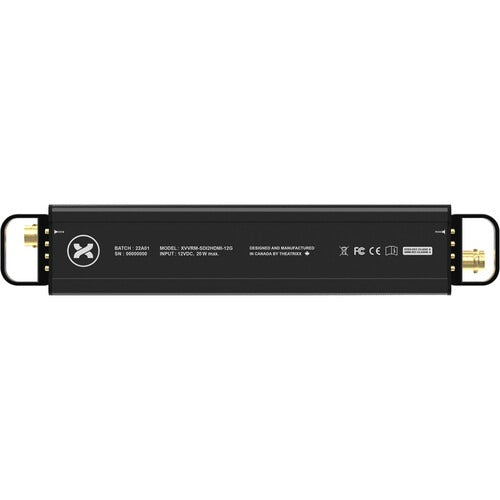

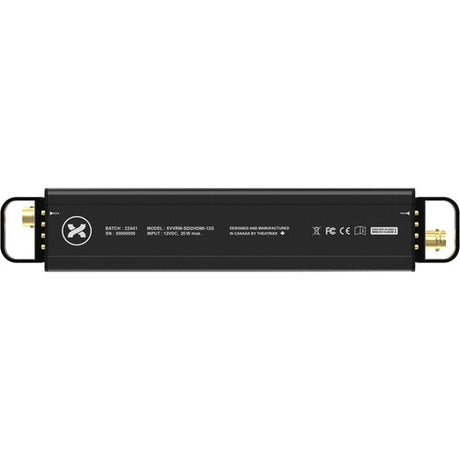

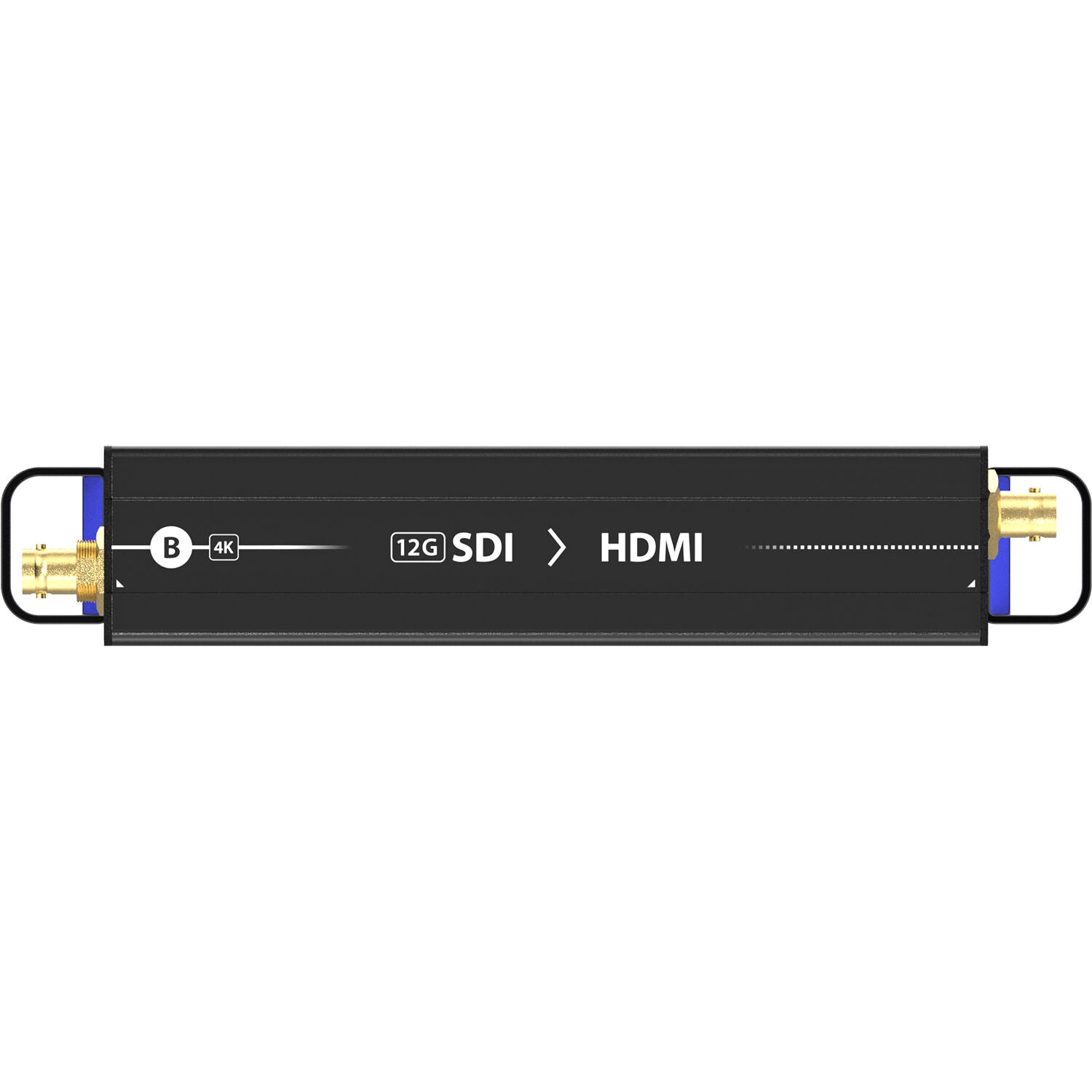

Theatrixx Technologies 12G-SDI to HDMI Reversible Module

$450.00 - $910.00

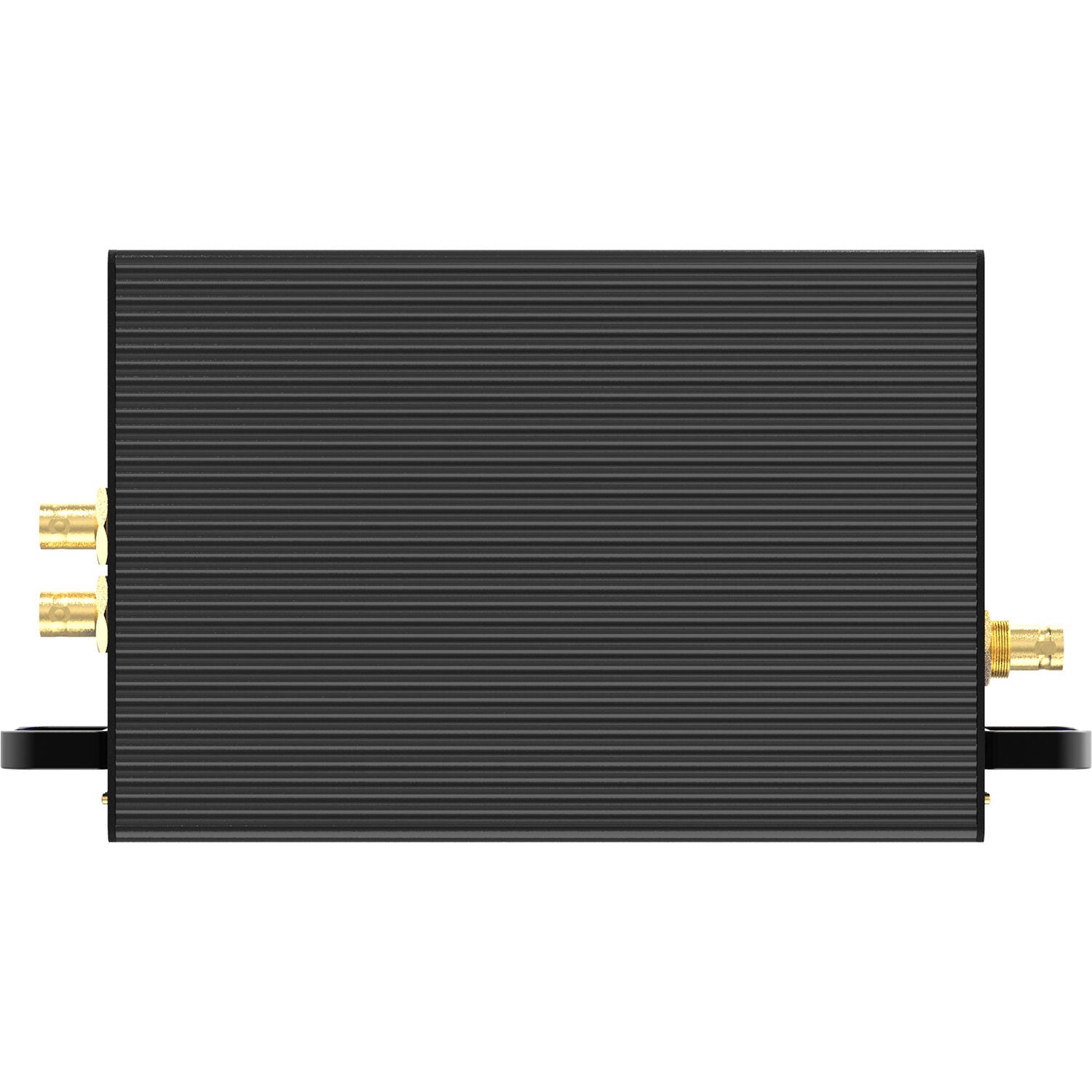

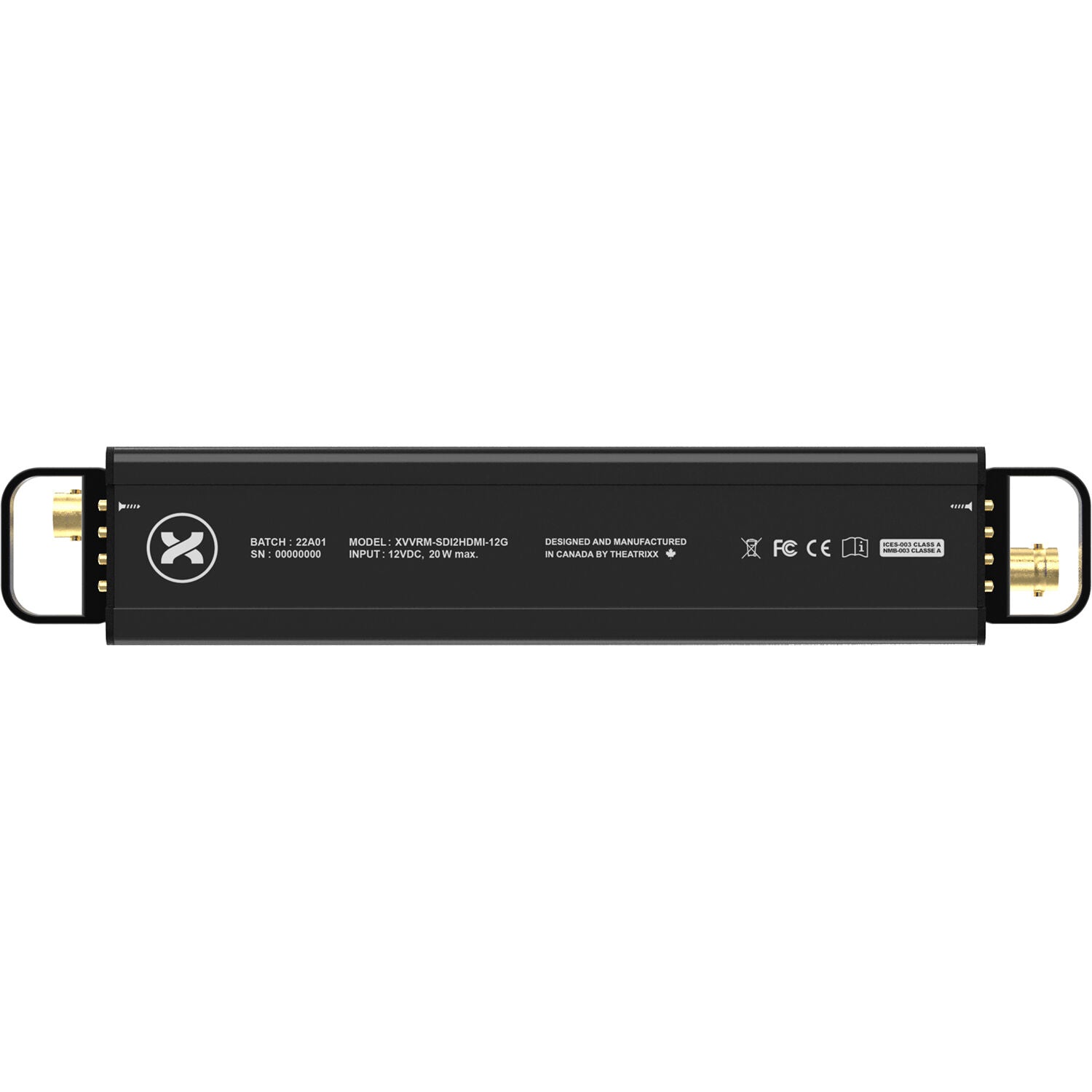

The Theatrixx XVVRM-SDI2HDMI-12G module can be inserted in the XVVRF8 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

View Product Features
  • High-Resolution Support: Handles up to 12G-SDI, supporting resolutions like 4K UHD (3840x2160p60) and DCI 4K (4096x2160p60).
  • Reversible Design: Fits into Theatrixx's reversible frame system (like the XVVRF8), allowing input/output placement at the front or back.
  • Durability: Enclosed, tour-ready, rugged design protects against static, dust, and wear, with magnetic stacking for stability.
  • Plug-and-Play: Simple operation with no dipswitches or menus, just plug it in.
  • Locking HDMI: Secures the HDMI cable to prevent accidental disconnections.

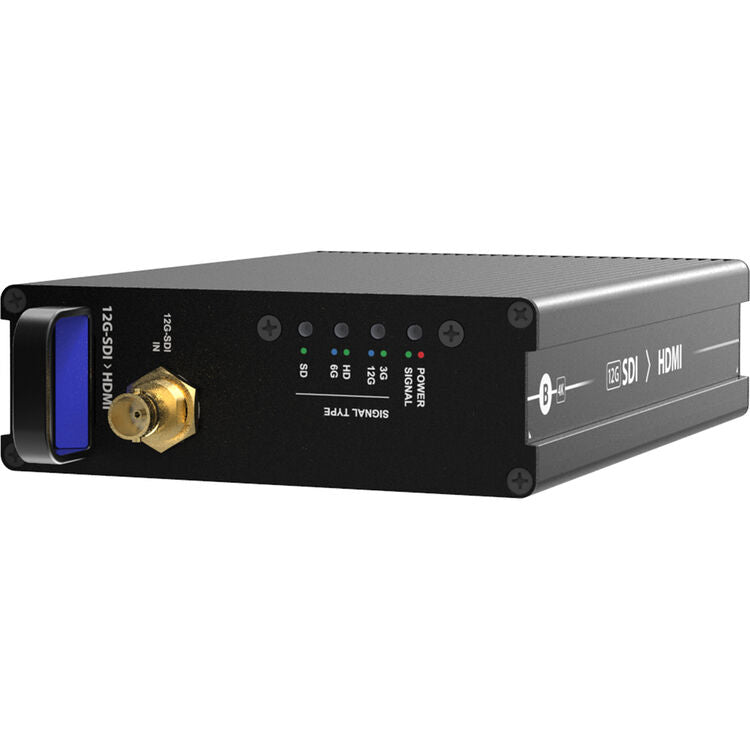

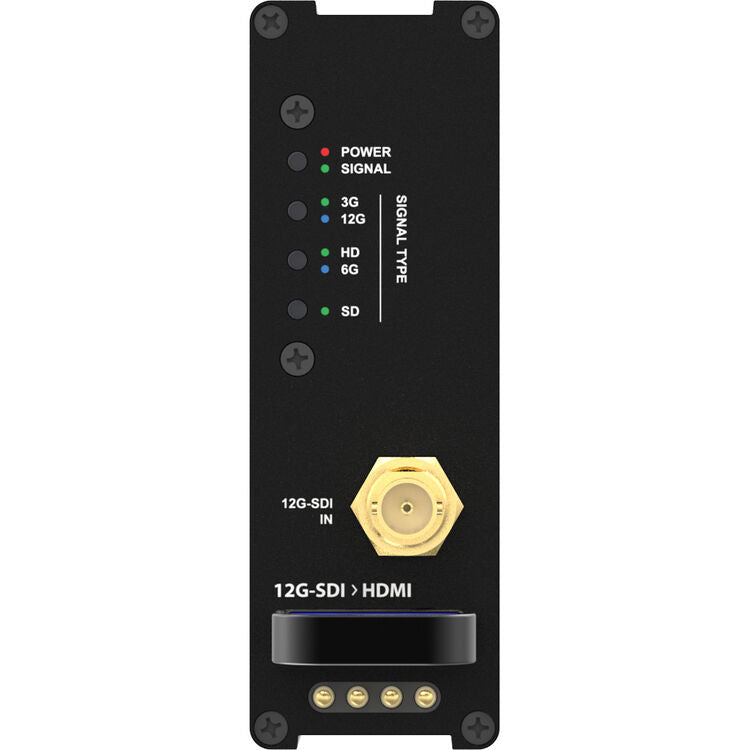

  • Status LEDs: Clear indicators for quick troubleshooting.
  • Reclocked SDI Loop-Through: Provides a clean, amplified SDI output.
  • Wide Format Compatibility: Auto-detects and supports various SDI standards (12G, 6G, 3G, HD, SD) and video samplings (4:2:2, 4:4:4).
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    Theatrixx-XVVRM-SDI2HDMI

    Theatrixx Technologies 12G-SDI to HDMI Reversible Module

    $450.00
    View Product
  • New

    Theatrixx-XVVRM-SDI2HDMI-12G

    Theatrixx XVVRM-SDI2HDMI-12G Reversible Rack Module - 12G-SDI to HDMI for XVVRF8 Frame

    $910.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the Theatrixx Technologies 12G-SDI to HDMI Reversible Module

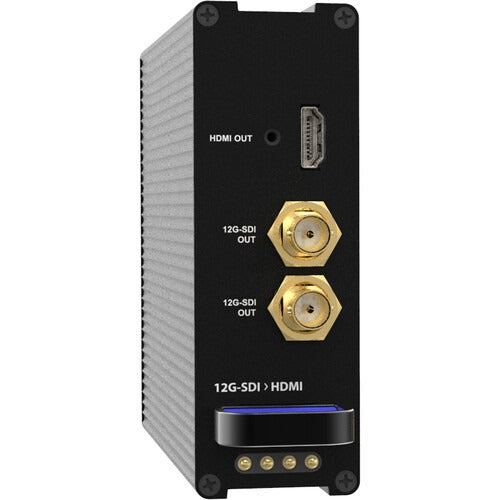

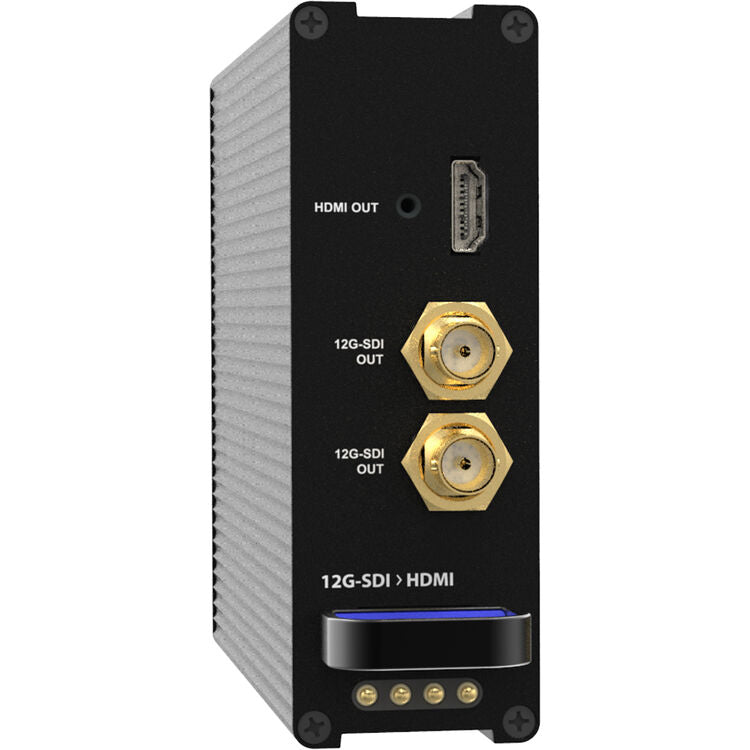

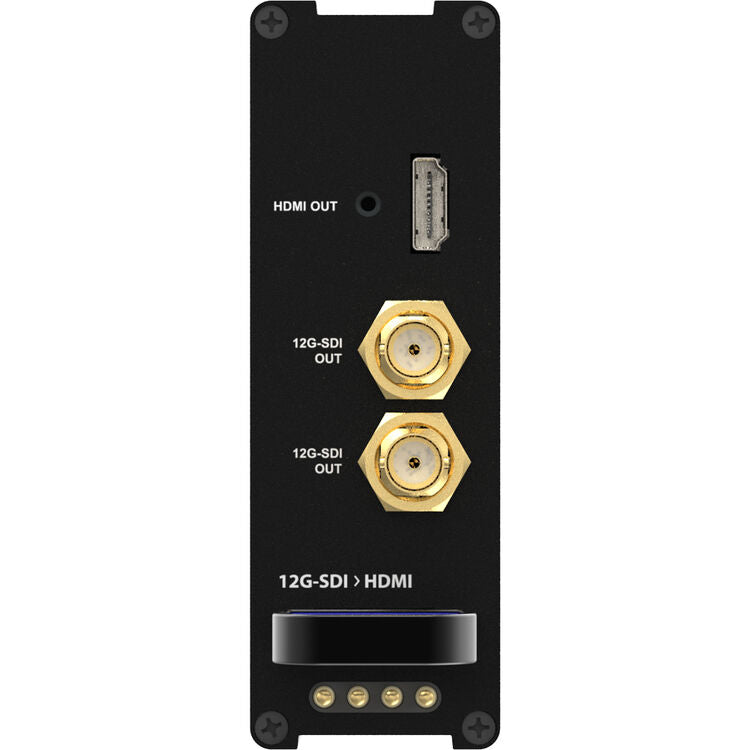

This 12G-SDI to HDMI Reversible Module from Theatrixx Technologies is designed for mounting into the XVVRF8 8-Bay Reversible Frame in either direction, adding an HDMI 2.0 output, as well as single BNC input port and two BNC output ports supporting 12G-, 6G-, 3G-, HD-, and SD-SDI signals. Capable of handling resolutions up to DCI 4K60, the unit supports 4:2:2 and 4:4:4 video sampling and YUV and RGB color spaces. Having no exposed PCBs, the device is inherently protected against static, shock, and dust.

Key Features

  • High-Resolution Support: Handles up to 12G-SDI, supporting resolutions like 4K UHD (3840x2160p60) and DCI 4K (4096x2160p60).
  • Reversible Design: Fits into Theatrixx's reversible frame system (like the XVVRF8), allowing input/output placement at the front or back.
  • Durability: Enclosed, tour-ready, rugged design protects against static, dust, and wear, with magnetic stacking for stability.
  • Plug-and-Play: Simple operation with no dipswitches or menus, just plug it in.
  • Locking HDMI: Secures the HDMI cable to prevent accidental disconnections.
  • Status LEDs: Clear indicators for quick troubleshooting.
  • Reclocked SDI Loop-Through: Provides a clean, amplified SDI output.
  • Wide Format Compatibility: Auto-detects and supports various SDI standards (12G, 6G, 3G, HD, SD) and video samplings (4:2:2, 4:4:4).

Theatrixx Technologies 12G-SDI to HDMI Reversible Module Specs

Connections
Video Input
1x 3G/HD/SD SDI BNC
Video Output
1x HDMI 1.2 type A with locking system 2x 3G/HD/SD SDI BNC
Supported Signals
3G Format Support
1080p50, 1080p59.94, 1080p60
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Sample rate of 48 kHz and 24 bit.
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects incoming signal format.
SMPTE Standards
425 M Level A & B, 424 M Level A, 292 M, 259 M
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
32° to 104°F (0° to 40°C)
Power Requirements
Power Supply
Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption
20W
Voltage Range
12VDC

Key Features

  • High-Resolution Support: Handles up to 12G-SDI, supporting resolutions like 4K UHD (3840x2160p60) and DCI 4K (4096x2160p60).
  • Reversible Design: Fits into Theatrixx's reversible frame system (like the XVVRF8), allowing input/output placement at the front or back.
  • Durability: Enclosed, tour-ready, rugged design protects against static, dust, and wear, with magnetic stacking for stability.
  • Plug-and-Play: Simple operation with no dipswitches or menus, just plug it in.
  • Locking HDMI: Secures the HDMI cable to prevent accidental disconnections.
  • Status LEDs: Clear indicators for quick troubleshooting.
  • Reclocked SDI Loop-Through: Provides a clean, amplified SDI output.
  • Wide Format Compatibility: Auto-detects and supports various SDI standards (12G, 6G, 3G, HD, SD) and video samplings (4:2:2, 4:4:4).
