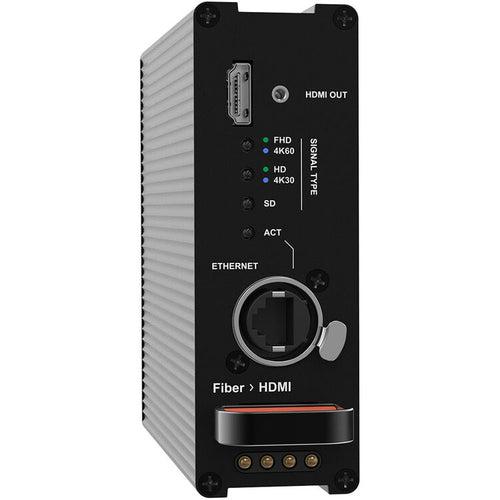

The Theatrixx Technologies Fiber SDVoE to HDMI 2.0 + 1 Gb/s Ethernet Reversible Module (Single-Mode, OpticalCON Dual) is a professional SDVoE (Software-Defined Video-over-Ethernet) receiver module engineered exclusively for the Theatrixx XVVRF8 8-Bay Reversible Rackmount Frame. This module accepts a 10 Gbps single-mode optical fiber input via a rugged Neutrik OpticalCON DUO connector and decodes the SDVoE stream to a locking HDMI 2.0 Type A output, delivering pristine 4K video at 60 frames per second. Single-mode fiber operation enables significantly longer transmission distances compared to multimode fiber, making this module ideal for large-scale broadcast facilities, stadium installations, campus-wide 4K video distribution, and live event venues requiring reliable signal transport over distances measured in kilometers.

The integrated Semtech BlueRiver NT1000 chipset delivers zero-frame latency of less than 0.1 milliseconds with visually lossless performance, supporting all HDMI 2.0 formats including 4K60 with 8‑bit 4:4:4 chroma subsampling, 4K60 with 10‑bit 4:2:2, and High Dynamic Range (HDR10 and Dolby Vision). Embedded audio passthrough supports up to eight channels at 24‑bit, 192 kHz resolution. An auxiliary 1 Gbps Ethernet port on Neutrik EtherCON provides network pass-through, enabling integrated control and data connectivity alongside video transmission.

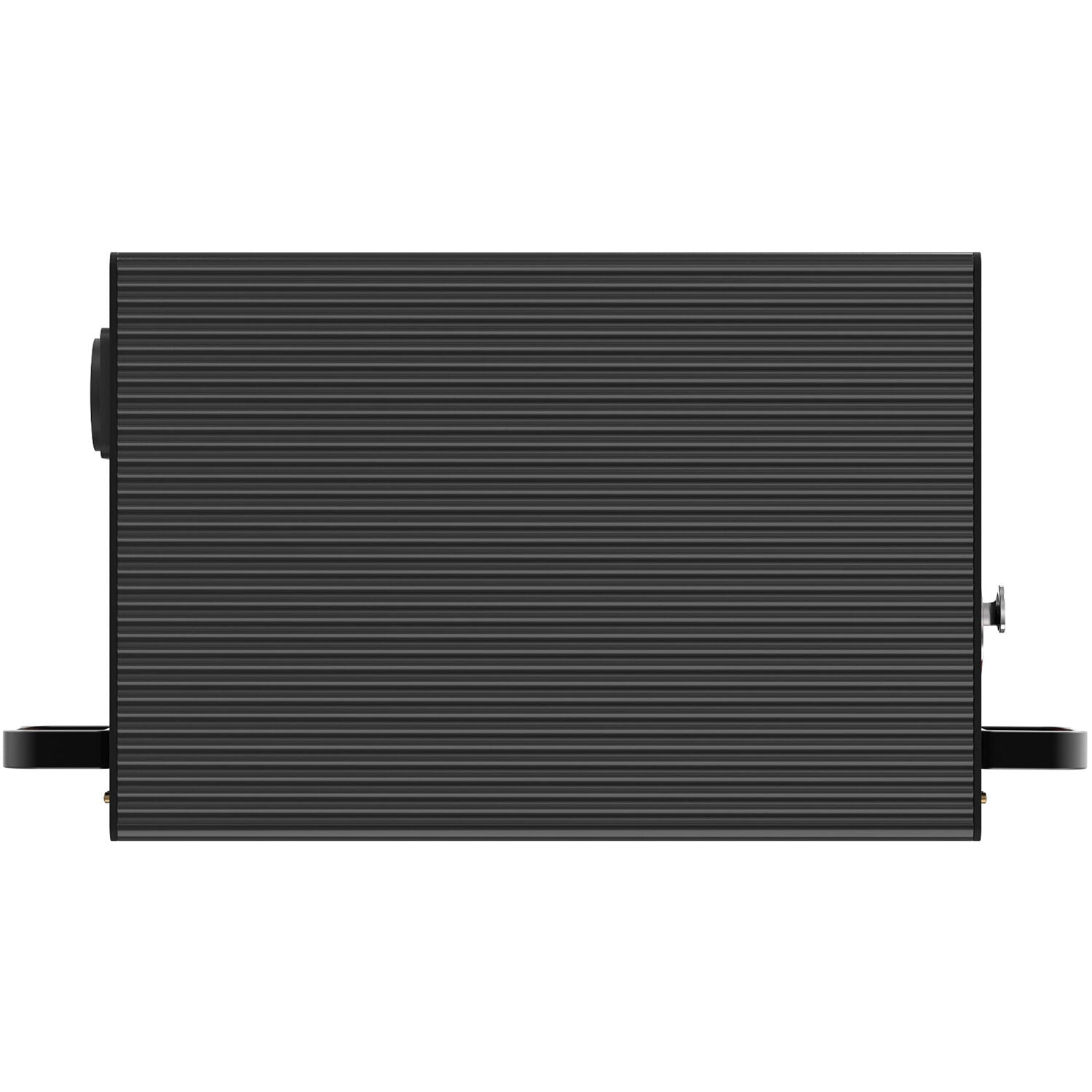

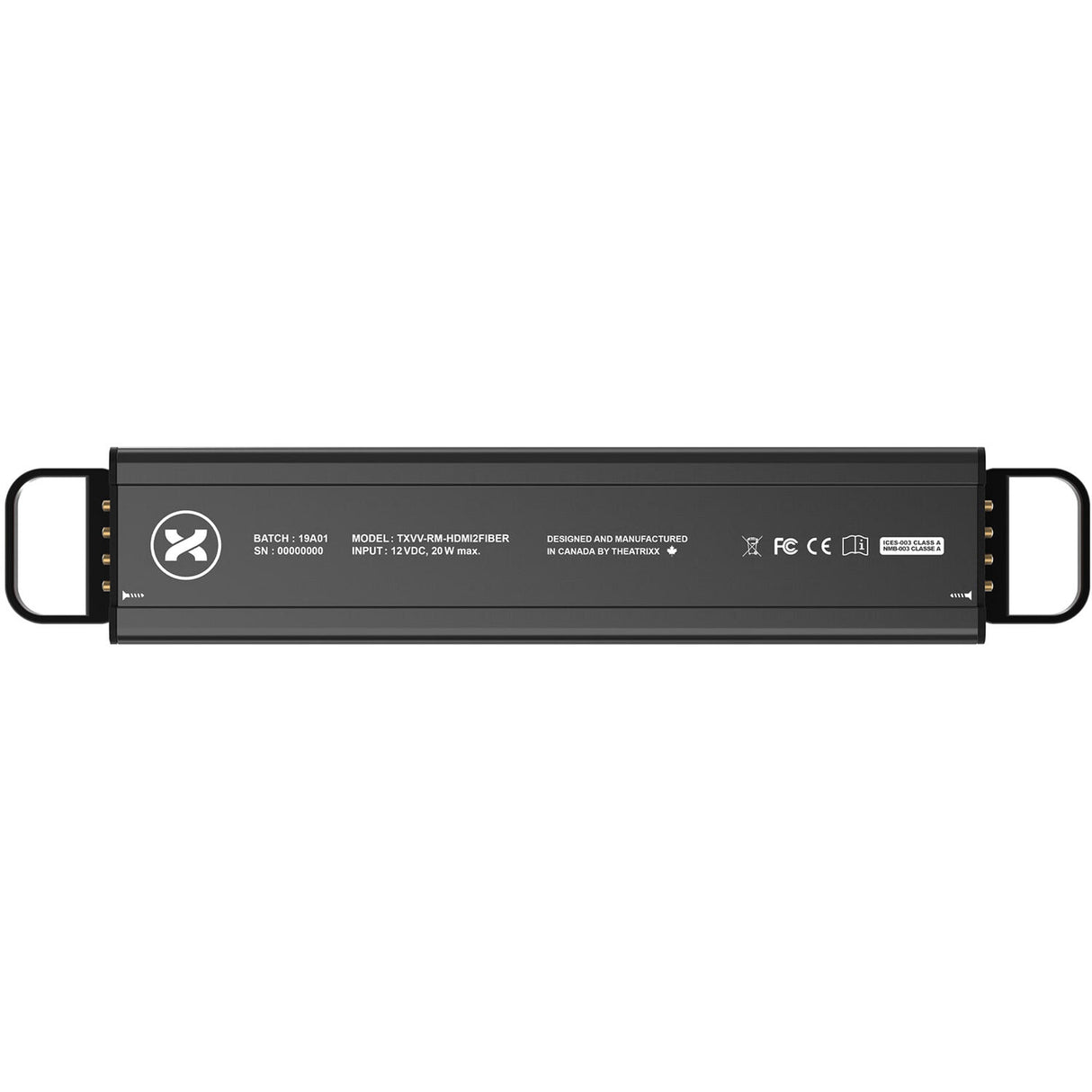

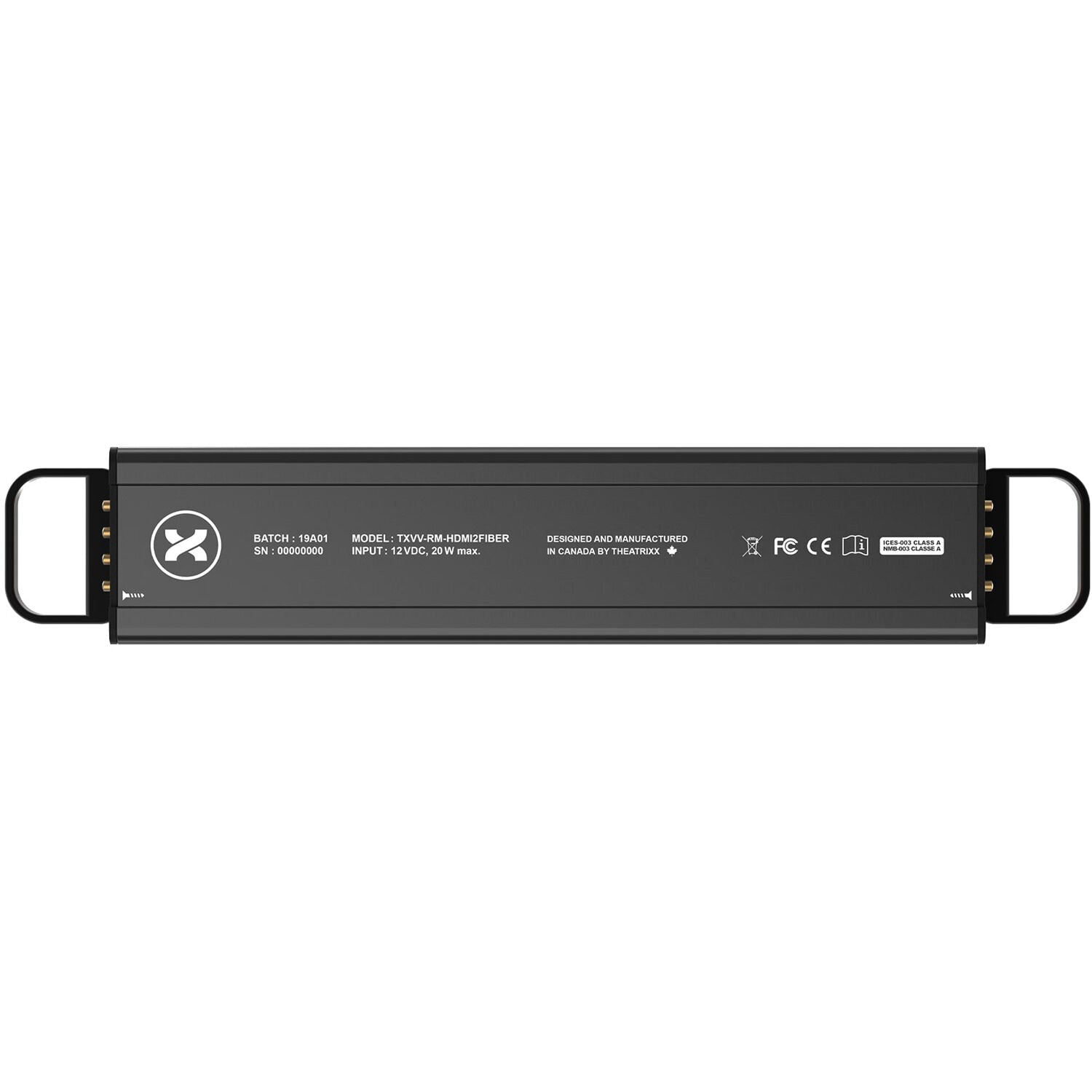

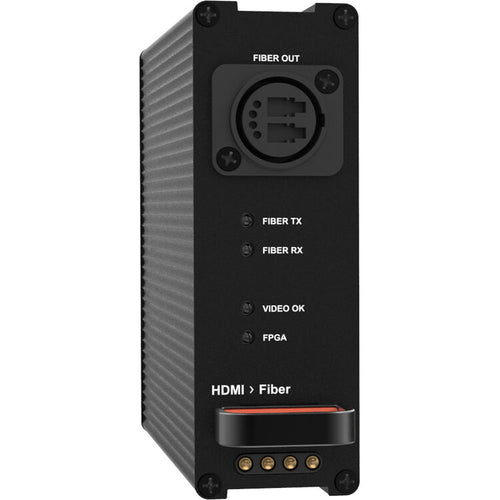

Designed for demanding touring and mission-critical environments, the module features a fully enclosed, self-contained chassis with no exposed PCBs, protecting sensitive electronics against electrostatic discharge, dust ingress, physical impact, and general wear. The reversible architecture allows technicians to insert the module in either direction within the 3RU XVVRF8 frame, positioning the OpticalCON DUO fiber input, EtherCON port, and locking HDMI output at the front or rear of the rack to accommodate facility cabling layouts without requiring custom cables. All power is delivered via gold-plated redundant spring pins with magnetic retention, eliminating messy internal power cabling and external power bricks while ensuring the module remains securely powered and seated even during transportation or vibration-heavy operation. The module draws 20W of 12 V DC power directly from the XVVRF8 frame's dual redundant power supplies, with hot-swappable backup ensuring uninterrupted operation during power supply failure. Theatrixx Technologies designs and assembles these modules in Canada, prioritizing rugged construction, signal integrity, and professional-grade AV over IP conversion for 4K UHD applications.
