Theatrixx Technologies

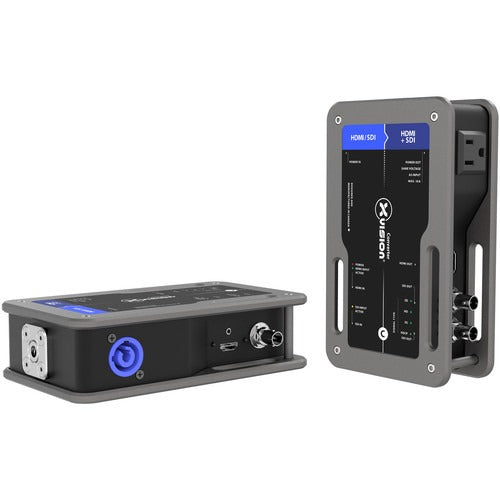

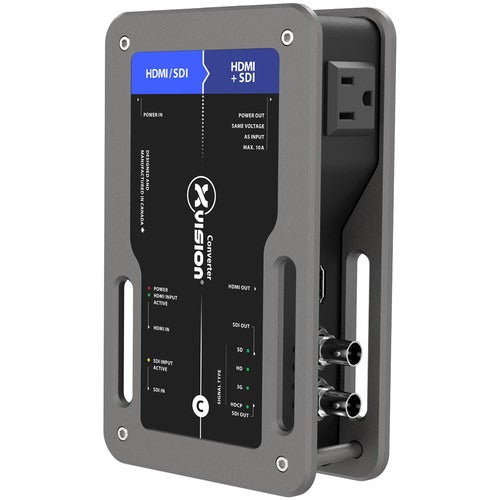

Theatrixx Technologies SDI/HDMI Bidirectional Video Converter

$775.00

The SDI/HDMI Bidirectional Video Converter from Theatrixx Technologies is designed to be used while on the road. It features an integrated power supply with a locking powerCON connector and a built-in 120V outlet to power a nearby projector, TV, or laptop. There is an SDI input, two SDI outputs, a locking HDMI input, and a locking HDMI output. This converter has an SDI input priority.

View Product Features

  • Magnetic stacking system and non-skid rubber pad
  • Rugged, tour-ready, and aesthetic enclosure
  • Plug-and-play operation
  • Clear and ample status LED indicators for quick troubleshooting
  • Easy on-the-field identification with unique color and alphabetic coding system
  • Locking HDMI ports prevent accidental disconnection
  • Reclocked and amplified SDI outputs
  • Automatic incoming signal type detection
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies SDI/HDMI Bidirectional Video Converter

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Key Features

  • Magnetic stacking system and non-skid rubber pad
  • Rugged, tour-ready, and aesthetic enclosure
  • Plug-and-play operation
  • Clear and ample status LED indicators for quick troubleshooting
  • Easy on-the-field identification with unique color and alphabetic coding system
  • Locking HDMI ports prevent accidental disconnection
  • Reclocked and amplified SDI outputs
  • Automatic incoming signal type detection

Theatrixx Technologies SDI/HDMI Bidirectional Video Converter Specs

Connections
Video Input
Auto switching between 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.2 type A with locking system
Video Output
1 x HDMI 1.2 type A with locking system 2 x 3G/HD/SD SDI BNC
Input Priority
SDI input
Supported Signals
3G Format Support
1080p50, 1080p59.94, 1080p60.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Sample rate of 48 kHz and 24 bit
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects incoming signal format
SMPTE Standards
425M Level A & B, 424M Level A, 292M, 259M
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply PowerCON input Edison Nema 5-15 output (loop-thru)
Power Consumption
15W
Voltage Range
100-120V, 50-60Hz (100-240V, 50-60Hz available with PowerCON True1)
Courtesy Outlet
Max 10A, same voltage as input

Key Features

  • Magnetic stacking system and non-skid rubber pad
  • Rugged, tour-ready, and aesthetic enclosure
  • Plug-and-play operation
  • Clear and ample status LED indicators for quick troubleshooting
  • Easy on-the-field identification with unique color and alphabetic coding system
  • Locking HDMI ports prevent accidental disconnection
  • Reclocked and amplified SDI outputs
  • Automatic incoming signal type detection
