Theatrixx Technologies

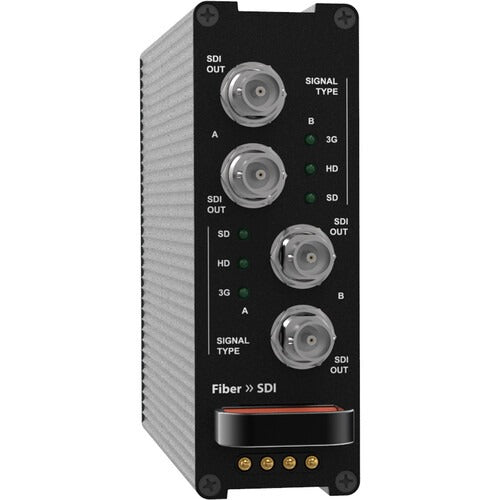

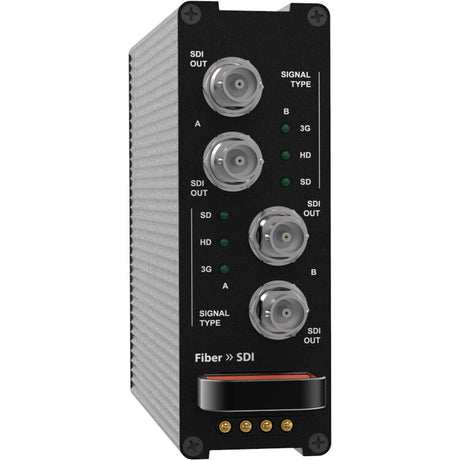

Theatrixx Technologies xVision Reversible Module (Dual Channel Fiber to 3G-SDI, Multimode, OpticalCON Duo)

$1,599.00

The Theatrixx RM-2Fiber2SDI is a high-performance dual fiber to dual SDI converter that provides seamless video signal transmission for professional broadcasting and AV applications. With support for 3G-SDI, HD-SDI, and SD-SDI formats, this device ensures compatibility with a wide range of video equipment. Its compact design and robust build quality make it ideal for both studio and field use, while the choice of multimode or singlemode fiber connections offers flexibility in various setups.

Designed for reliability, the RM-2Fiber2SDI features redundant power supply options and operates within a wide temperature range, making it suitable for demanding environments. The device is also available as a standalone converter, providing additional versatility for users who require a dedicated solution.

View Product Features

  • Video Input: Choice of Multimode or Singlemode fiber with Optical SDI on ST, OpticalCON DUO, or OpticalCON QUAD connectors.
  • Video Output: 4 x 3G/HD/SD SDI BNC outputs for versatile connectivity.
  • Supported Signals: 3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio.
  • SMPTE Standards: Complies with 425 M Level A & B, 424 M, 292 M, and 259 M standards.
  • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame).
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies xVision Reversible Module (Dual Channel Fiber to 3G-SDI, Multimode, OpticalCON Duo)

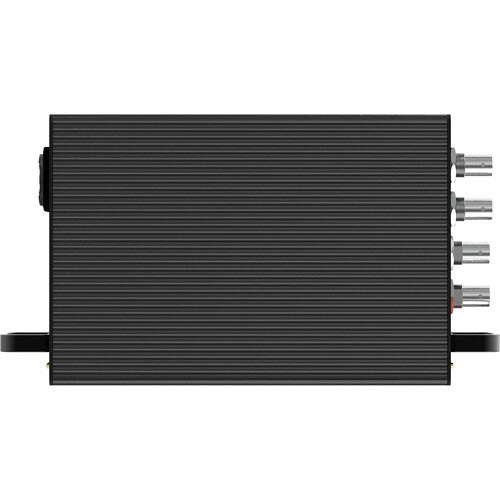

The Theatrixx Technologies xVision Reversible Module is a professional dual-channel fiber to 3G-SDI converter designed for the demanding environments of live events, broadcast, and touring production. As part of the xVision Reversible Rackmount system, this module fits into an 8-bay 3RU frame, consolidating multiple converters into a single, organized chassis and eliminating the mess of individual power supplies and loose cabling.

The defining feature of this system is its true reversible design. The module can be inserted into the rack frame in either direction, allowing the fiber input and SDI output connections to be positioned on either the front or rear panel based on the specific wiring needs of the application. This provides unparalleled flexibility for system integrators working in tight or unconventional spaces.

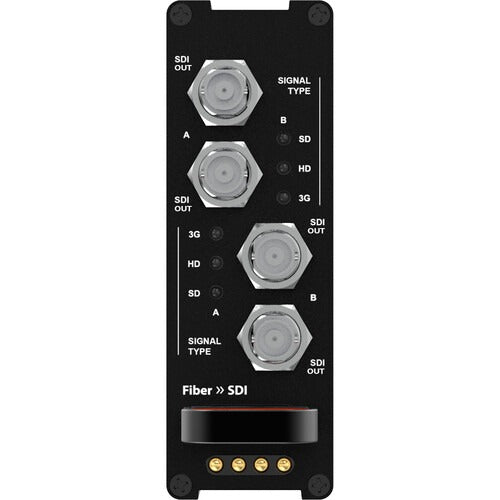

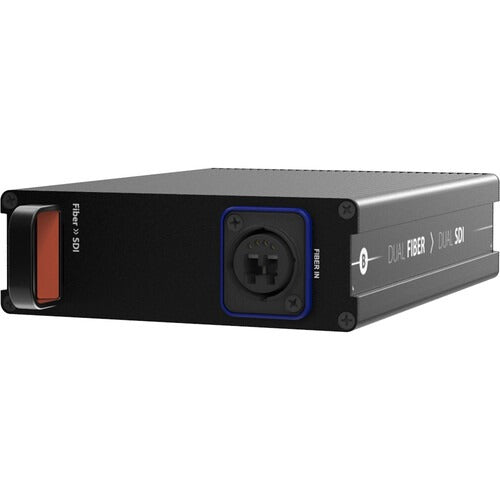

The module converts an incoming dual-channel multimode OpticalCON Duo fiber signal into four 3G-SDI outputs (two per fiber channel). These reclocked and amplified outputs ensure a clean, robust signal suitable for long cable runs. Power is delivered to the module via gold-plated, redundant spring pins with magnetic retention, eliminating internal cabling and ensuring a secure, maintenance-free connection. The fully enclosed aluminum housing protects sensitive electronics from static shock, dust, and the general wear and tear of touring.

Key Features

  • Video Input: Choice of Multimode or Singlemode fiber with Optical SDI on ST, OpticalCON DUO, or OpticalCON QUAD connectors.
  • Video Output: 4 x 3G/HD/SD SDI BNC outputs for versatile connectivity.
  • Supported Signals: 3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio.
  • SMPTE Standards: Complies with 425 M Level A & B, 424 M, 292 M, and 259 M standards.
  • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame).

Theatrixx Technologies xVision Reversible Module (Dual Channel Fiber to 3G-SDI, Multimode, OpticalCON Duo) Specs

Module Identification
Compatible Frame
Theatrixx XVVRF8 8-Bay Reversible Rackmount Frame (3RU)
Module Function
Dual-channel multimode fiber to 3G-SDI converter
Optical Inputs
Input Connector Type
Neutrik OpticalCON DUO (duplex)
Number of Optical Inputs
2 independent channels
Fiber Type Supported
Multimode (MM)
Optical Standard
3G/HD/SD-SDI over fiber
SDI Outputs
Output Connector Type
BNC (professional 75Ω)
Number of SDI Outputs
2 independent outputs (one per fiber channel)
Output Signal Type
Reclocked, amplified 3G-SDI
Output Impedance
75Ω
Video Format Support
3G-SDI Formats
SMPTE 424M (Level A and B) at 2.97 Gb/s
HD-SDI Formats
SMPTE 292M (1.485 Gb/s)
SD-SDI Formats
SMPTE 259M (270 Mb/s)
Embedded Audio
Full passthrough support
Power Specifications
Power Source
XVVRF8 frame backplane via spring pins
Voltage
12 V DC
Power Consumption
20 W maximum
Power Connection
Gold-plated redundant spring pins
Power Reliability
Magnetic retention with spring pin redundancy
External Power Cabling
None (power via frame backplane)

Key Features

  • Video Input: Choice of Multimode or Singlemode fiber with Optical SDI on ST, OpticalCON DUO, or OpticalCON QUAD connectors.
  • Video Output: 4 x 3G/HD/SD SDI BNC outputs for versatile connectivity.
  • Supported Signals: 3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio.
  • SMPTE Standards: Complies with 425 M Level A & B, 424 M, 292 M, and 259 M standards.
  • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame).
