Theatrixx Technologies

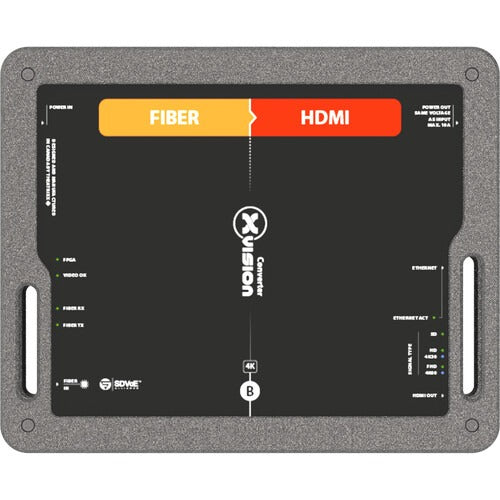

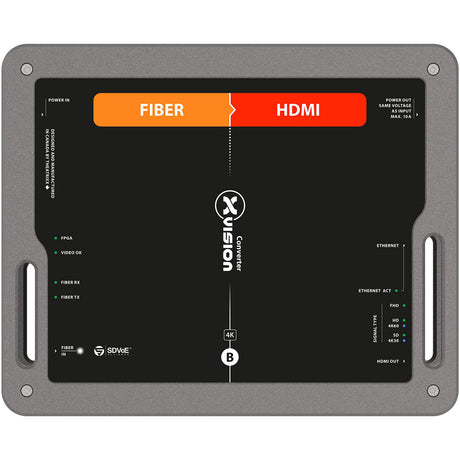

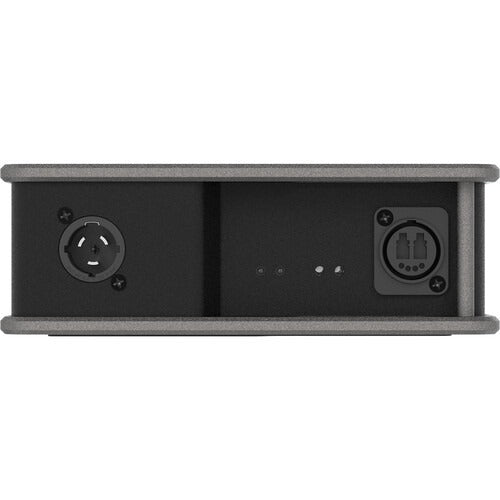

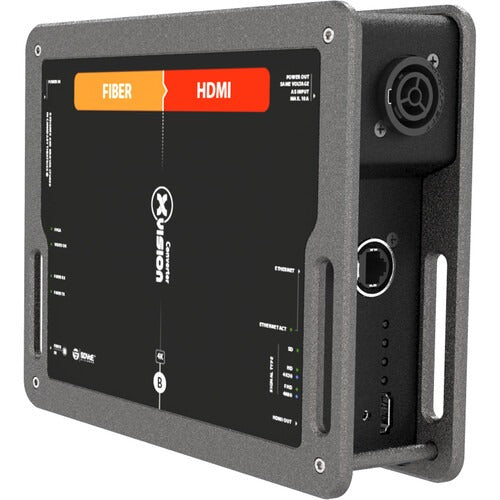

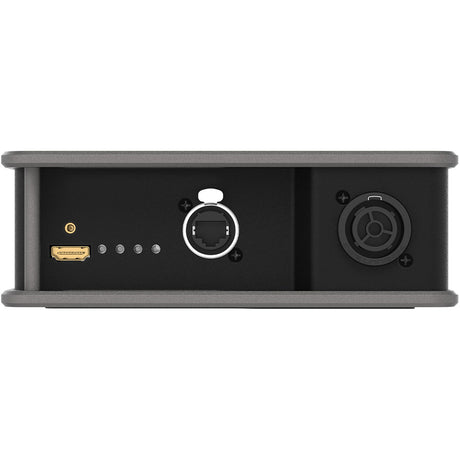

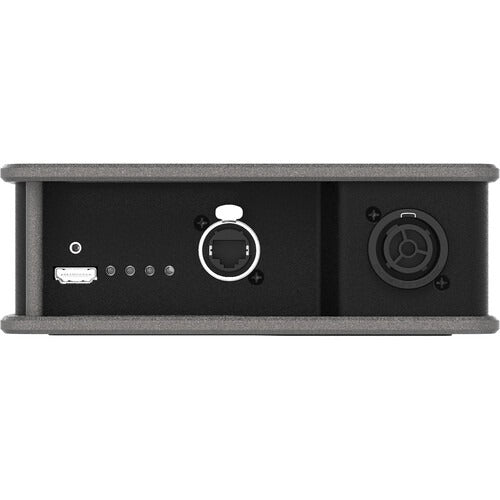

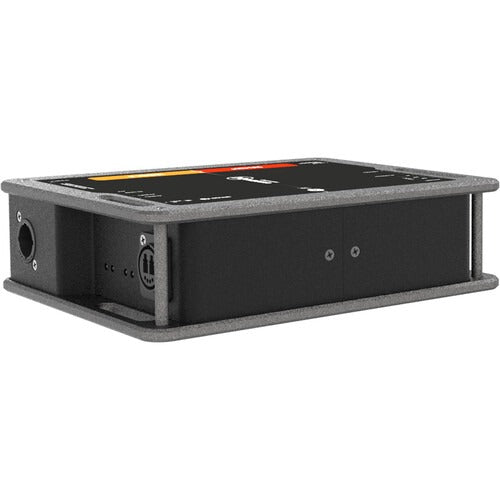

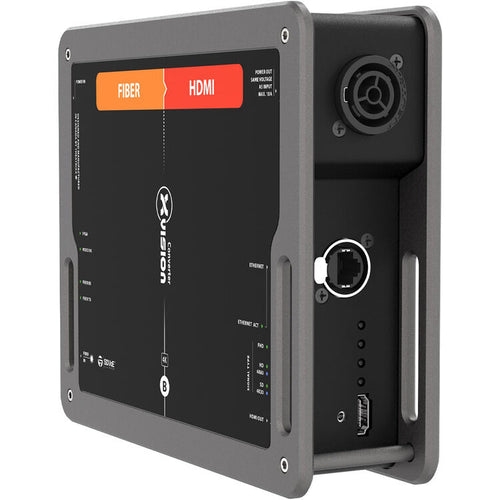

Theatrixx Technologies XVVFIBER2HDMI xVision Fiber to HDMI + Ethernet Converter and powerCON True1 In/Out

$2,230.00

Use the xVision Fiber to HDMI True1 Converter from Theatrixx Technologies for reliable, in-the-field fiber to HDMI video signal conversions. This durable, made-in-Canada device features a 10 Gb/s optical fiber input, a locking HDMI output port, a built-in power supply with locking powerCON True1 input and output connectors, and a stackable, magnetic housing with LED indicators.

View Product Features

  • 10 Gb/s Optical Fiber SFP-Based Input
  • HDMI Output
  • Rugged Housing for Portable Use
  • Requires Separate Fiber Option
  • Built-In Power Supply, Locking Connector
  • powerCON True1 Input & Output
  • SDVoE (NT1000-Based) Encoding
  • HDR10 & Dolby Vision High Dynamic Range
  • 8-Channel, 24-Bit Embedded Audio
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies XVVFIBER2HDMI xVision Fiber to HDMI + Ethernet Converter and powerCON True1 In/Out

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what may soon become your most trustworthy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • 10 Gb/s Optical Fiber SFP-Based Input
  • HDMI Output
  • Rugged Housing for Portable Use
  • Requires Separate Fiber Option
  • Built-In Power Supply, Locking Connector
  • powerCON True1 Input & Output
  • SDVoE (NT1000-Based) Encoding
  • HDR10 & Dolby Vision High Dynamic Range
  • 8-Channel, 24-Bit Embedded Audio

Theatrixx Technologies XVVFIBER2HDMI xVision Fiber to HDMI + Ethernet Converter and powerCON True1 In/Out Specs

Connections
Fiber Input
10 Gbps Optical Ethernet, SFP-based, Choice of Singlemode or Multimode, Choice of Neutrik OpticalCON DUO or QUAD, or FiberFOX EBC connectors
Ethernet Port
1 Gbps Ethernet on Neutrik EtherCON
Video Output
HDMI 2.0 type A
Supported Signals
HDMI 2.0 output
All HDMI 2.0 formats including: 4K/60 8-bit 4:4:4, 4K/60 10-bit 4:2:2, High dynamic range (HDR10 & Dolby Vision)
Embedded audio
Up to 8 channels, 24 bit, 192 kHz
Encoding Technology
SDVoE (NT1000-based)
Typical Latency
< 0.1 ms
Auxiliary Signals
1 Gbps Ethernet pass-thru
Physical
Height
62 mm (2.44 in)
Depth
180 mm (7.08 in)
Width
221 mm (8.7 in)
Weight
2 kg (4.4 lbs)
Alt. form factor
Also available in rackmount module (RM)
Environmental
Operating temp.
0-40° C
Relative Humidity
0 % to 90 % RH non-condensing
Power Requirements
Power Supply
Built-in power supply PowerCON True1 in / loop thru
Power Consumption
45W max.
Operational Voltage Range
100-240 V 50-60 Hz

Key Features

  • 10 Gb/s Optical Fiber SFP-Based Input
  • HDMI Output
  • Rugged Housing for Portable Use
  • Requires Separate Fiber Option
  • Built-In Power Supply, Locking Connector
  • powerCON True1 Input & Output
  • SDVoE (NT1000-Based) Encoding
  • HDR10 & Dolby Vision High Dynamic Range
  • 8-Channel, 24-Bit Embedded Audio
