SKU: VISION 250E & VRI PACK 2

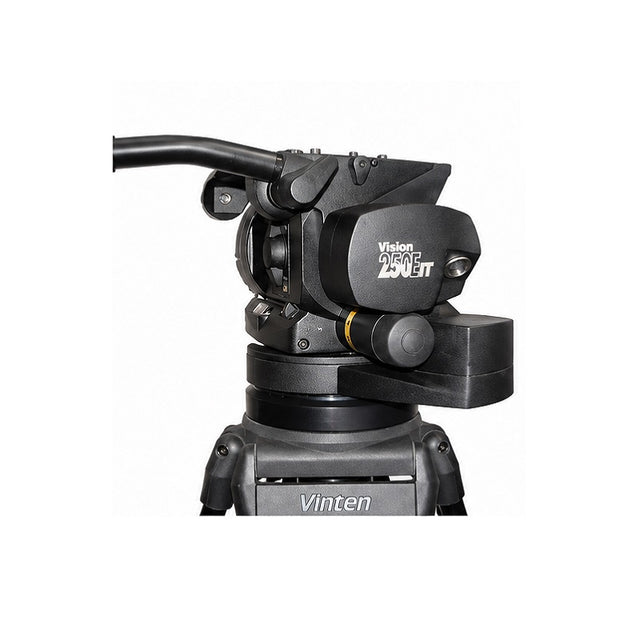

Vinten VISION 250E & VRI PACK 2 Vision 250E and VRI Box Package

$18,640.00

Items Included

  • Vinten VISION 250E & VRI PACK 2 Vision 250E and VRI Box Package

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Title
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The Vision 250E Fluid Head & VRI Box Package 2 from Vinton pairs the 250E pan/tilt head with the Virtual Reality Interface Box for use in VR setups. Use this 250E and VRI combination on a stationary tripod or on a Quattro SE tracking pedestal. A lens interface enables the VRI Box to create a single data stream combining the lens data and the positional data from the head's encoders. This set includes mounting brackets for the VRI Box, a head interface cable, and a second pan bar. Read more

Features

  • Vision 250E Fluid HeadVRI Box V4083-0001 with Lens InterfaceBuilt-In Pan/Tilt Optical EncodersVRI Box Bracket Mount & 2nd Pan Bar

Business Financing Options Avaiable

The Vision 250E Fluid Head & VRI Box Package 2 from Vinton pairs the 250E pan/tilt head with the Virtual Reality Interface Box for use in VR setups. Use this 250E and VRI combination on a stationary tripod or on a Quattro SE tracking pedestal. A lens interface enables the VRI Box to create a single data stream combining the lens data and the positional data from the head's encoders. This set includes mounting brackets for the VRI Box, a head interface cable, and a second pan bar. Read more

Features

  • Vision 250E Fluid HeadVRI Box V4083-0001 with Lens InterfaceBuilt-In Pan/Tilt Optical EncodersVRI Box Bracket Mount & 2nd Pan Bar

About the Vinten VISION 250E & VRI PACK 2 Vision 250E and VRI Box Package

The Vinten VISION 250E & VRI PACK 2 is a comprehensive studio camera support package combining the flagship VISION 250E robotic pan-tilt head with the essential VRI (Vinten Remote Interface) control box. The VISION 250E is a top-tier robotic head engineered for the most demanding studio and outside broadcast applications, offering exceptional precision, smoothness, and payload capacity to handle large broadcast cameras, teleprompters, and heavy lenses.

Its advanced counterbalance and drag systems are fully motorized and programmable, allowing for perfect balance and customizable feel for any payload, which enables operators to execute flawlessly smooth pans, tilts, and complex programmed moves with repeatable accuracy.

The VRI Box serves as the critical communication and power hub for the system. It houses the control electronics, connects to the studio's robotic control network via industry-standard protocols, and provides the primary power and signal interface between the head and the remote control panels or automation software. This package provides a complete, ready-to-integrate solution for building or upgrading a robotic camera system.

It is designed for high-end broadcast facilities, sports production trucks, and live event venues where reliable, operator-free camera movement is essential for creating dynamic visuals and maximizing production efficiency without compromising the rock-solid stability required for live television.

Key Features

  • Vision 250E Fluid HeadVRI Box V4083-0001 with Lens InterfaceBuilt-In Pan/Tilt Optical EncodersVRI Box Bracket Mount & 2nd Pan Bar

Vinten VISION 250E & VRI PACK 2 Vision 250E and VRI Box Package Specs

Robotic Head System Package
Package Name
VISION 250E & VRI PACK 2
Core Components
Vision 250E Robotic Head, VRI Control Box, Cables
Vision 250E Head Specifications
Head Type
Full-Function Robotic Pan-Tilt
Maximum Payload
25 kg (55 lbs)
Pan Range
Continuous 360° unlimited
Tilt Range
+45° to -45°
Maximum Speeds
Pan: 120°/sec, Tilt: 90°/sec
Positional Accuracy
±0.01 degrees
Counterbalance
Automatic, Motorized Adjustment
Drag System
Electronically Adjustable Fluid Drag
Mounting
150mm Wedge Plate with Quick Release
VRI Control Box Specifications
Unit Designation
VRI (Vinten Remote Interface) Box
Primary Function
System Control, Power & Communication Hub
Control Protocols
VDCP, VISCA over RS-422/232, Ethernet (P2P)
Power Output
48V DC to head (via supplied cable)
User Interfaces
D-Sub 15-pin, RJ-45 Ethernet, GPI/O
Preset Memory
256 user-programmable positions
System Performance & Power
System Repeatability
±0.005 degrees
Operating Voltage
100-240V AC, 50/60 Hz (VRI Box Input)
Total System Power Consumption
150W (max, under full load)
Communication Cabling
Single hybrid cable for power/data to head
Physical Specifications
Head Weight (Vision 250E)
15 kg (33 lbs)
VRI Box Dimensions
2U, 19-inch rack mountable
Operating Temperature
0°C to 40°C (32°F to 104°F)
System Noise Level
<30 dBA at 1 meter

Key Features

  • Vision 250E Fluid HeadVRI Box V4083-0001 with Lens InterfaceBuilt-In Pan/Tilt Optical EncodersVRI Box Bracket Mount & 2nd Pan Bar
