SKU: 2105-628

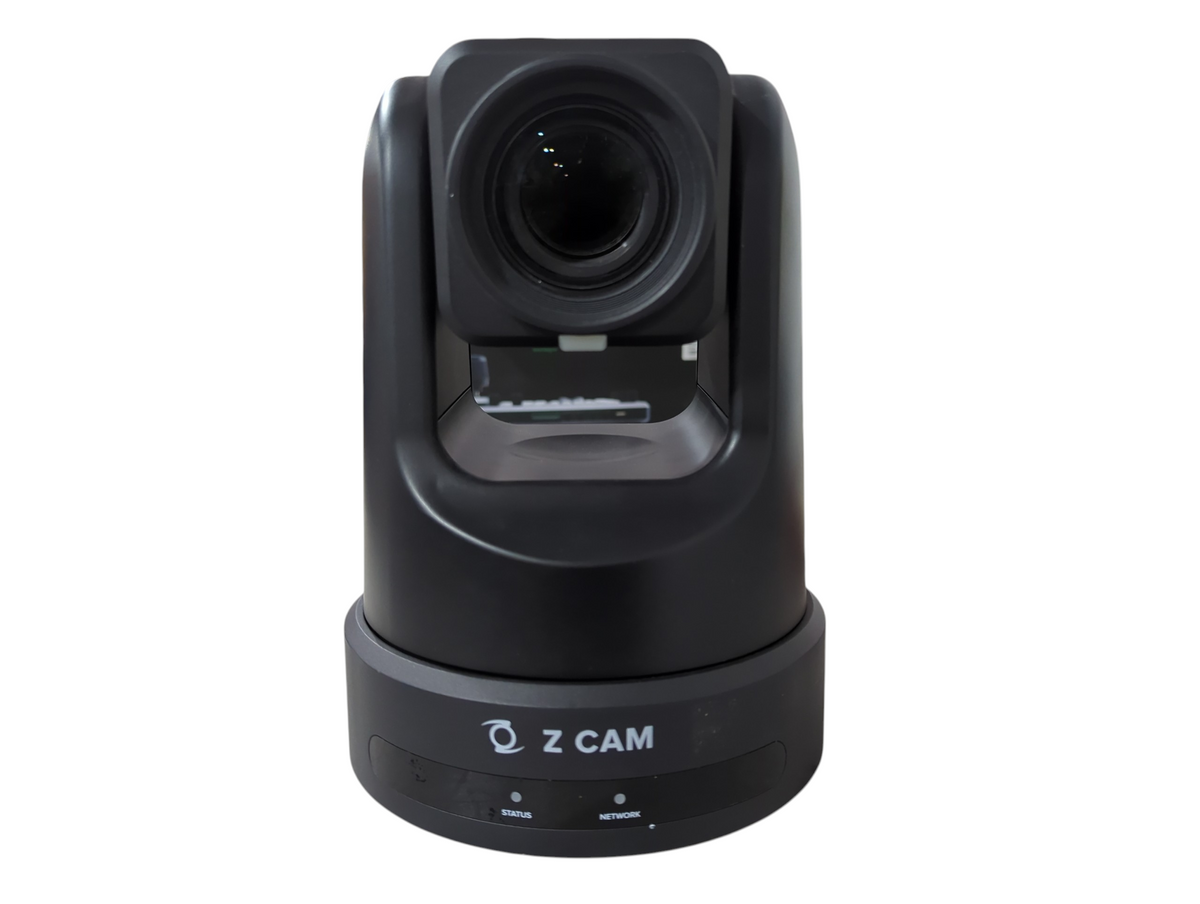

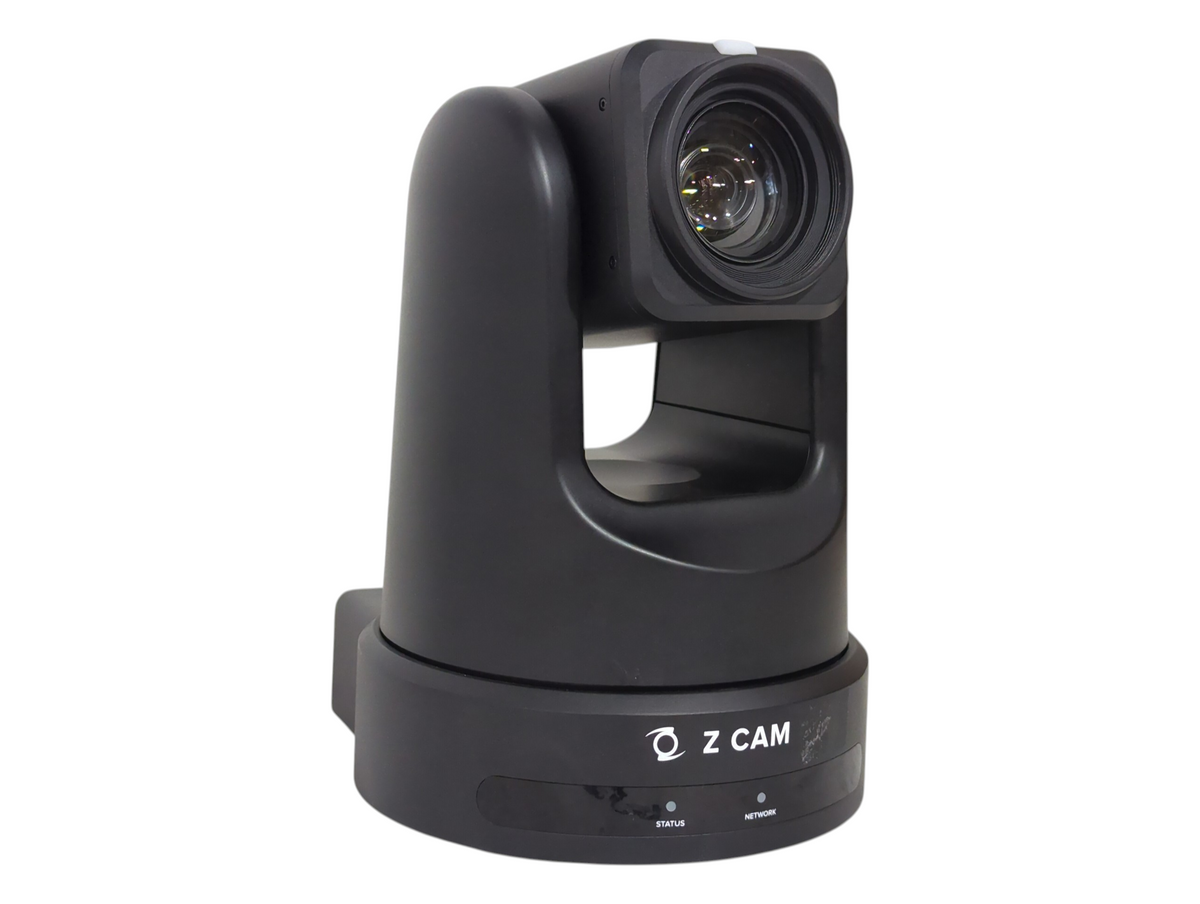

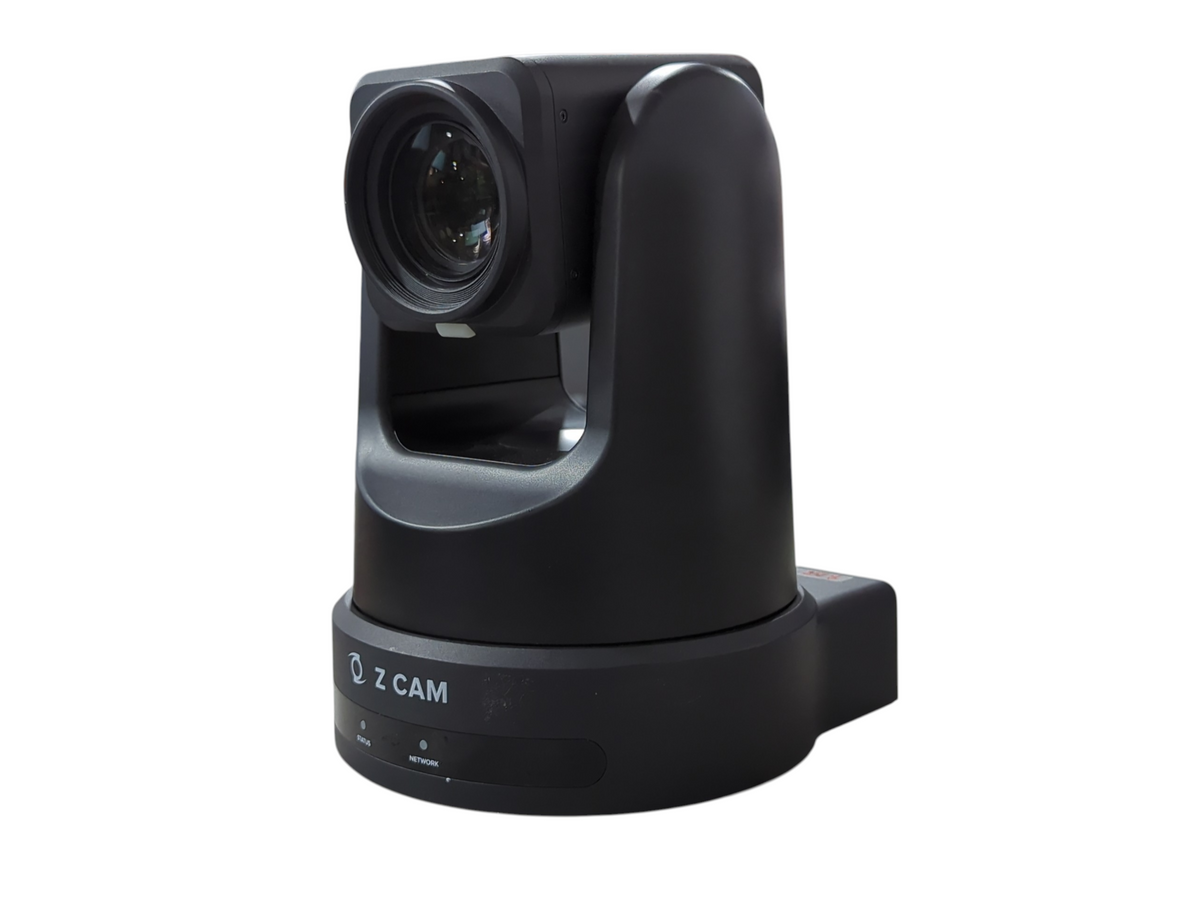

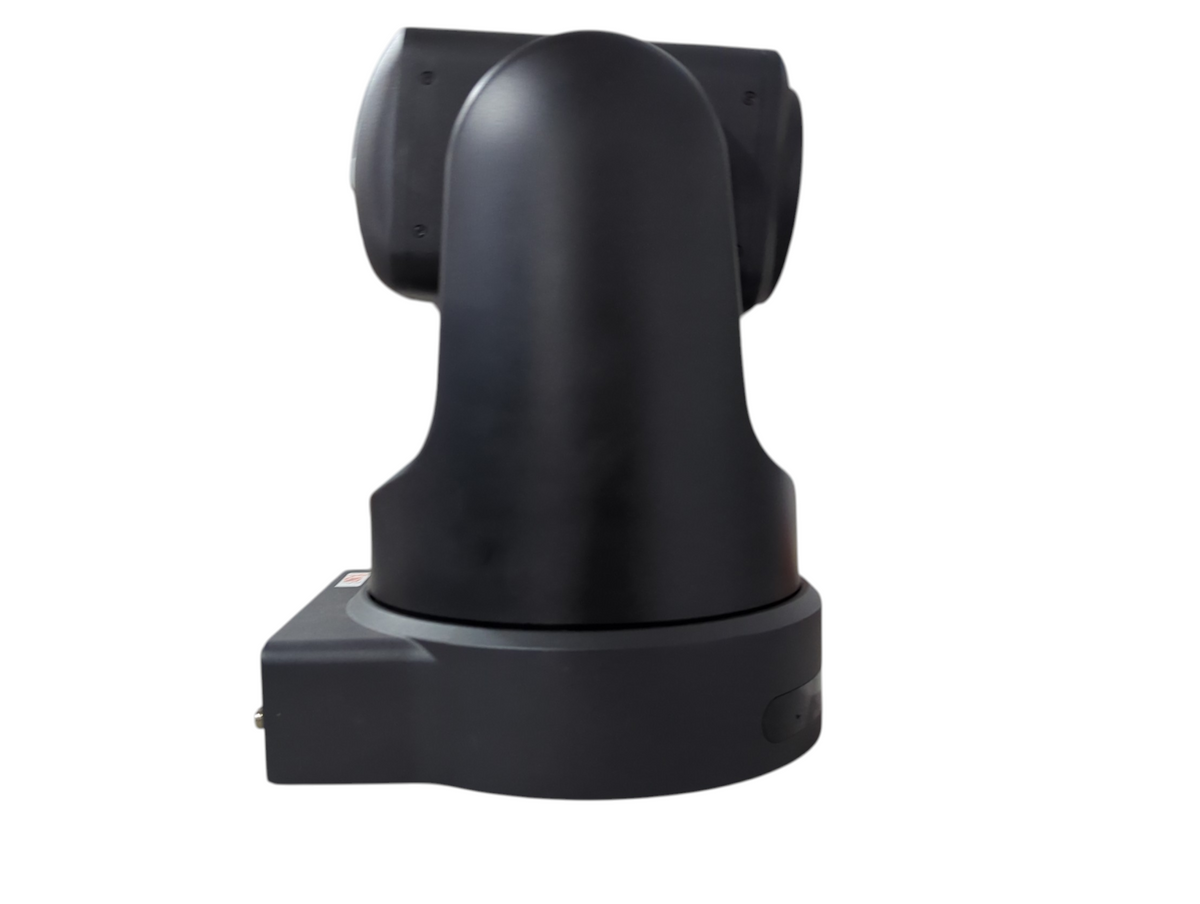

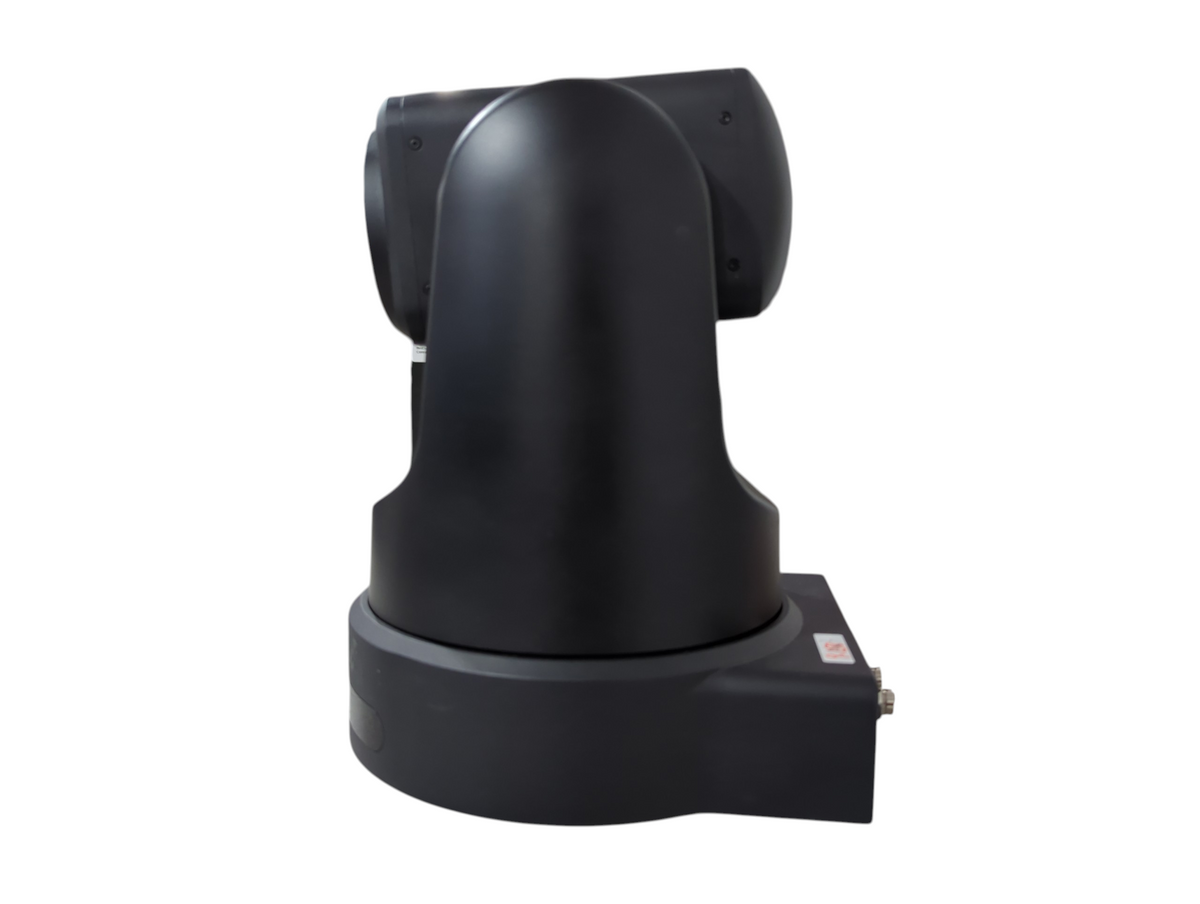

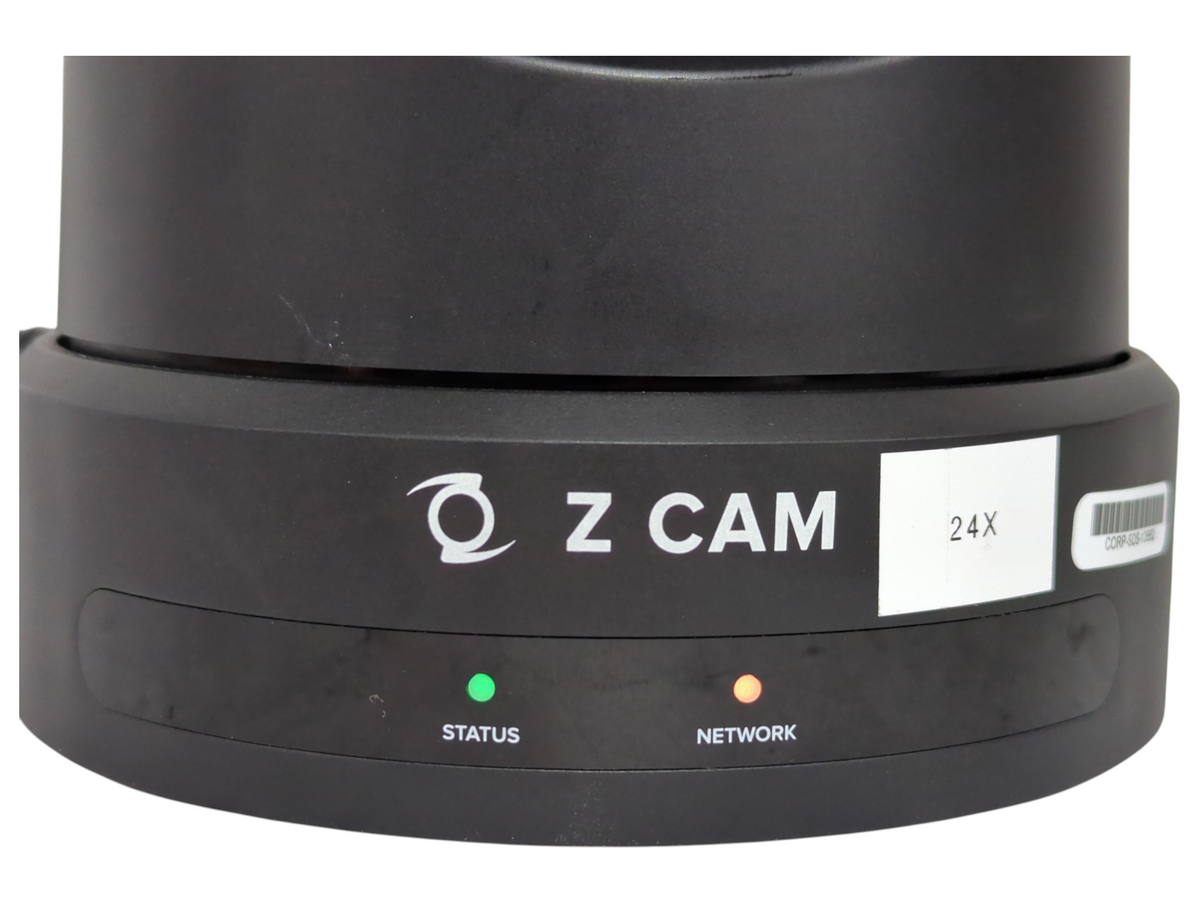

Z CAM P2-R1N Pan-Tilt-Zoom Camera

$1,100.00 -

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Z CAM P2-R1N is a professional 4K PTZ camera designed for live production, broadcasting, streaming, conferencing, education, houses of worship, events, and IP-based video workflows. It combines a large CMOS sensor, PDAF autofocus, powerful optical zoom, smooth motorized pan/tilt movement, AI auto-framing, and NDI|HX3 support. The P2-R1N is available in 18x and 24x optical-zoom versions. The 18x model uses a 1/1.3-inch CMOS sensor, while the 24x version uses a 1/1.5-inch sensor. Read more

Features

  • 4K UHD video up to 3840 × 2160 at 59.94/60 fps.
  • 1/1.3-inch CMOS sensor on the 18x model or 1/1.5-inch CMOS sensor on the 24x model.
  • 18x or 24x optical zoom, depending on version.
  • NDI|HX3 support for professional IP video production and network workflows.
  • Supports RTMP, RTMPS, RTSP, SRT, SSP, and NDI|HX3 streaming.
  • HDMI 2.0 output with 4K support.
  • 3G-SDI BNC output for professional HD video.

Business Financing Options Avaiable

View Available Financing

The Z CAM P2-R1N is a professional 4K PTZ camera designed for live production, broadcasting, streaming, conferencing, education, houses of worship, events, and IP-based video workflows. It combines a large CMOS sensor, PDAF autofocus, powerful optical zoom, smooth motorized pan/tilt movement, AI auto-framing, and NDI|HX3 support. The P2-R1N is available in 18x and 24x optical-zoom versions. The 18x model uses a 1/1.3-inch CMOS sensor, while the 24x version uses a 1/1.5-inch sensor. Read more

Features

  • 4K UHD video up to 3840 × 2160 at 59.94/60 fps.
  • 1/1.3-inch CMOS sensor on the 18x model or 1/1.5-inch CMOS sensor on the 24x model.
  • 18x or 24x optical zoom, depending on version.
  • NDI|HX3 support for professional IP video production and network workflows.
  • Supports RTMP, RTMPS, RTSP, SRT, SSP, and NDI|HX3 streaming.
  • HDMI 2.0 output with 4K support.
  • 3G-SDI BNC output for professional HD video.

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Z CAM P2-R1N Pan-Tilt-Zoom Camera

The Z CAM P2-R1N is a professional 4K PTZ camera designed for live production, broadcasting, streaming, video conferencing, education, corporate AV, worship, and remote-production environments. The camera combines a large-format CMOS sensor with a motorized optical zoom lens, phase-detection autofocus, and precision pan-and-tilt control. The P2-R1N is available in 18x and 24x optical-zoom configurations, providing flexible framing from wide establishing shots to detailed long-distance close-ups.

The 18x version uses a 1/1.3-inch CMOS sensor and provides a 36–648 mm 35mm-equivalent focal-length range, while the 24x version uses a 1/1.5-inch sensor with a 32–768 mm equivalent range. Both configurations support UHD 4K video at up to 59.94/60 fps through HDMI, IP, and USB-C outputs. Phase-detection autofocus provides rapid subject acquisition, while electronic image stabilization and Z CAM color processing support consistent image quality during remotely operated production.

The P2-R1N is particularly suited to IP-based production workflows, supporting NDI|HX3 alongside RTMP, RTMPS, RTSP, SRT, SSP, and UVC streaming technologies. It provides HDMI 2.0, 3G-SDI, Gigabit Ethernet/IP, and USB-C video connectivity, as well as Genlock and VISCA control interfaces. Integrated AI auto-framing and intelligent tracking can automatically maintain subject composition, while Free-D support enables integration with AR/VR and virtual-production systems.

Precision PTZ operation provides 350° of pan movement and 240° of tilt movement, with adjustable pan and tilt speeds from 0.1° to 180° per second and positioning accuracy down to 0.01°. The camera supports IR, VISCA over RS-422, VISCA over IP, web-client, and USB control, with programmable preset positions and an integrated tally light. PoE+ operation allows power to be delivered over compatible Ethernet infrastructure, while the fanless design and compact black enclosure make the P2-R1N suitable for permanent installations and mobile professional production systems.

Key Features

  • 4K UHD video up to 3840 × 2160 at 59.94/60 fps.
  • 1/1.3-inch CMOS sensor on the 18x model or 1/1.5-inch CMOS sensor on the 24x model.
  • 18x or 24x optical zoom, depending on version.
  • NDI|HX3 support for professional IP video production and network workflows.
  • Supports RTMP, RTMPS, RTSP, SRT, SSP, and NDI|HX3 streaming.
  • HDMI 2.0 output with 4K support.
  • 3G-SDI BNC output for professional HD video.

Already own this item and want to sell it?

Click here to sell your item

Z CAM P2-R1N Pan-Tilt-Zoom Camera Specs

Imaging
Sensor Type
1/1.3" CMOS
Horizontal Resolution
2160 TV Lines
Image Stabilization
E.I.S.
Focus System
PDAF / Manual
Built-In ND Filter
No

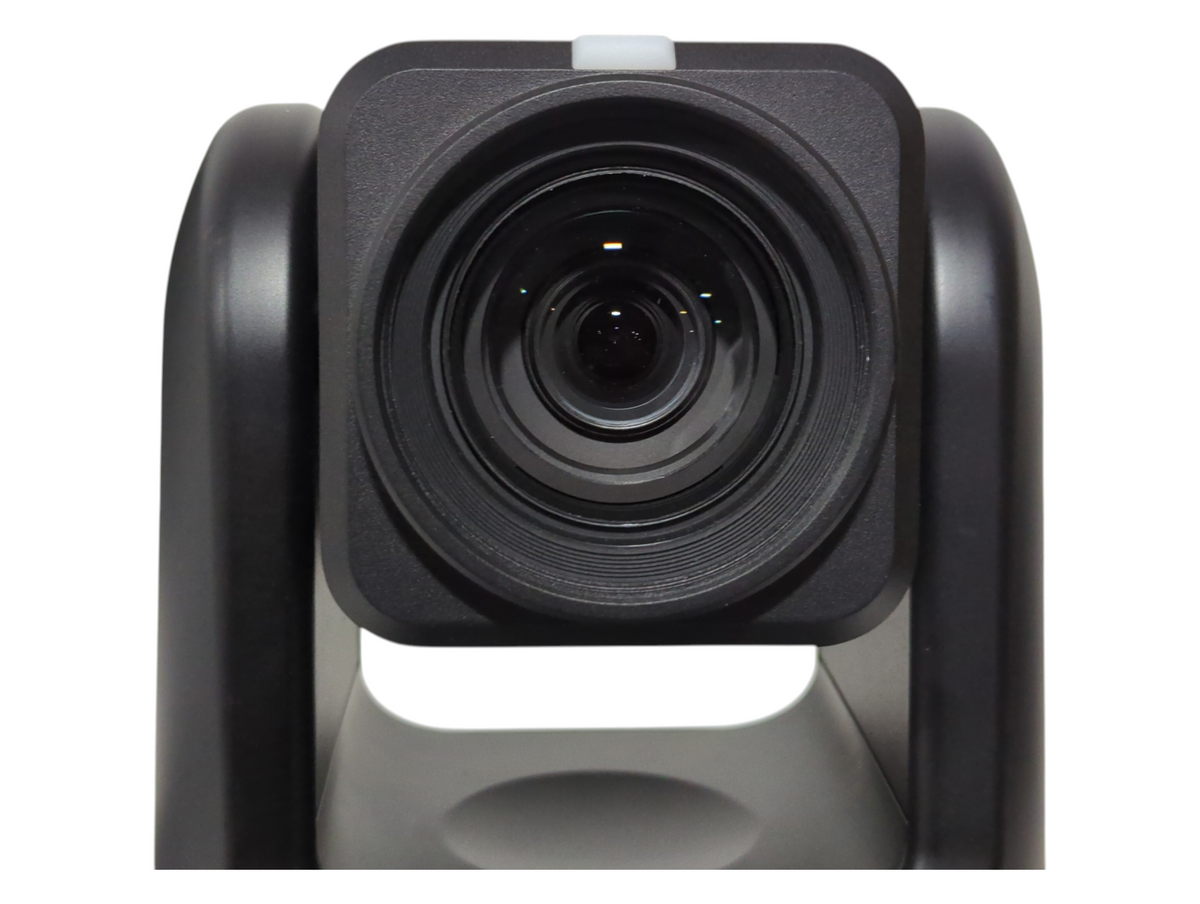

Lens — 18x Version
Spec Name
Value
Focal Length
36–648 mm
35mm Equivalent
36–648 mm
Optical Zoom
18x
Digital Zoom
36x
Maximum Aperture
f/1.6–f/3.5 to f/11
Horizontal FOV
51–3.6°
Minimum Focus Distance
9.5 mm Wide / 171 mm Tele
Lens — 24x Version
Focal Length
32–768 mm
35mm Equivalent
32–768 mm
Optical Zoom
24x
Digital Zoom
48x
Maximum Aperture
f/1.6–f/4.5 to f/7.1
Horizontal FOV
60–3.2°
Minimum Focus Distance
6.5 mm Wide / 156 mm Tele
Video
Maximum Resolution
3840 x 2160
Maximum Frame Rate
59.94/60 fps
4K Frame Rates
23.98 / 24 / 25 / 29.97 / 50 / 59.94 fps
1080p Frame Rates
23.98 / 24 / 25 / 29.97 / 50 / 59.94 fps
1080i Frame Rates
50 / 59.94 fps
Internal Recording
1080p up to 120 fps
Internal Codec
H.265
Color Depth
8-bit
IP & Streaming
NDI Standard
NDI
Streaming Protocols
RTMP / RTMPS / RTSP / SRT / SSP / UVC
Maximum IP Resolution
UHD 4K
Maximum IP Frame Rate
59.94 fps
Ethernet Speed
1 Gbps
PTZ Control
Pan Range
350°
Pan Range
±175°
Tilt Range
240°
Tilt Range
-30° to +210°
Pan Speed
0.1–180°/sec
Tilt Speed
0.1–180°/sec
Movement Accuracy
0.01°
CGI Presets
256
VISCA Presets
100
IR Presets
9

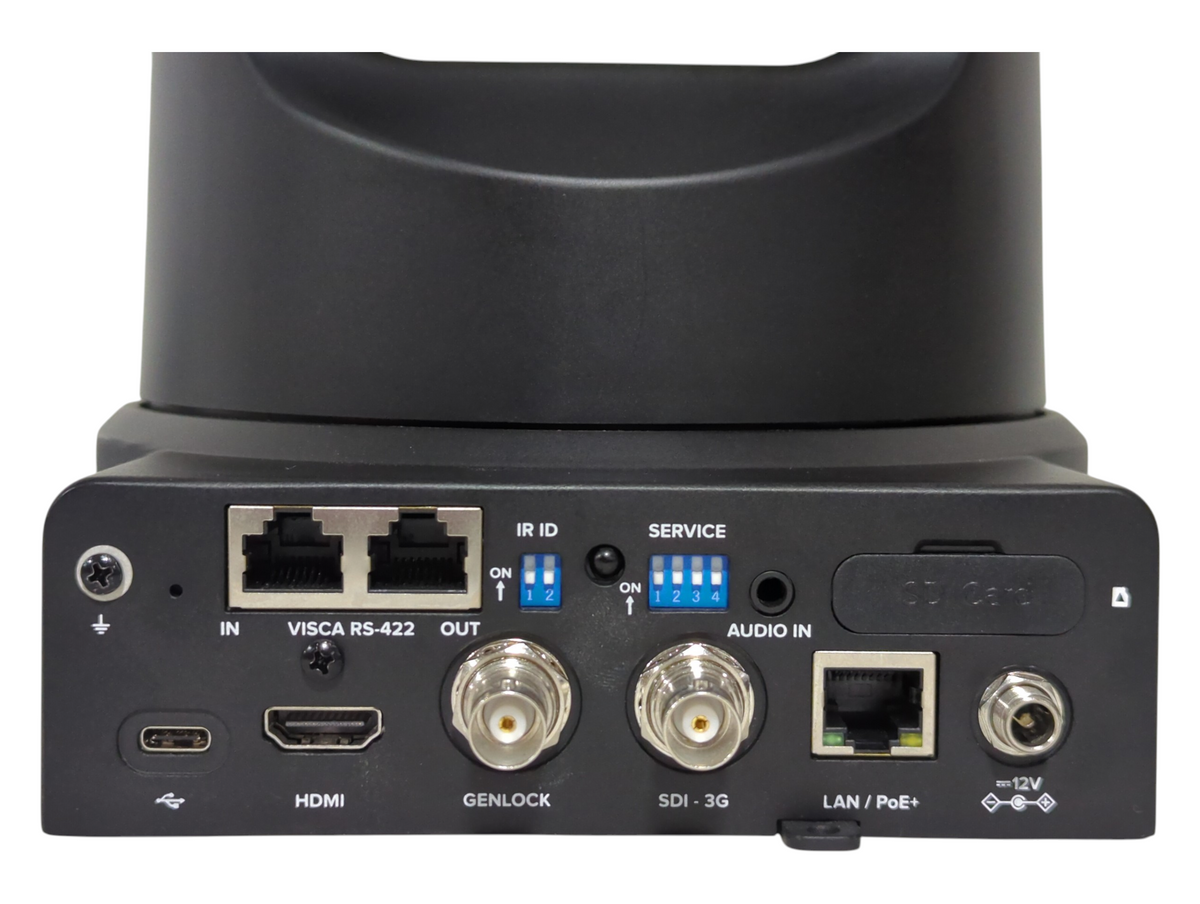

Video Interfaces
HDMI Version
2.0
HDMI Output
1
SDI Output
1 x 3G-SDI
IP Output
1 x RJ45
USB Output
1 x USB-C 3.0 Gen 1
Genlock Input
1 x BNC
Control & Audio
VISCA Input
1 x RJ45
VISCA Output
1 x RJ45
Audio Input
3.5 mm TRS Stereo
Tally Light
Yes
Free-D
Yes
AI Auto Framing
Yes
Power
DC Input
12 V
Maximum Power Consumption
18 W
PoE Standard
IEEE 802.3at
Power Input
1 x DC Barrel

Key Features

  • 4K UHD video up to 3840 × 2160 at 59.94/60 fps.
  • 1/1.3-inch CMOS sensor on the 18x model or 1/1.5-inch CMOS sensor on the 24x model.
  • 18x or 24x optical zoom, depending on version.
  • NDI|HX3 support for professional IP video production and network workflows.
  • Supports RTMP, RTMPS, RTSP, SRT, SSP, and NDI|HX3 streaming.
  • HDMI 2.0 output with 4K support.
  • 3G-SDI BNC output for professional HD video.
