TANNOY IW 4DC-WH 2 Way 4” Dual Concentric In-Wall Loudspeaker (White)



Out of stock

You must register to use the waitlist feature. Please login or create an account
SKU: IW 4DC-WH Categories: , Tags: , , Brand:

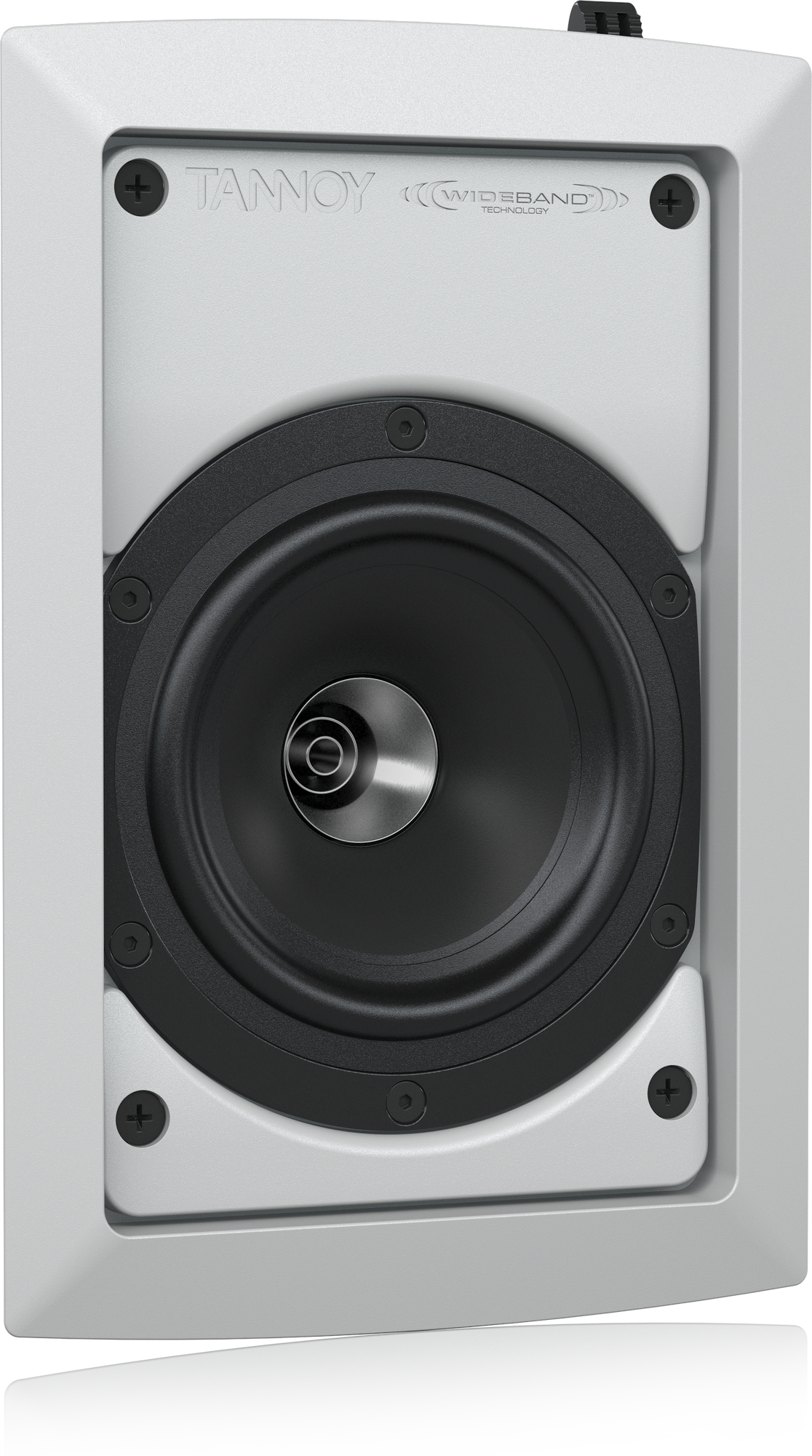

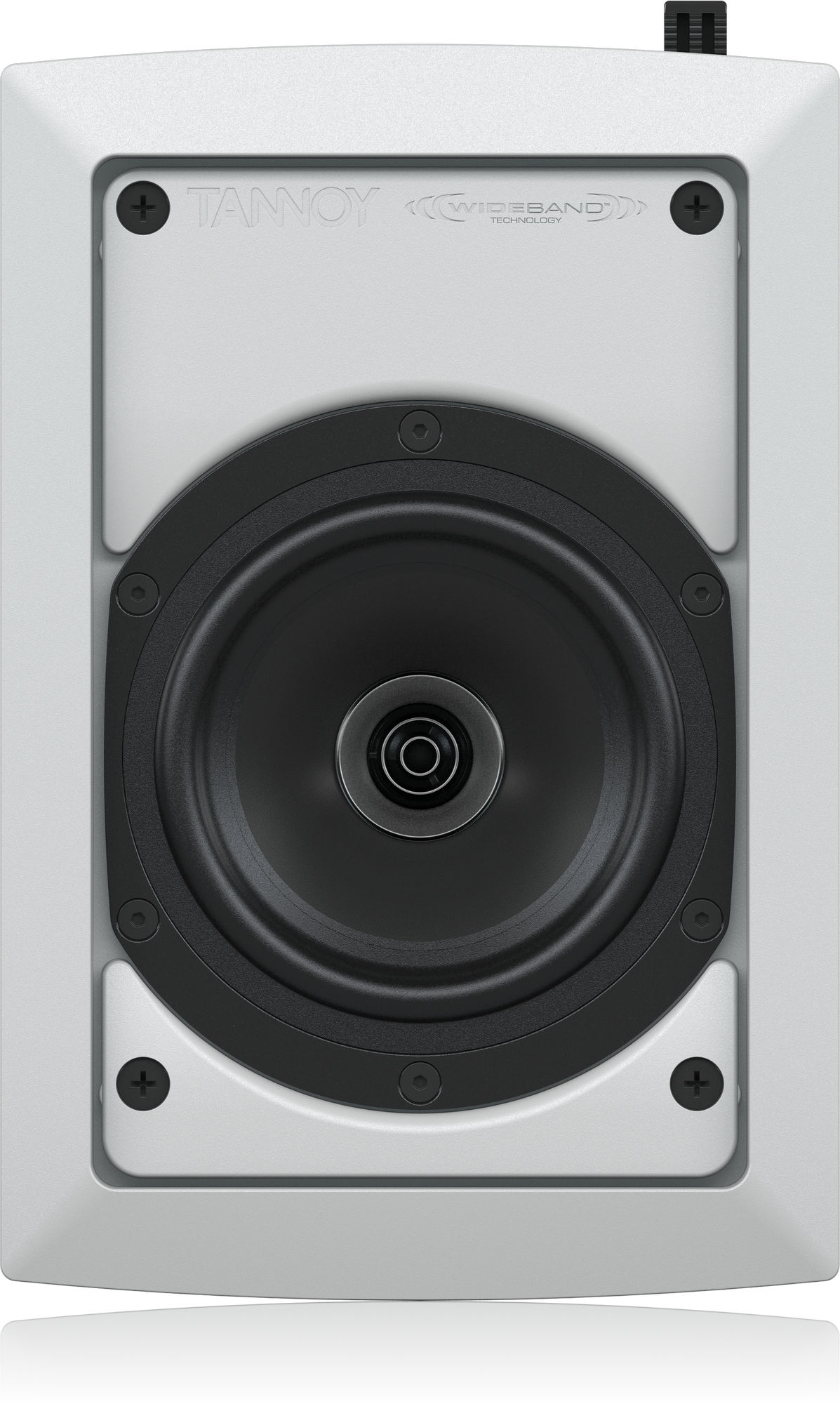

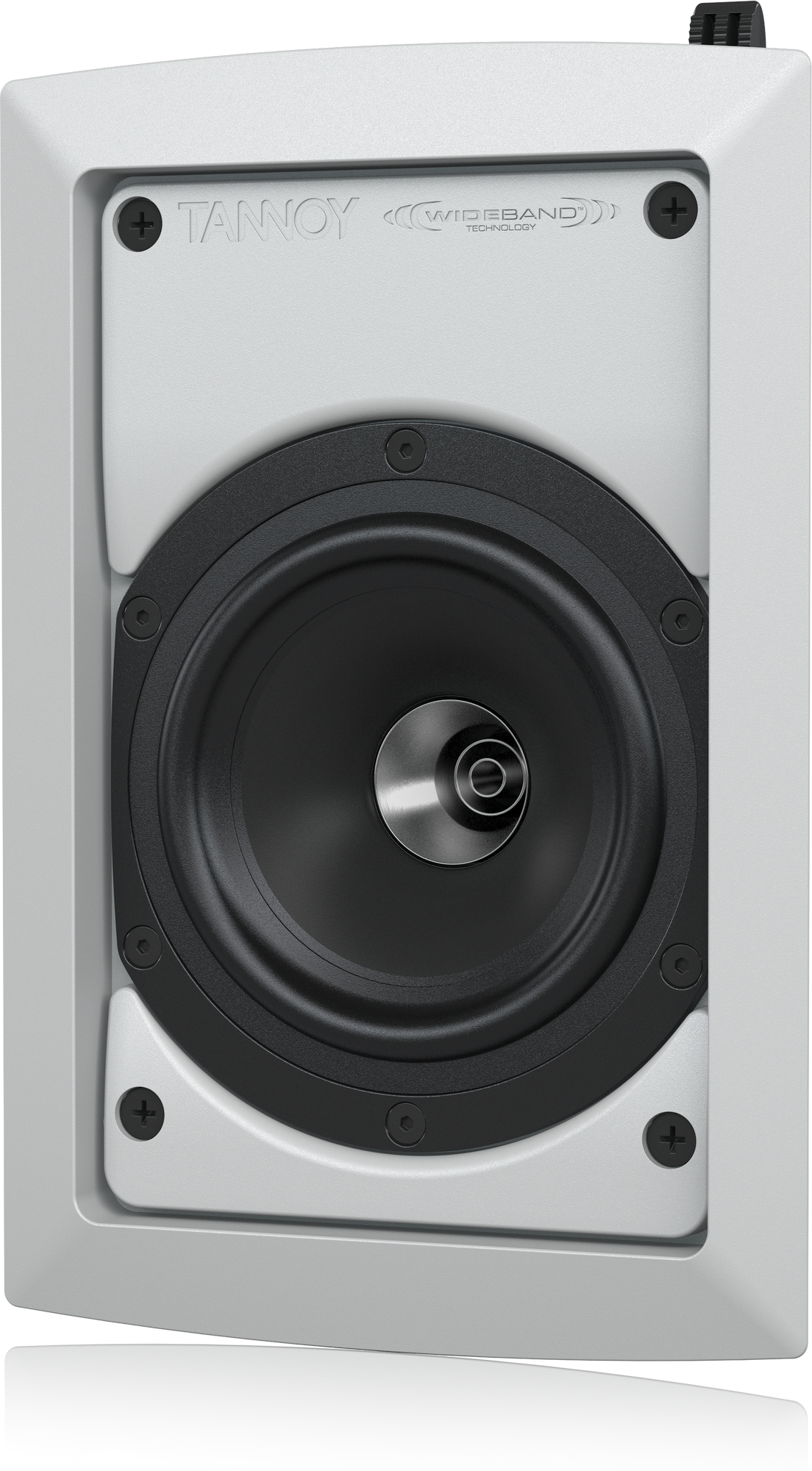

The Tannoy iW 4DC is a full bandwidth in wall speaker system, using a 100 mm (4.00″) Tannoy Dual Concentric point source, constant directivity drive unit, designed for installation into standard stud partition wall systems. It may also be used in cavity wall installations constructed with standard thickness drywall as well as a wide range of other wall construction types with a surface thickness of up to 25 mm (1.00″). Featuring a wide bandwidth frequency response and very low distortion, the iW 4DC is also equipped with dynamic high frequency protection. This compact unit is specifically designed for applications requiring the combination of premium sonic quality for music and speech reinforcement and exceptional reliability and intelligibility. The Tannoy Dual Concentric drive unit comprises a multi fibre paper pulp mid bass cone and a 19 mm (0.75″) ferrofluid cooled, titanium dome HF unit with neodymium magnet system. The mid-bass and tweeter sections of this constant directivity driver are coincidentally aligned to a true point source; ensuring a wide and controlled dispersion for optimum coverage.


  • 2 way compact wall mount loudspeaker for multi-zone music and AV systems
  • Dual Concentric driver technology provides class-leading coherence and point-source imaging
  • 4" Dual Concentric driver delivers unrivalled musical articulation and speech intelligibility
  • 60 Watts continuous, 240 Watts peak power handling delivers exceptional dynamics and realism
  • Highly efficient 88 dB/Watt sensitivity
  • WideBand* tweeter technology
  • Robust construction and performance allows use within commercial environments
  • Ideal for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls and bars.

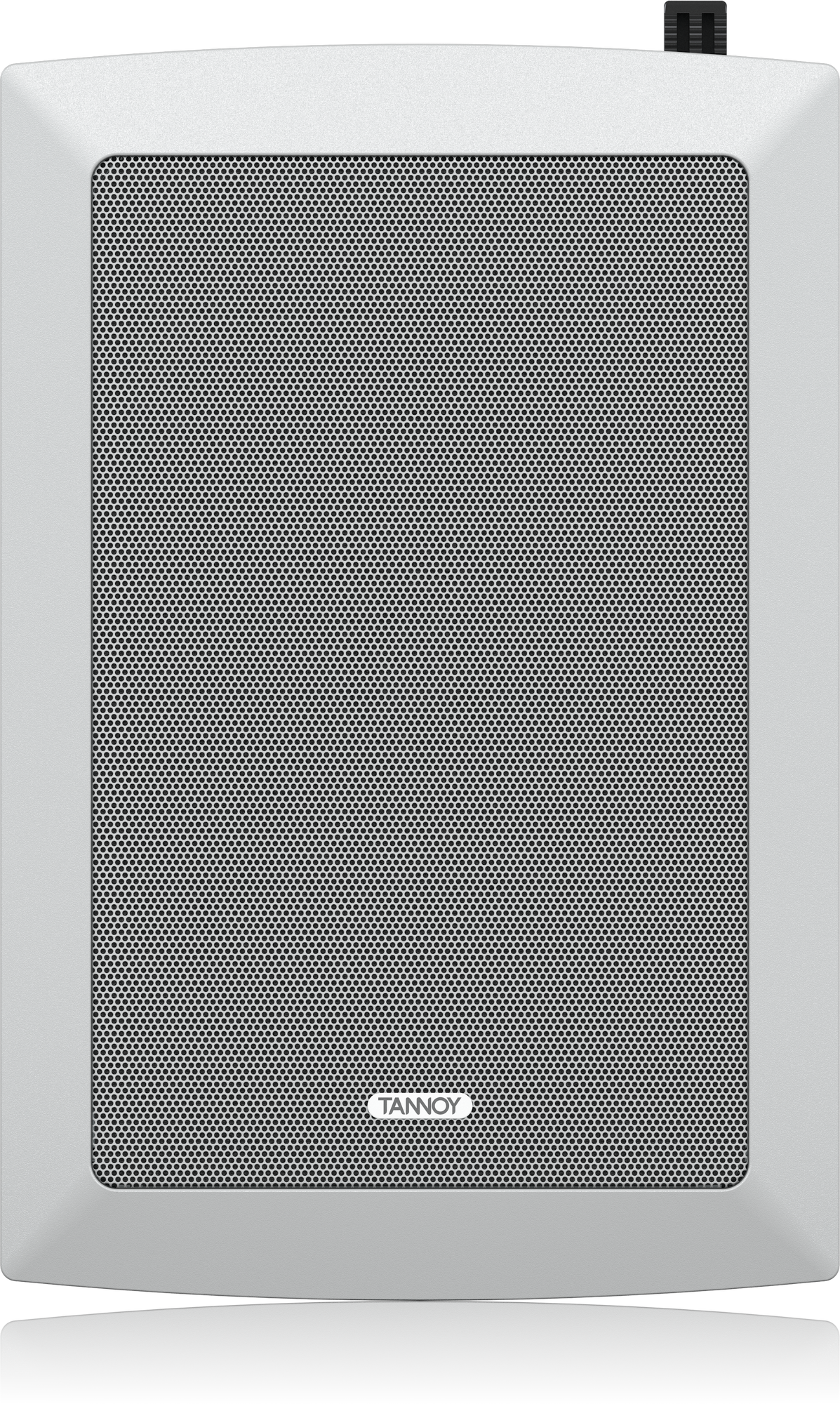

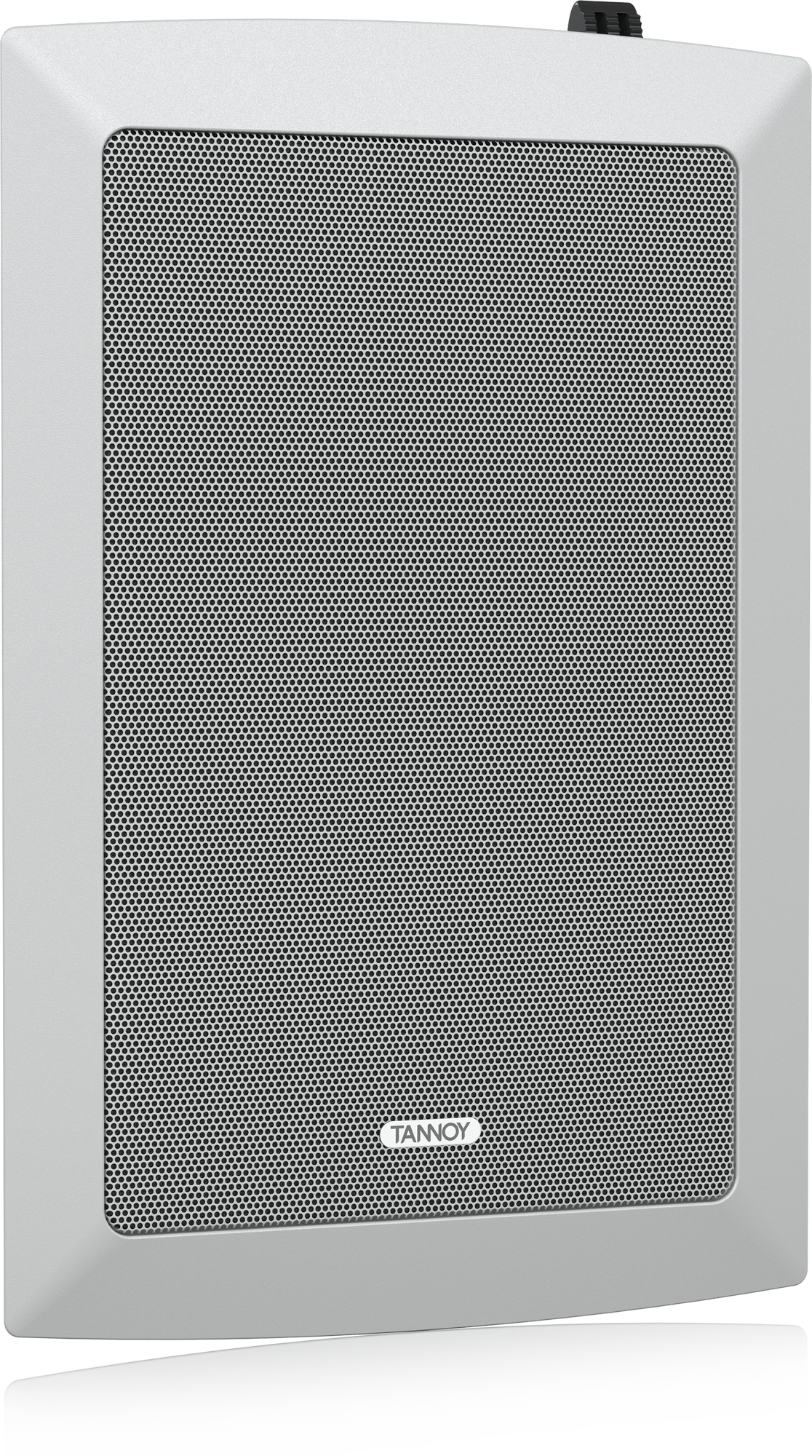

  • Weather resistant steel mesh grille to protect driver
  • Semi matt white finish fits unobtrusively in any environment
  • Both baffle and grille may be painted to match decor

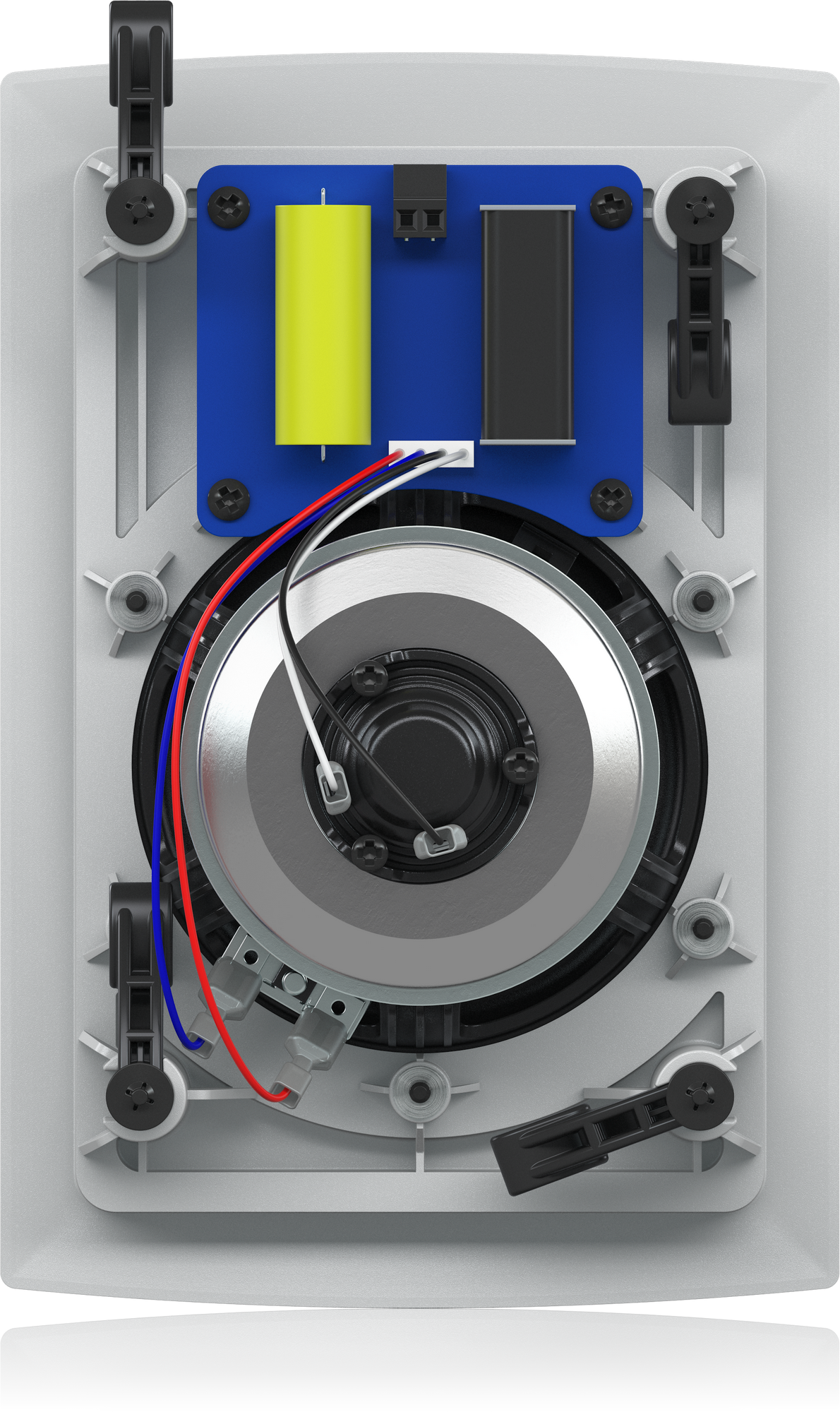

  • Innovative self-aligning clamping system for easy installation into standard stud partition wall
  • Screw terminal connections aid installation
  • Tannoy - Over 90 years of British sound heritage and innovation

Additional information

Weight 5 lbs
Dimensions 4 × 4 × 10 in
